Changing LandModel Parameterizations

In the Canopy, soil, and snow tutorial, we ran the integrated LandModel at a Fluxnet site using all of the default parameterizations and parameters.

In two other tutorials (Changing soil parameterizations and Changing canopy parameterizations) we explored how to change the parameterizations of the standalone soil and canopy models, respectively.

This tutorial will combine these two streams of work to set up a LandModel with non-default parameterizations within the soil and canopy components.

This time, we'll use non-default parameterizations for one canopy component:

  • radiative transfer: change from the default TwoStreamModel to BeerLambertModel

and one snow component:

  • snow albedo: change from the default ConstantAlbedo to ZenithAngleAlbedoModel

Fluxnet simulations with the full land model: snow, soil, canopy

As in the previous LandModel tutorial, we'll run at the Niwot Ridge site. The forcing data was obtained from AmeriFlux FLUXNET: https://doi.org/10.17190/AMF/1871141

Citation: Peter D. Blanken, Russel K. Monson, Sean P. Burns, David R. Bowling, Andrew A. Turnipseed (2022), AmeriFlux FLUXNET-1F US-NR1 Niwot Ridge Forest (LTER NWT1), Ver. 3-5, AmeriFlux AMP, (Dataset). https://doi.org/10.17190/AMF/1871141

Preliminary Setup

using Dates
import ClimaParams as CP
using ClimaDiagnostics
using ClimaLand
using ClimaLand.Domains: Column, obtain_surface_domain
using ClimaLand.Simulations
using ClimaLand.Snow
using ClimaLand.Canopy
import ClimaLand.Parameters as LP
using DelimitedFiles
import ClimaLand.FluxnetSimulations as FluxnetSimulations
using CairoMakie, ClimaAnalysis, GeoMakie, Printf, StatsBase
import ClimaLand.LandSimVis as LandSimVis;

Define the floating point precision desired (64 or 32 bit), and get the parameter set holding constants used across CliMA Models.

const FT = Float32;
earth_param_set = LP.LandParameters(FT);
default_params_filepath =
    joinpath(pkgdir(ClimaLand), "toml", "default_parameters.toml")
toml_dict = LP.create_toml_dict(FT, default_params_filepath);

We will use prescribed atmospheric and radiative forcing from the US-NR1 tower. We also read in the MODIS LAI and let that vary in time in a prescribed manner.

site_ID = "US-NR1";
site_ID_val = FluxnetSimulations.replace_hyphen(site_ID);

Get the latitude and longitude in degrees, as well as the time offset in hours of local time from UTC

(; time_offset, lat, long) =
    FluxnetSimulations.get_location(FT, Val(site_ID_val));

Get the height of the sensors in m

(; atmos_h) = FluxnetSimulations.get_fluxtower_height(FT, Val(site_ID_val));

Set a start and stop date of the simulation in UTC, as well as a timestep in seconds

(start_date, stop_date) =
    FluxnetSimulations.get_data_dates(site_ID, time_offset);
Δt = 450.0;

Setup the domain for the model. This corresponds to a column of 2m in depth, with 10 equally spaced layers. The lat and long are provided so that we can look up default parameters for this location using the default ClimaLand parameter maps.

zmin = FT(-2) # in m
zmax = FT(0) # in m
domain = Column(; zlim = (zmin, zmax), nelements = 10, longlat = (long, lat));

Forcing data for the site - this uses our interface for working with Fluxnet data

forcing = FluxnetSimulations.prescribed_forcing_fluxnet(
    site_ID,
    lat,
    long,
    time_offset,
    atmos_h,
    start_date,
    earth_param_set,
    FT,
);

LAI for the site - this uses our interface for working with MODIS data.

LAI = ClimaLand.Canopy.prescribed_lai_modis(
    domain.space.surface,
    start_date,
    stop_date,
);

Setup the integrated model

First, we need to set up the component models we won't be using the defaults for. Since we are constructing these outside of the LandModel constructor, we need to provide some additional inputs that were omitted in the previous LandModel tutorial:

  • surface_domain: the surface of this simulation domain, which the snow and canopy models will use
  • prognostic_land_components: the prognostic land components, which must be consistent across all components
  • ground: the canopy ground conditions, which are prognostic since we're running with the soil
surface_domain = obtain_surface_domain(domain);
prognostic_land_components = (:canopy, :snow, :soil, :soilco2);
ground = ClimaLand.PrognosticGroundConditions{FT}();

First, we will set up the snow model. We will use the ZenithAngleAlbedoModel for the snow albedo parameterization. This parameterization uses the zenith angle of the sun to determine the albedo, as opposed to the default ConstantAlbedoModel which uses a temporally and spatially constant snow albedo.

α_0 = FT(0.6) # parameter controlling the minimum snow albedo
Δα = FT(0.06) # parameter controlling the snow albedo when θs = 90∘
k = FT(2) # rate at which albedo drops to its minimum value with zenith angle
α_snow = Snow.ZenithAngleAlbedoModel(α_0, Δα, k);

Now we can create the SnowModel model with the specified snow albedo parameterization.

snow = Snow.SnowModel(
    FT,
    surface_domain,
    forcing,
    toml_dict,
    Δt;
    prognostic_land_components,
    α_snow,
);

Next, let's set up the canopy model using the BeerLambertModel radiative transfer parameterization with custom parameters. We already did this in the Changing canopy parameterizations tutorial, so it should be familiar. In that example we showed three different ways to construct the BeerLambertModel. Here, we will use the third method, which takes the parameters object directly.

G_Function = Canopy.ConstantGFunction(FT(0.5)); # leaf angle distribution value 0.5
α_PAR_leaf = 0.2; # albedo in the PAR band
α_NIR_leaf = 0.3; # albedo in the NIR band
Ω = 1; # clumping index
radiative_transfer_parameters =
    Canopy.BeerLambertParameters(FT; G_Function, α_PAR_leaf, α_NIR_leaf, Ω);
radiative_transfer = Canopy.BeerLambertModel(radiative_transfer_parameters);

Now we can create the CanopyModel model with the specified radiative transfer parameterizations passed as keyword arguments.

(; atmos, radiation) = forcing;
canopy = Canopy.CanopyModel{FT}(
    surface_domain,
    (; atmos, radiation, ground),
    LAI,
    toml_dict;
    prognostic_land_components,
    radiative_transfer,
);

Now we can construct the integrated LandModel. Since we want to use the defaults for the soil model, we don't need to provide anything for it. For the canopy and snow models, we'll provide the models we just set up.

land_model = LandModel{FT}(forcing, LAI, toml_dict, domain, Δt; snow, canopy);
set_ic! = FluxnetSimulations.make_set_fluxnet_initial_conditions(
    site_ID,
    start_date,
    time_offset,
    land_model,
);
output_vars = ["swu", "lwu", "shf", "lhf", "swe", "swc", "si"]
diagnostics = ClimaLand.default_diagnostics(
    land_model,
    start_date;
    output_writer = ClimaDiagnostics.Writers.DictWriter(),
    output_vars,
    average_period = :hourly,
);

Choose how often we want to update the forcing.

data_dt = Second(FluxnetSimulations.get_data_dt(site_ID));
updateat = Array(start_date:data_dt:stop_date);

Now we can construct the simulation object and solve it.

simulation = Simulations.LandSimulation(
    start_date,
    stop_date,
    Δt, # seconds
    land_model;
    set_ic!,
    updateat,
    user_callbacks = (),
    diagnostics,
);
solve!(simulation);

Plotting results

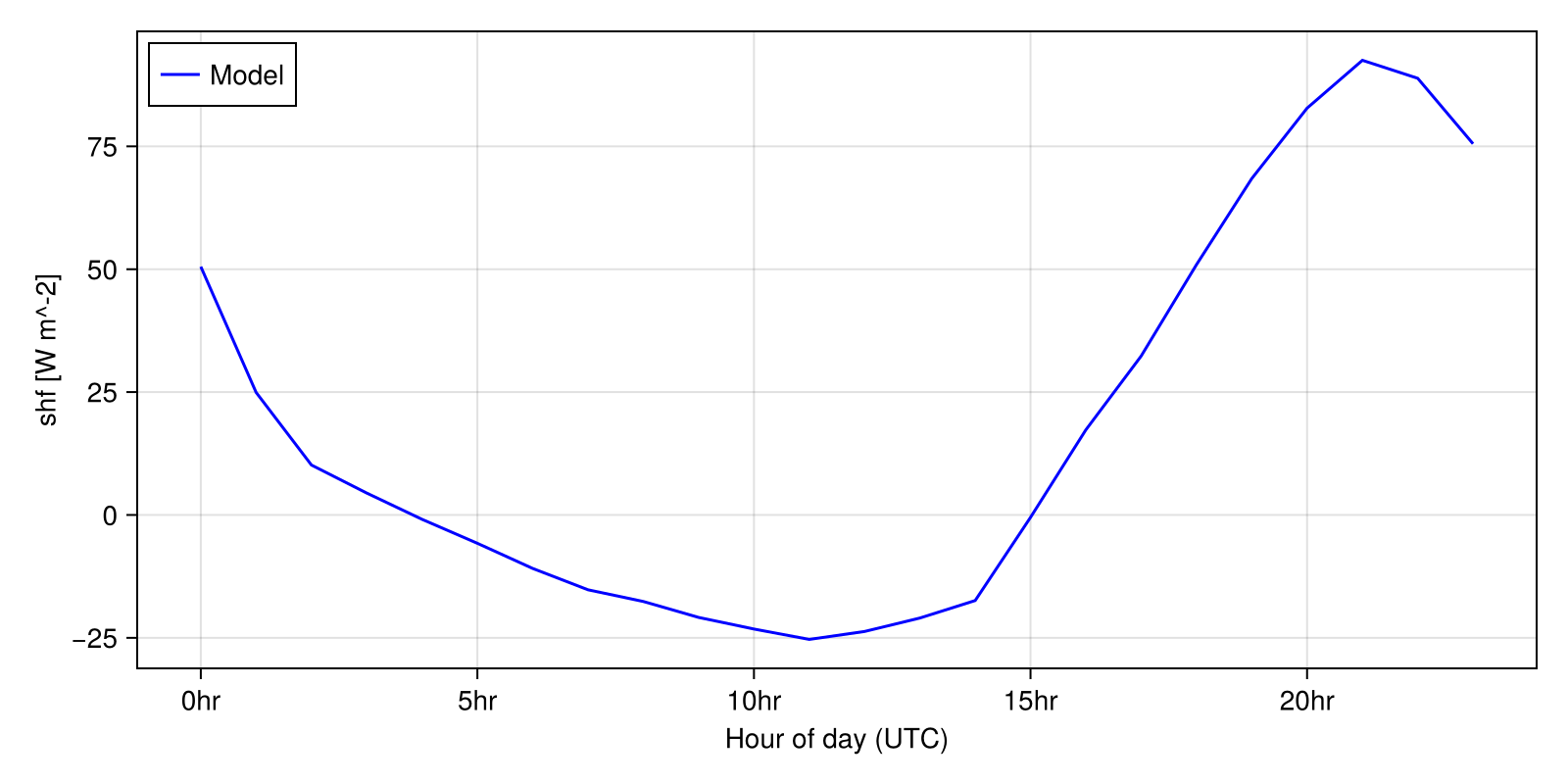

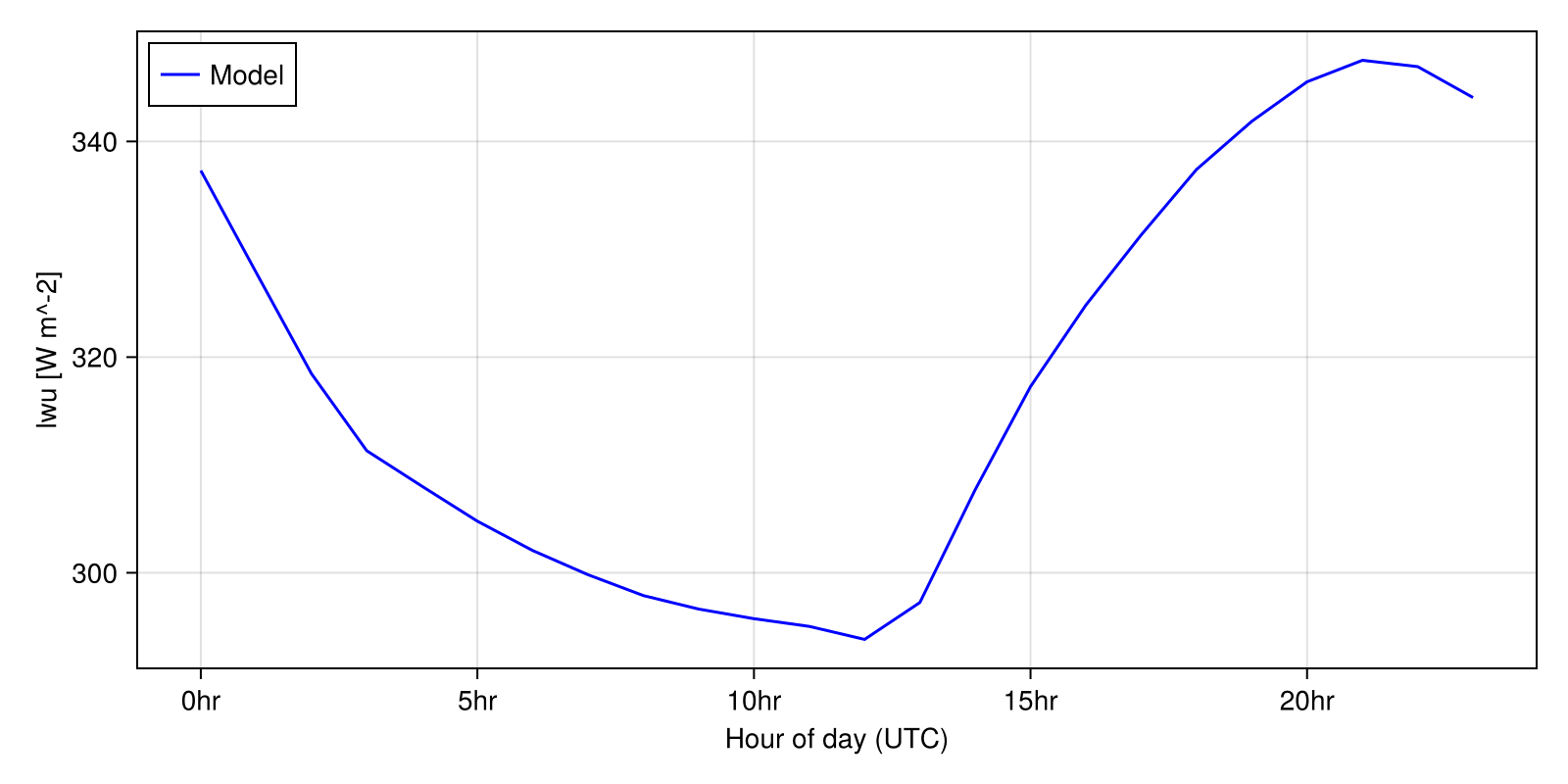

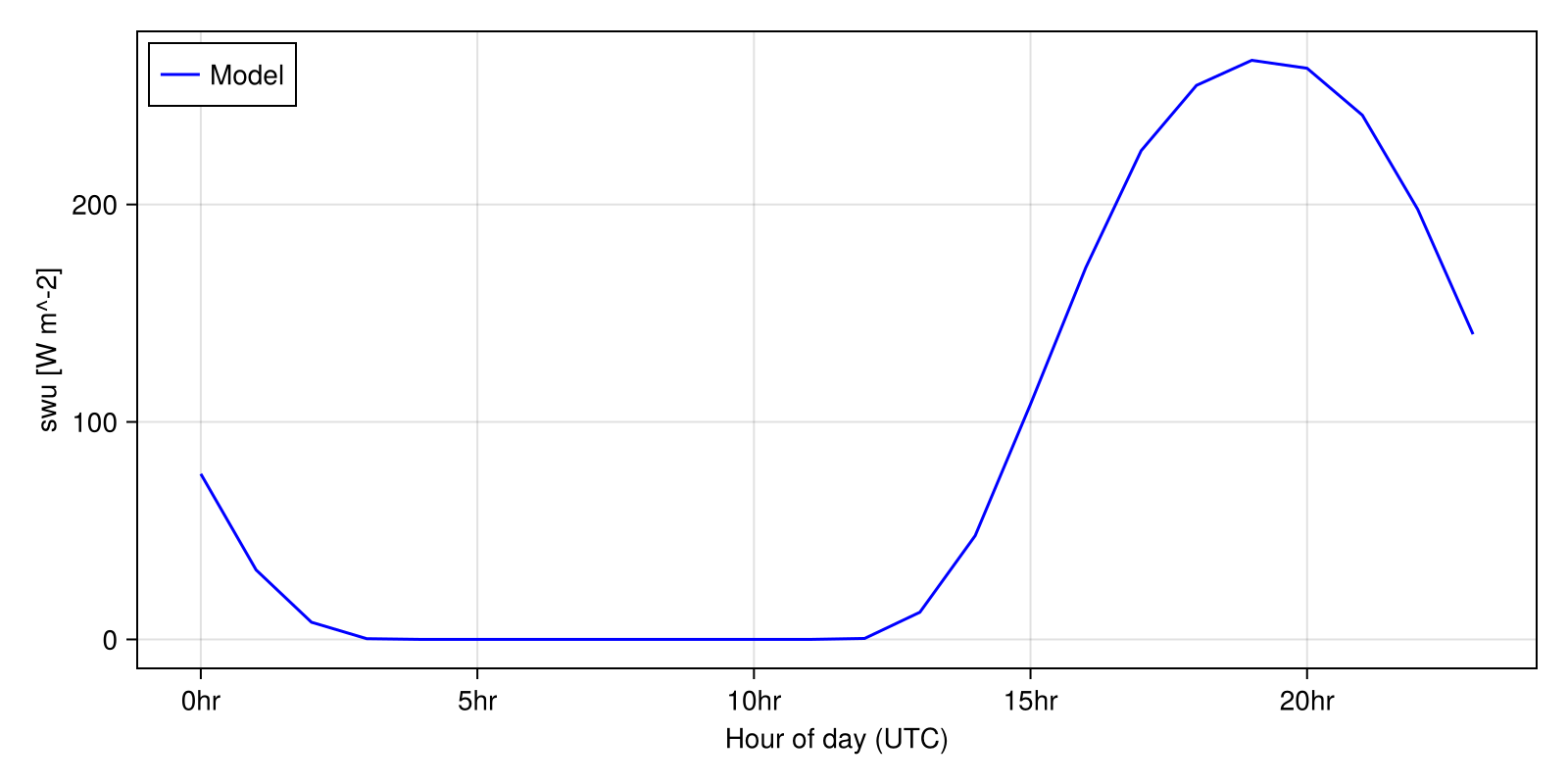

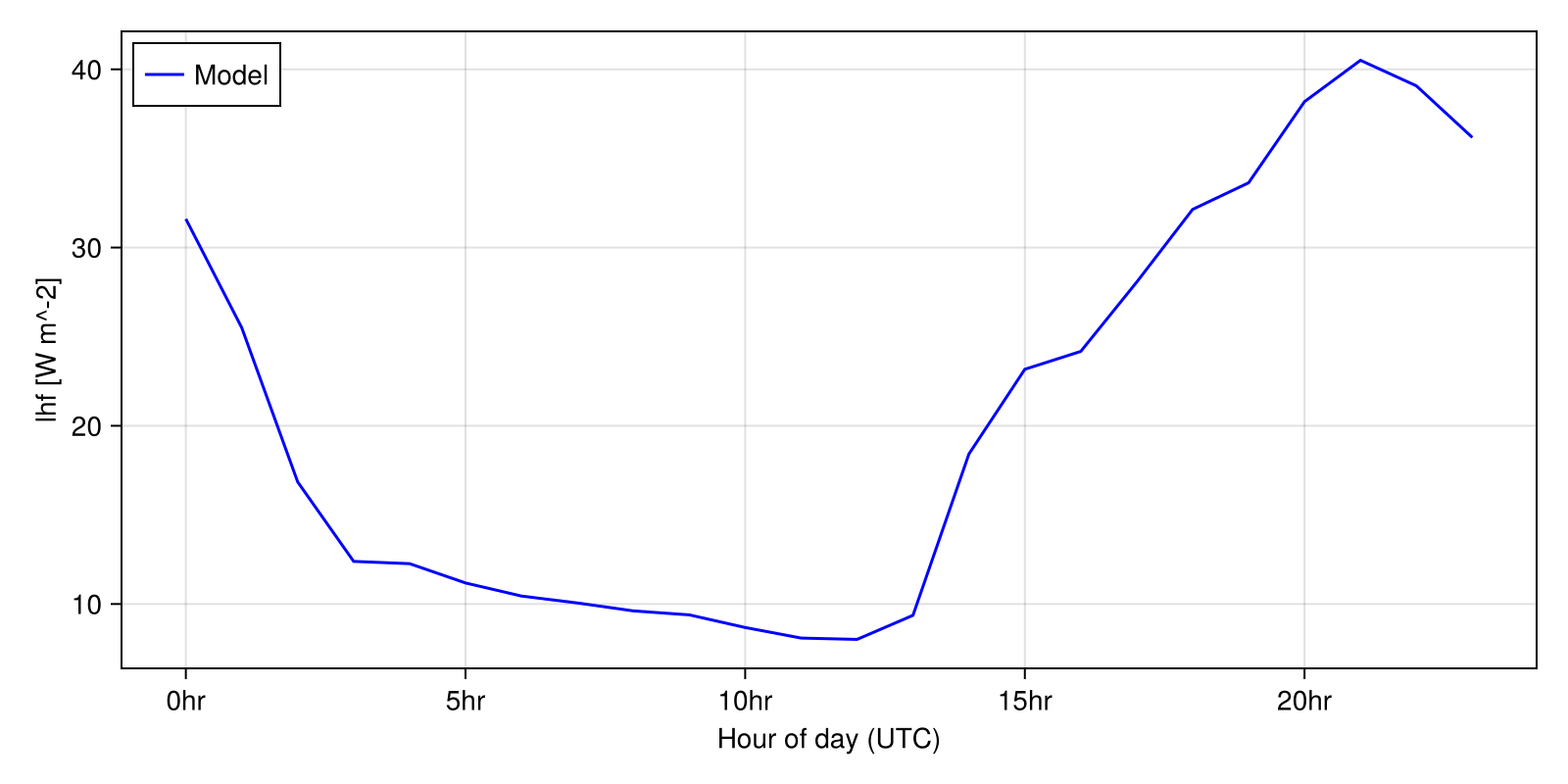

LandSimVis.make_diurnal_timeseries(
    simulation;
    short_names = ["shf", "lhf", "swu", "lwu"],
    spinup_date = start_date + Day(20),
    plot_stem_name = "US_NR1_diurnal_timeseries_parameterizations",
);

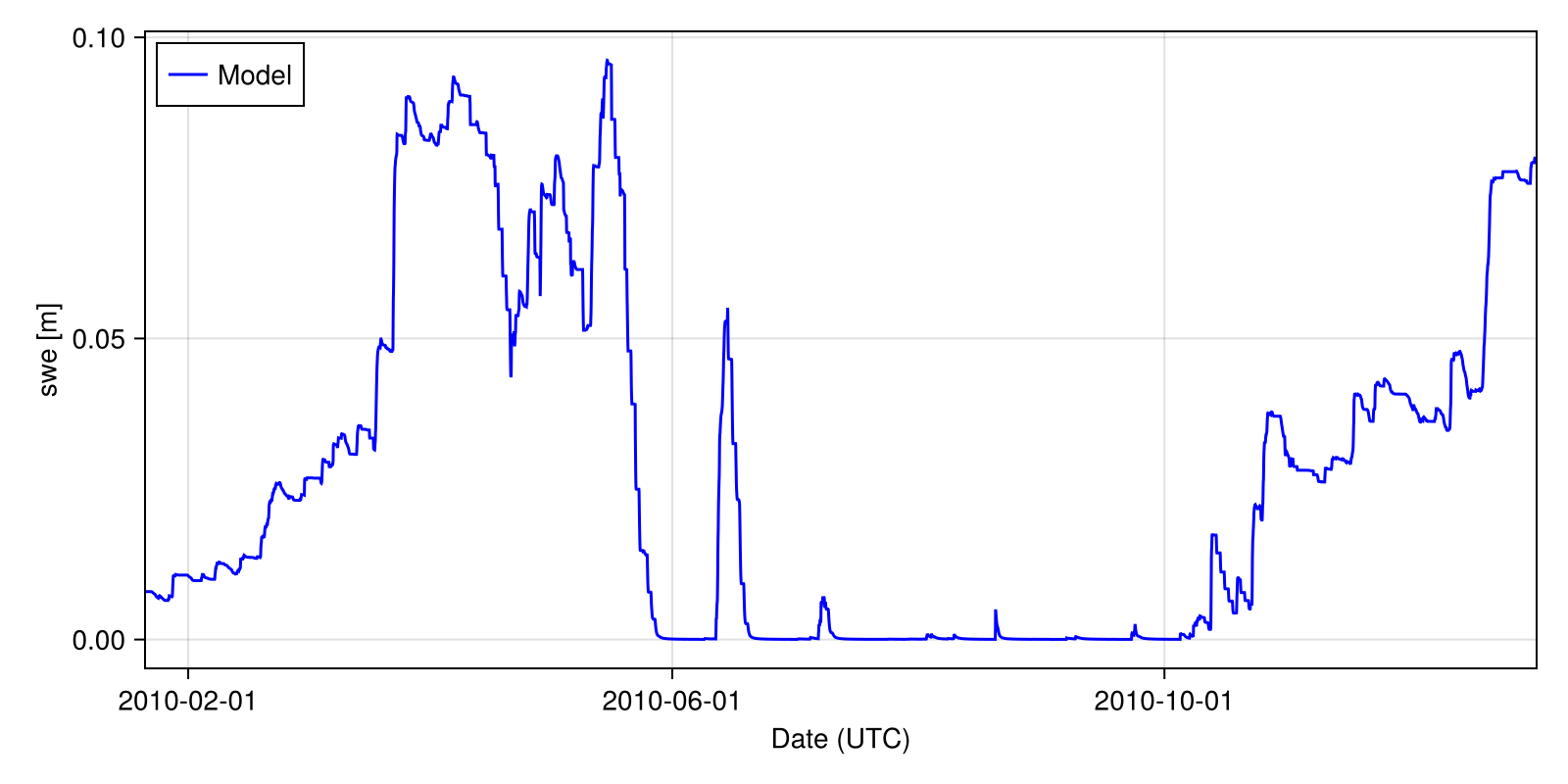

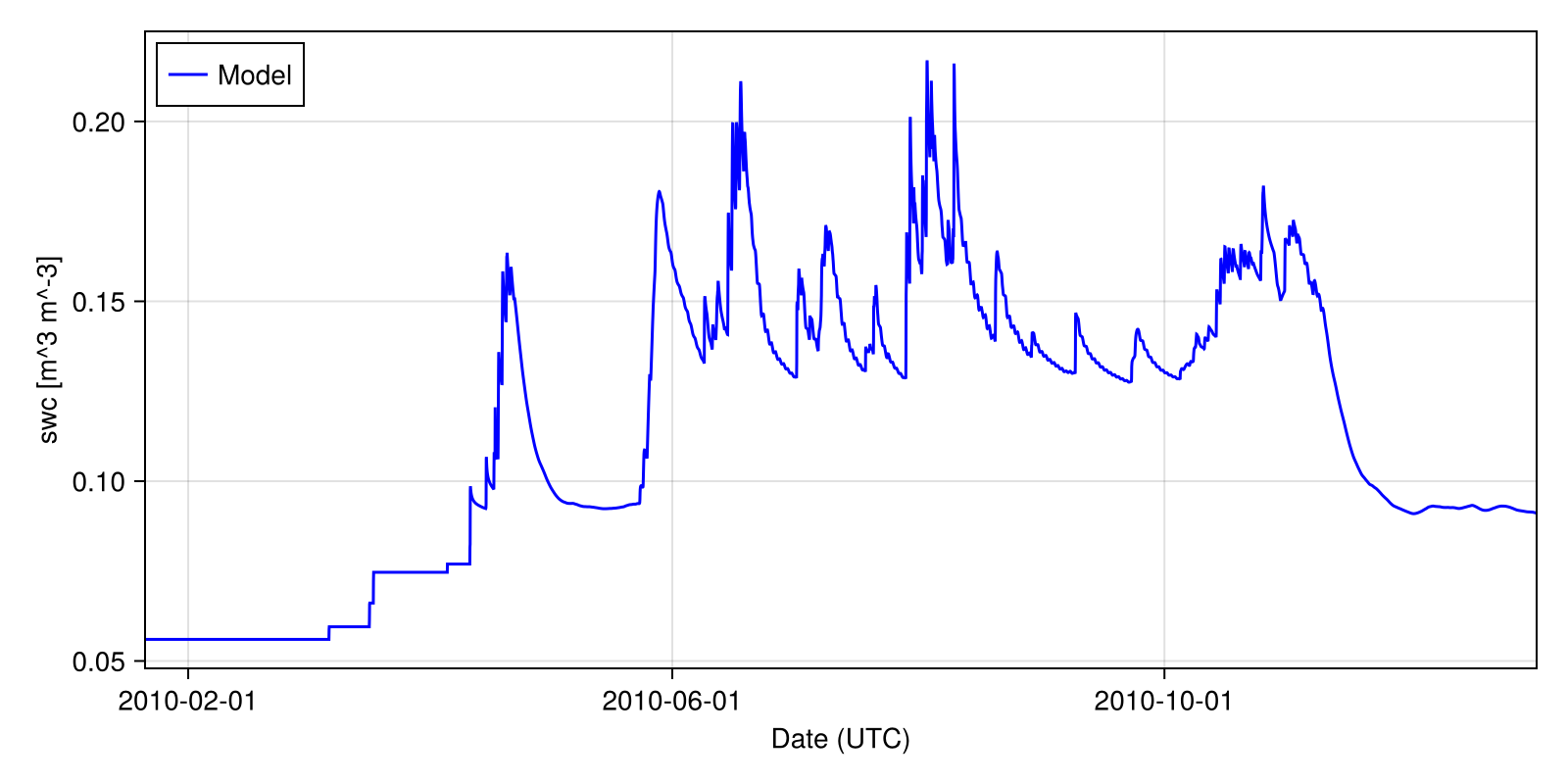

LandSimVis.make_timeseries(
    simulation;
    short_names = ["swc", "si", "swe"],
    spinup_date = start_date + Day(20),
    plot_stem_name = "US_NR1_timeseries_parameterizations",
);

Now you can compare these plots to those generated in the default LandModel Fluxnet tutorial. How are the results different? How are they the same?

This page was generated using Literate.jl.
