This sets up the simulation that mimicks the coarse sand lab experiment presented in Figures 7 and 8a of Lehmann, Assouline, Or (Phys Rev E 77, 2008).

using CairoMakie
import SciMLBase
import ClimaTimeSteppers as CTS
using Thermodynamics

using ClimaCore
import ClimaParams as CP
using SurfaceFluxes
using StaticArrays
using Dates
using DelimitedFiles: readdlm

using ClimaLand
using ClimaLand.Domains: Column
import ClimaLand.Simulations: LandSimulation, solve!
using ClimaLand.Soil
import ClimaLand
import ClimaLand.Parameters as LP
import SurfaceFluxes.Parameters as SFP

FT = Float64;
earth_param_set = LP.LandParameters(FT)
thermo_params = LP.thermodynamic_parameters(earth_param_set);

We model evaporation using Monin-Obukhov surface theory. In our soil model, it is not possible to set the initial condition corresponding to MOST fluxes, but not include radiative fluxes. This is because for land surface models does not make sense to include atmospheric forcing but not radiative forcing.

Because of this, we need to supply downward welling short and long wave radiation. We chose SW = 0 and LW = σT^4, in order to approximately balance out the blackbody emission of the soil which is accounted for by our model. Our assumption is that in the lab experiment there was no radiative heating or cooling of the soil.

Timestepping:

start_date = DateTime(2005)
end_date = start_date + Day(13)
dt = Float64(900.0)

SW_d = (t) -> 0
LW_d = (t) -> 301.15^4 * 5.67e-8
radiation = PrescribedRadiativeFluxes(
    FT,
    TimeVaryingInput(SW_d),
    TimeVaryingInput(LW_d),
    start_date,
);

Set up atmospheric conditions that result in the potential evaporation rate obsereved in the experiment. Some of these conditions are reported in the paper.

T_air = FT(301.15)
rh = FT(0.38)
esat = Thermodynamics.saturation_vapor_pressure(
    thermo_params,
    T_air,
    Thermodynamics.Liquid(),
)
e = rh * esat
q = FT(0.622 * e / (101325 - 0.378 * e))
precip = (t) -> 0.0
T_atmos = (t) -> T_air
u_atmos = (t) -> 0.44
q_atmos = (t) -> q
h_atmos = FT(0.1)
P_atmos = (t) -> 101325
gustiness = FT(1e-2)
atmos = PrescribedAtmosphere(
    TimeVaryingInput(precip),
    TimeVaryingInput(precip),
    TimeVaryingInput(T_atmos),
    TimeVaryingInput(u_atmos),
    TimeVaryingInput(q_atmos),
    TimeVaryingInput(P_atmos),
    start_date,
    h_atmos,
    earth_param_set;
    gustiness = gustiness,
);

Define the boundary conditions

top_bc = ClimaLand.Soil.AtmosDrivenFluxBC(atmos, radiation)
zero_water_flux = WaterFluxBC((p, t) -> 0)
zero_heat_flux = HeatFluxBC((p, t) -> 0)
boundary_fluxes = (;
    top = top_bc,
    bottom = WaterHeatBC(; water = zero_water_flux, heat = zero_heat_flux),
);

[ Info: Warning: No runoff model was provided; zero runoff generated.

Define the parameters n and alpha estimated by matching vG curve.

K_sat = FT(225.1 / 3600 / 24 / 1000)
vg_n = FT(8.91)#FT(6.34) optimized values by root finding
vg_α = FT(3) #FT(7.339) optimized values by root finding
hcm = vanGenuchten{FT}(; α = vg_α, n = vg_n)
ν = FT(0.43)
θ_r = FT(0.043)
S_s = FT(1e-3)
ν_ss_om = FT(0.0)
ν_ss_quartz = FT(1.0)
ν_ss_gravel = FT(0.0)
emissivity = FT(1.0)
z_0m = FT(1e-2)
z_0b = FT(1e-2)
d_ds = FT(0.01)
params = ClimaLand.Soil.EnergyHydrologyParameters(
    FT;
    ν,
    ν_ss_om,
    ν_ss_quartz,
    ν_ss_gravel,
    hydrology_cm = hcm,
    K_sat,
    S_s,
    θ_r,
    emissivity,
    z_0m,
    z_0b,
    earth_param_set,
    d_ds,
);

IC functions

function hydrostatic_equilibrium(z, z_interface, params)
    (; ν, S_s, hydrology_cm) = params
    (; α, n, m) = hydrology_cm
    if z < z_interface
        return -S_s * (z - z_interface) + ν
    else
        return ν * (1 + (α * (z - z_interface))^n)^(-m)
    end
end
function set_ic!(Y, p, t0, model)
    params = model.parameters
    z = model.domain.fields.z
    FT = eltype(Y.soil.ϑ_l)
    Y.soil.ϑ_l .= hydrostatic_equilibrium.(z, FT(-0.001), params)
    Y.soil.θ_i .= 0
    T = FT(296.15)
    ρc_s = @. Soil.volumetric_heat_capacity(
        Y.soil.ϑ_l,
        FT(0),
        params.ρc_ds,
        params.earth_param_set,
    )
    Y.soil.ρe_int =
        Soil.volumetric_internal_energy.(FT(0), ρc_s, T, params.earth_param_set)
end

set_ic! (generic function with 1 method)

Domain - single column

zmax = FT(0)
zmin = FT(-0.35)
nelems = 28
soil_domain = Column(; zlim = (zmin, zmax), nelements = nelems)
z = ClimaCore.Fields.coordinate_field(soil_domain.space.subsurface).z;

Soil model, and create the prognostic vector Y and cache p:

soil = Soil.EnergyHydrology{FT}(;
    parameters = params,
    domain = soil_domain,
    boundary_conditions = boundary_fluxes,
    sources = (),
)

ClimaLand.Soil.EnergyHydrology{Float64, ClimaLand.Soil.EnergyHydrologyParameters{Float64, Float64, ClimaLand.Soil.ConstantTwoBandSoilAlbedo{Float64}, ClimaLand.Soil.vanGenuchten{Float64}, ClimaLand.Parameters.LandParameters{Float64, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}, SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, Insolation.Parameters.InsolationParameters{Float64}}}, ClimaLand.Domains.Column{Float64, @NamedTuple{surface::ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}, subsurface::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}, subsurface_face::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellFace}}, @NamedTuple{z::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 28, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_top::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, Δz_bottom::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, z_sfc::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, UnitRange{Int64}}, true}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, depth::Float64, Δz::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 28, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_min::Float64}}, @NamedTuple{top::ClimaLand.Soil.AtmosDrivenFluxBC{PrescribedAtmosphere{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}, Dates.DateTime, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, PrescribedRadiativeFluxes{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}, Nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}, Dates.DateTime, Nothing, Nothing}, ClimaLand.Soil.Runoff.NoRunoff, Tuple{Symbol}}, bottom::ClimaLand.Soil.WaterHeatBC{ClimaLand.Soil.WaterFluxBC{Main.var"##323".var"#15#16"}, ClimaLand.Soil.HeatFluxBC{Main.var"##323".var"#17#18"}}}, Tuple{ClimaLand.Soil.SoilSublimation{Float64}}}(ClimaLand.Soil.EnergyHydrologyParameters{Float64, Float64, ClimaLand.Soil.ConstantTwoBandSoilAlbedo{Float64}, ClimaLand.Soil.vanGenuchten{Float64}, ClimaLand.Parameters.LandParameters{Float64, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}, SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, Insolation.Parameters.InsolationParameters{Float64}}}(0.5475761065600488, 4.600976025456601, 2.5691382822627262, 1.1457000000000002e6, 0.43, 0.0, 1.0, 0.0, 0.24, 18.3, ClimaLand.Soil.vanGenuchten{Float64}(3.0, 8.91, 0.8877665544332211, 0.1510623927138528), 2.605324074074074e-6, 0.001, 0.043, 7.0, 0.0264, 288.0, ClimaLand.Soil.ConstantTwoBandSoilAlbedo{Float64}(0.2, 0.4), 1.0, 0.01, 0.01, 0.01, ClimaLand.Parameters.LandParameters{Float64, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}, SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, Insolation.Parameters.InsolationParameters{Float64}}(0.024, 1000.0, 916.7, 4181.0, 2100.0, 273.16, 2.5008e6, 2.8344e6, 5.67e-8, 273.15, 9.81, 101325.0, 2.26e-5, 8.3144598, 0.01801528, 6.626e-34, 2.99792458e8, 6.02214076e23, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}(273.16, 101325.0, 100000.0, 1859.0, 4181.0, 2100.0, 2.5008e6, 2.8344e6, 611.657, 273.16, 273.15, 1.0, 1000.0, 150.0, 298.15, 6864.8, 10513.6, 0.28571428571, 8.3144598, 0.02897, 0.01801528, 290.0, 220.0, 9.81, 233.0, 1.0), SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}(0.4, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}(0.74, 4.7, 4.7, 15.0, 9.0, 2.5, 4.42), Thermodynamics.Parameters.ThermodynamicsParameters{Float64}(273.16, 101325.0, 100000.0, 1859.0, 4181.0, 2100.0, 2.5008e6, 2.8344e6, 611.657, 273.16, 273.15, 1.0, 1000.0, 150.0, 298.15, 6864.8, 10513.6, 0.28571428571, 8.3144598, 0.02897, 0.01801528, 290.0, 220.0, 9.81, 233.0, 1.0)), Insolation.Parameters.InsolationParameters{Float64}(3.1558464e7, 86400.0, 1.4959787e11, 1362.0, 2.11813488e11, 6.24006014121, 0.016708634, 0.408979125113246, 4.938188299449))), ClimaLand.Domains.Column{Float64, @NamedTuple{surface::ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}, subsurface::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}, subsurface_face::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellFace}}, @NamedTuple{z::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 28, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_top::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, Δz_bottom::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, z_sfc::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, UnitRange{Int64}}, true}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, depth::Float64, Δz::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 28, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 28, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 29, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_min::Float64}}((-0.35, 0.0), (28,), nothing, (:bottom, :top), (surface = ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}(ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}(ClimaComms.CPUSingleThreaded()), ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}
  [0.0, 0.0125, 0.00625, 80.0, 0.0125, 80.0, 6400.0, 0.00015625]), subsurface = CenterFiniteDifferenceSpace:
  context: SingletonCommsContext using CPUSingleThreaded
  mesh: 28-element IntervalMesh of IntervalDomain: z ∈ [-0.35,0.0] (:bottom, :top), subsurface_face = FaceFiniteDifferenceSpace:
  context: SingletonCommsContext using CPUSingleThreaded
  mesh: 28-element IntervalMesh of IntervalDomain: z ∈ [-0.35,0.0] (:bottom, :top)), (z = Float64-valued Field:
  [-0.34375, -0.33125, -0.31875, -0.30625, -0.29375, -0.28125, -0.26875, -0.25625, -0.24375, -0.23125  …  -0.11875, -0.10625, -0.09375, -0.08125, -0.06875, -0.05625, -0.04375, -0.03125, -0.01875, -0.00625], Δz_top = Float64-valued Field:
  [0.00625], Δz_bottom = Float64-valued Field:
  [0.00625], z_sfc = Float64-valued Field:
  [0.0], depth = 0.35, Δz = Float64-valued Field:
  [0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125  …  0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125, 0.0125], Δz_min = 0.012499999999999928)), (top = ClimaLand.Soil.AtmosDrivenFluxBC{PrescribedAtmosphere{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}, Dates.DateTime, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, PrescribedRadiativeFluxes{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}, Nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}, Dates.DateTime, Nothing, Nothing}, ClimaLand.Soil.Runoff.NoRunoff, Tuple{Symbol}}(PrescribedAtmosphere{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}, Dates.DateTime, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}(ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}(Main.var"##323".var"#5#6"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}(Main.var"##323".var"#5#6"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}(Main.var"##323".var"#7#8"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}(Main.var"##323".var"#9#10"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}(Main.var"##323".var"#11#12"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}(Main.var"##323".var"#13#14"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}(ClimaLand.var"#55#58"()), Dates.DateTime("2005-01-01T00:00:00"), 0.1, 0.01, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}(273.16, 101325.0, 100000.0, 1859.0, 4181.0, 2100.0, 2.5008e6, 2.8344e6, 611.657, 273.16, 273.15, 1.0, 1000.0, 150.0, 298.15, 6864.8, 10513.6, 0.28571428571, 8.3144598, 0.02897, 0.01801528, 290.0, 220.0, 9.81, 233.0, 1.0)), PrescribedRadiativeFluxes{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}, Nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}, Dates.DateTime, Nothing, Nothing}(ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}(Main.var"##323".var"#1#2"()), nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}(Main.var"##323".var"#3#4"()), Dates.DateTime("2005-01-01T00:00:00"), nothing, nothing), ClimaLand.Soil.Runoff.NoRunoff(nothing), (:soil,)), bottom = ClimaLand.Soil.WaterHeatBC{ClimaLand.Soil.WaterFluxBC{Main.var"##323".var"#15#16"}, ClimaLand.Soil.HeatFluxBC{Main.var"##323".var"#17#18"}}(ClimaLand.Soil.WaterFluxBC{Main.var"##323".var"#15#16"}(Main.var"##323".var"#15#16"()), ClimaLand.Soil.HeatFluxBC{Main.var"##323".var"#17#18"}(Main.var"##323".var"#17#18"()))), (ClimaLand.Soil.SoilSublimation{Float64}(false),), false)

Timestepping:

timestepper = CTS.ARS111();
ode_algo = CTS.IMEXAlgorithm(
    timestepper,
    CTS.NewtonsMethod(
        max_iters = 6,
        update_j = CTS.UpdateEvery(CTS.NewNewtonIteration),
    ),
);

saveat = Array(start_date:Second(3600.0):end_date);
sv_hr = (;
    t = Array{DateTime}(undef, length(saveat)),
    saveval = Array{NamedTuple}(undef, length(saveat)),
)
saving_cb = ClimaLand.NonInterpSavingCallback(sv_hr, saveat)
updateat = deepcopy(saveat)

simulation = LandSimulation(
    start_date,
    end_date,
    dt,
    soil;
    set_ic! = set_ic!,
    solver_kwargs = (; saveat = deepcopy(saveat)),
    timestepper = ode_algo,
    user_callbacks = (saving_cb,),
    updateat = updateat,
    diagnostics = (),
);

Solve

sol_hr = solve!(simulation);

Repeat at lower resolution

zmax = FT(0)
zmin = FT(-0.35)
nelems = 7
soil_domain = Column(; zlim = (zmin, zmax), nelements = nelems)
z = ClimaCore.Fields.coordinate_field(soil_domain.space.subsurface).z;

Soil model, and create the prognostic vector Y and cache p:

soil = Soil.EnergyHydrology{FT}(;
    parameters = params,
    domain = soil_domain,
    boundary_conditions = boundary_fluxes,
    sources = (),
)

ClimaLand.Soil.EnergyHydrology{Float64, ClimaLand.Soil.EnergyHydrologyParameters{Float64, Float64, ClimaLand.Soil.ConstantTwoBandSoilAlbedo{Float64}, ClimaLand.Soil.vanGenuchten{Float64}, ClimaLand.Parameters.LandParameters{Float64, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}, SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, Insolation.Parameters.InsolationParameters{Float64}}}, ClimaLand.Domains.Column{Float64, @NamedTuple{surface::ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}, subsurface::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}, subsurface_face::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellFace}}, @NamedTuple{z::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 7, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_top::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, Δz_bottom::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, z_sfc::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, UnitRange{Int64}}, true}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, depth::Float64, Δz::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 7, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_min::Float64}}, @NamedTuple{top::ClimaLand.Soil.AtmosDrivenFluxBC{PrescribedAtmosphere{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}, Dates.DateTime, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, PrescribedRadiativeFluxes{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}, Nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}, Dates.DateTime, Nothing, Nothing}, ClimaLand.Soil.Runoff.NoRunoff, Tuple{Symbol}}, bottom::ClimaLand.Soil.WaterHeatBC{ClimaLand.Soil.WaterFluxBC{Main.var"##323".var"#15#16"}, ClimaLand.Soil.HeatFluxBC{Main.var"##323".var"#17#18"}}}, Tuple{ClimaLand.Soil.SoilSublimation{Float64}}}(ClimaLand.Soil.EnergyHydrologyParameters{Float64, Float64, ClimaLand.Soil.ConstantTwoBandSoilAlbedo{Float64}, ClimaLand.Soil.vanGenuchten{Float64}, ClimaLand.Parameters.LandParameters{Float64, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}, SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, Insolation.Parameters.InsolationParameters{Float64}}}(0.5475761065600488, 4.600976025456601, 2.5691382822627262, 1.1457000000000002e6, 0.43, 0.0, 1.0, 0.0, 0.24, 18.3, ClimaLand.Soil.vanGenuchten{Float64}(3.0, 8.91, 0.8877665544332211, 0.1510623927138528), 2.605324074074074e-6, 0.001, 0.043, 7.0, 0.0264, 288.0, ClimaLand.Soil.ConstantTwoBandSoilAlbedo{Float64}(0.2, 0.4), 1.0, 0.01, 0.01, 0.01, ClimaLand.Parameters.LandParameters{Float64, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}, SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, Insolation.Parameters.InsolationParameters{Float64}}(0.024, 1000.0, 916.7, 4181.0, 2100.0, 273.16, 2.5008e6, 2.8344e6, 5.67e-8, 273.15, 9.81, 101325.0, 2.26e-5, 8.3144598, 0.01801528, 6.626e-34, 2.99792458e8, 6.02214076e23, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}(273.16, 101325.0, 100000.0, 1859.0, 4181.0, 2100.0, 2.5008e6, 2.8344e6, 611.657, 273.16, 273.15, 1.0, 1000.0, 150.0, 298.15, 6864.8, 10513.6, 0.28571428571, 8.3144598, 0.02897, 0.01801528, 290.0, 220.0, 9.81, 233.0, 1.0), SurfaceFluxes.Parameters.SurfaceFluxesParameters{Float64, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}(0.4, SurfaceFluxes.UniversalFunctions.BusingerParams{Float64}(0.74, 4.7, 4.7, 15.0, 9.0, 2.5, 4.42), Thermodynamics.Parameters.ThermodynamicsParameters{Float64}(273.16, 101325.0, 100000.0, 1859.0, 4181.0, 2100.0, 2.5008e6, 2.8344e6, 611.657, 273.16, 273.15, 1.0, 1000.0, 150.0, 298.15, 6864.8, 10513.6, 0.28571428571, 8.3144598, 0.02897, 0.01801528, 290.0, 220.0, 9.81, 233.0, 1.0)), Insolation.Parameters.InsolationParameters{Float64}(3.1558464e7, 86400.0, 1.4959787e11, 1362.0, 2.11813488e11, 6.24006014121, 0.016708634, 0.408979125113246, 4.938188299449))), ClimaLand.Domains.Column{Float64, @NamedTuple{surface::ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}, subsurface::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}, subsurface_face::ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellFace}}, @NamedTuple{z::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 7, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_top::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, Δz_bottom::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, Vector{Float64}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, z_sfc::ClimaCore.Fields.Field{ClimaCore.DataLayouts.DataF{Float64, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, UnitRange{Int64}}, true}}, ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}}, depth::Float64, Δz::ClimaCore.Fields.Field{ClimaCore.DataLayouts.VF{Float64, 7, SubArray{Float64, 2, Matrix{Float64}, Tuple{Base.Slice{Base.OneTo{Int64}}, UnitRange{Int64}}, true}}, ClimaCore.Spaces.FiniteDifferenceSpace{ClimaCore.Grids.FiniteDifferenceGrid{ClimaCore.Topologies.IntervalTopology{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.Meshes.IntervalMesh{ClimaCore.Meshes.Uniform, ClimaCore.Domains.IntervalDomain{ClimaCore.Geometry.ZPoint{Float64}, Tuple{Symbol, Symbol}}, LinRange{ClimaCore.Geometry.ZPoint{Float64}, Int64}, Nothing}, @NamedTuple{bottom::Int64, top::Int64}}, ClimaCore.Geometry.CartesianGlobalGeometry, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 7, Matrix{Float64}}, ClimaCore.DataLayouts.VF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, 8, Matrix{Float64}}}, ClimaCore.Grids.CellCenter}}, Δz_min::Float64}}((-0.35, 0.0), (7,), nothing, (:bottom, :top), (surface = ClimaCore.Spaces.PointSpace{ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}, ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}}(ClimaComms.SingletonCommsContext{ClimaComms.CPUSingleThreaded}(ClimaComms.CPUSingleThreaded()), ClimaCore.DataLayouts.DataF{ClimaCore.Geometry.LocalGeometry{(3,), ClimaCore.Geometry.ZPoint{Float64}, Float64, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.LocalAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.LocalAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.ContravariantAxis{(3,)}, ClimaCore.Geometry.ContravariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}, ClimaCore.Geometry.AxisTensor{Float64, 2, Tuple{ClimaCore.Geometry.CovariantAxis{(3,)}, ClimaCore.Geometry.CovariantAxis{(3,)}}, StaticArraysCore.SMatrix{1, 1, Float64, 1}}}, SubArray{Float64, 1, Matrix{Float64}, Tuple{Int64, Base.Slice{Base.OneTo{Int64}}}, true}}
  [0.0, 0.05, 0.025, 20.0, 0.05, 20.0, 400.0, 0.0025]), subsurface = CenterFiniteDifferenceSpace:
  context: SingletonCommsContext using CPUSingleThreaded
  mesh: 7-element IntervalMesh of IntervalDomain: z ∈ [-0.35,0.0] (:bottom, :top), subsurface_face = FaceFiniteDifferenceSpace:
  context: SingletonCommsContext using CPUSingleThreaded
  mesh: 7-element IntervalMesh of IntervalDomain: z ∈ [-0.35,0.0] (:bottom, :top)), (z = Float64-valued Field:
  [-0.325, -0.275, -0.225, -0.175, -0.125, -0.075, -0.025], Δz_top = Float64-valued Field:
  [0.025], Δz_bottom = Float64-valued Field:
  [0.025], z_sfc = Float64-valued Field:
  [0.0], depth = 0.35, Δz = Float64-valued Field:
  [0.05, 0.05, 0.05, 0.05, 0.05, 0.05, 0.05], Δz_min = 0.049999999999999975)), (top = ClimaLand.Soil.AtmosDrivenFluxBC{PrescribedAtmosphere{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}, Dates.DateTime, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}, PrescribedRadiativeFluxes{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}, Nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}, Dates.DateTime, Nothing, Nothing}, ClimaLand.Soil.Runoff.NoRunoff, Tuple{Symbol}}(PrescribedAtmosphere{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}, Dates.DateTime, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}}(ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}(Main.var"##323".var"#5#6"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#5#6"}(Main.var"##323".var"#5#6"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#7#8"}(Main.var"##323".var"#7#8"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#9#10"}(Main.var"##323".var"#9#10"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#11#12"}(Main.var"##323".var"#11#12"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#13#14"}(Main.var"##323".var"#13#14"()), ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{ClimaLand.var"#55#58"}(ClimaLand.var"#55#58"()), Dates.DateTime("2005-01-01T00:00:00"), 0.1, 0.01, Thermodynamics.Parameters.ThermodynamicsParameters{Float64}(273.16, 101325.0, 100000.0, 1859.0, 4181.0, 2100.0, 2.5008e6, 2.8344e6, 611.657, 273.16, 273.15, 1.0, 1000.0, 150.0, 298.15, 6864.8, 10513.6, 0.28571428571, 8.3144598, 0.02897, 0.01801528, 290.0, 220.0, 9.81, 233.0, 1.0)), PrescribedRadiativeFluxes{Float64, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}, Nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}, Dates.DateTime, Nothing, Nothing}(ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#1#2"}(Main.var"##323".var"#1#2"()), nothing, ClimaUtilitiesClimaCoreNCDatasetsExt.TimeVaryingInputsExt.AnalyticTimeVaryingInput{Main.var"##323".var"#3#4"}(Main.var"##323".var"#3#4"()), Dates.DateTime("2005-01-01T00:00:00"), nothing, nothing), ClimaLand.Soil.Runoff.NoRunoff(nothing), (:soil,)), bottom = ClimaLand.Soil.WaterHeatBC{ClimaLand.Soil.WaterFluxBC{Main.var"##323".var"#15#16"}, ClimaLand.Soil.HeatFluxBC{Main.var"##323".var"#17#18"}}(ClimaLand.Soil.WaterFluxBC{Main.var"##323".var"#15#16"}(Main.var"##323".var"#15#16"()), ClimaLand.Soil.HeatFluxBC{Main.var"##323".var"#17#18"}(Main.var"##323".var"#17#18"()))), (ClimaLand.Soil.SoilSublimation{Float64}(false),), false)

Timestepping:

timestepper = CTS.ARS111();
ode_algo = CTS.IMEXAlgorithm(
    timestepper,
    CTS.NewtonsMethod(
        max_iters = 6,
        update_j = CTS.UpdateEvery(CTS.NewNewtonIteration),
    ),
);

saveat = Array(start_date:Second(3600.0):end_date);
sv_lr = (;
    t = Array{DateTime}(undef, length(saveat)),
    saveval = Array{NamedTuple}(undef, length(saveat)),
)
saving_cb = ClimaLand.NonInterpSavingCallback(sv_lr, saveat)
updateat = deepcopy(saveat)
simulation = LandSimulation(
    start_date,
    end_date,
    dt,
    soil;
    set_ic! = set_ic!,
    updateat = updateat,
    solver_kwargs = (; saveat = deepcopy(saveat)),
    timestepper = ode_algo,
    user_callbacks = (saving_cb,),
    diagnostics = (),
);

Solve

sol_lr = solve!(simulation);

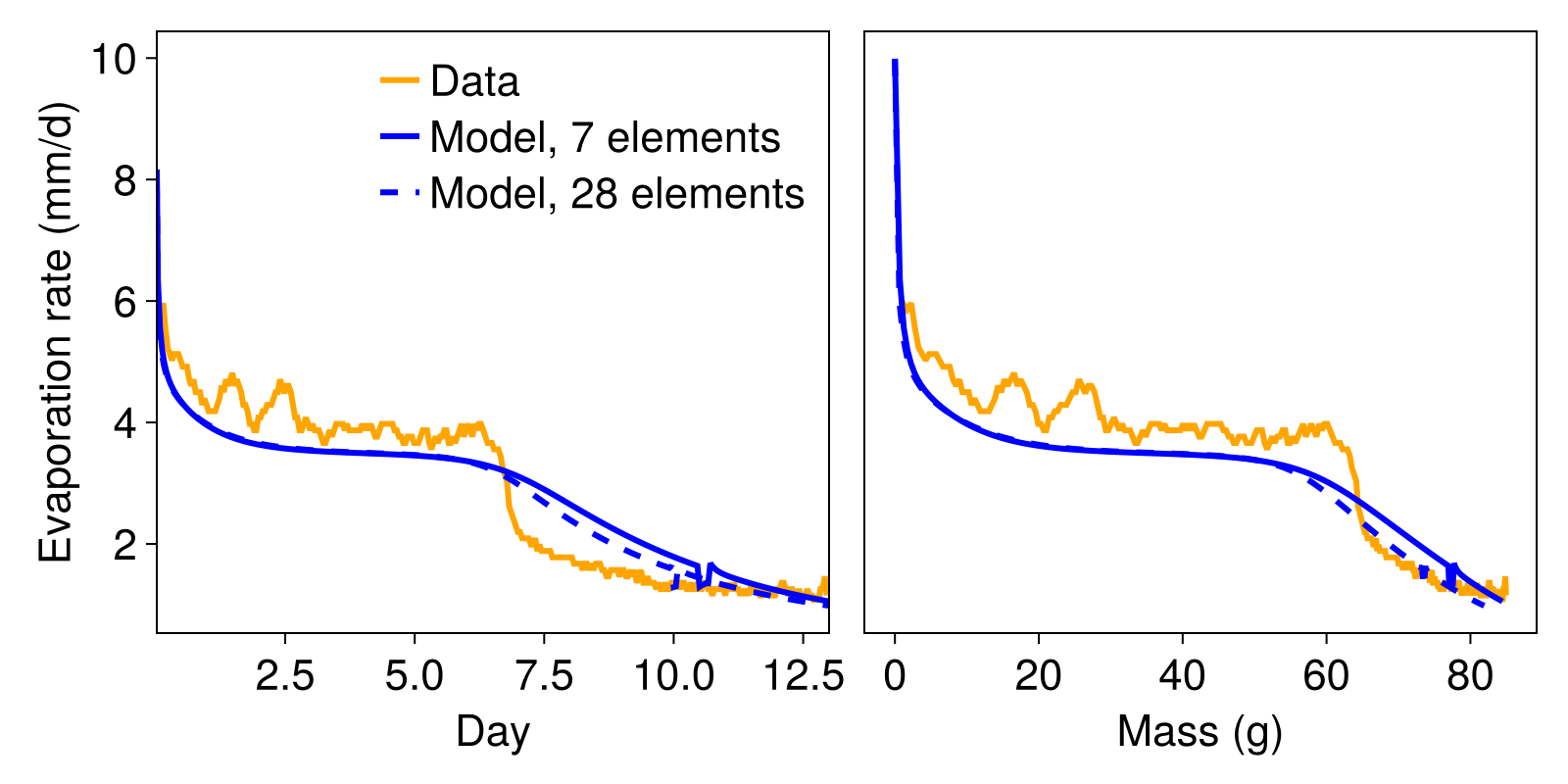

Figures

Extract the evaporation at each saved step

evap_hr = [
    parent(sv_hr.saveval[k].soil.turbulent_fluxes.vapor_flux_liq)[1] for
    k in 1:length(sol_hr.t)
]
evap_lr = [
    parent(sv_lr.saveval[k].soil.turbulent_fluxes.vapor_flux_liq)[1] for
    k in 1:length(sol_lr.t)
]
evaporation_data = ClimaLand.Artifacts.lehmann2008_evaporation_data();
ref_soln_E = readdlm(evaporation_data, ',')
ref_soln_E_350mm = ref_soln_E[2:end, 1:2]
data_dates = ref_soln_E_350mm[:, 1]
data_e = ref_soln_E_350mm[:, 2];

fig = Figure(size = (800, 400), fontsize = 22)
ax = Axis(
    fig[1, 1],
    xlabel = "Day",
    ylabel = "Evaporation rate (mm/d)",
    xgridvisible = false,
    ygridvisible = false,
)
CairoMakie.xlims!(minimum(data_dates), maximum(float.(sol_lr.t) ./ 3600 ./ 24))
CairoMakie.lines!(
    ax,
    FT.(data_dates),
    FT.(data_e),
    label = "Data",
    color = :orange,
    linewidth = 3,
)
CairoMakie.lines!(
    ax,
    FT.(sol_lr.t) ./ 3600 ./ 24,
    evap_lr .* (1000 * 3600 * 24),
    label = "Model, 7 elements",
    color = :blue,
    linewidth = 3,
)
CairoMakie.lines!(
    ax,
    FT.(sol_hr.t) ./ 3600 ./ 24,
    evap_hr .* (1000 * 3600 * 24),
    label = "Model, 28 elements",
    color = :blue,
    linestyle = :dash,
    linewidth = 3,
)
CairoMakie.axislegend(ax, framevisible = false)

ax = Axis(
    fig[1, 2],
    xlabel = "Mass (g)",
    yticksvisible = false,
    yticklabelsvisible = false,
    xgridvisible = false,
    ygridvisible = false,
)
A_col = π * (0.027)^2
mass_0_hr = sum(sol_hr.u[1].soil.ϑ_l) * 1e6 * A_col
mass_loss_hr = [
    mass_0_hr - sum(sol_hr.u[k].soil.ϑ_l) * 1e6 * A_col for
    k in 1:length(sol_hr.t)
]

mass_0_lr = sum(sol_lr.u[1].soil.ϑ_l) * 1e6 * A_col
mass_loss_lr = [
    mass_0_lr - sum(sol_lr.u[k].soil.ϑ_l) * 1e6 * A_col for
    k in 1:length(sol_lr.t)
]
CairoMakie.lines!(
    ax,
    cumsum(FT.(data_e)) ./ (1000 * 24) .* A_col .* 1e6,
    FT.(data_e),
    color = :orange,
    linewidth = 3,
)
CairoMakie.lines!(
    ax,
    mass_loss_lr,
    evap_lr .* (1000 * 3600 * 24),
    color = :blue,
    linewidth = 3,
)
CairoMakie.lines!(
    ax,
    mass_loss_hr,
    evap_hr .* (1000 * 3600 * 24),
    color = :blue,
    linewidth = 3,
    linestyle = :dash,
)

save("evaporation_lehmann2008_fig8b.png", fig);
