Fluxnet simulations with the full land model: snow, soil, canopy

In the SoilCanopyModel tutorial, we demonstrated how to run the an integrated model with a soil and canopy component at the US-MOz fluxnet site. Here we add in a snow component, and run at the Niwot Ridge site instead. The forcing data was obtained from AmeriFlux FLUXNET: https://doi.org/10.17190/AMF/1871141

Citation: Peter D. Blanken, Russel K. Monson, Sean P. Burns, David R. Bowling, Andrew A. Turnipseed (2022), AmeriFlux FLUXNET-1F US-NR1 Niwot Ridge Forest (LTER NWT1), Ver. 3-5, AmeriFlux AMP, (Dataset). https://doi.org/10.17190/AMF/1871141

The focus of this tutorial is to learn the steps towards setting up and running an integrated simulation, and less on the parameterization choices. As such, the default parameters are implicitly set. To experiment with modularity in the parameters and parameterizations, please see the soil parameterizations tutorial, the canopy parameterizations tutorial, or the snowy land parameterizations tutorial.

Preliminary Setup

using Dates
import ClimaParams as CP
using ClimaDiagnostics
using ClimaLand
using ClimaLand.Domains: Column
using ClimaLand.Simulations
import ClimaLand.Parameters as LP
using DelimitedFiles
import ClimaLand.FluxnetSimulations as FluxnetSimulations
using CairoMakie, ClimaAnalysis, GeoMakie, Printf, StatsBase
import ClimaLand.LandSimVis as LandSimVis;

Define the floating point precision desired (64 or 32 bit), and get the parameter set holding constants used across CliMA Models.

const FT = Float32;
earth_param_set = LP.LandParameters(FT);
default_params_filepath =
    joinpath(pkgdir(ClimaLand), "toml", "default_parameters.toml");
toml_dict = LP.create_toml_dict(FT, default_params_filepath);

We will use prescribed atmospheric and radiative forcing from the US-NR1 tower. We also read in the MODIS LAI and let that vary in time in a prescribed manner.

site_ID = "US-NR1";
site_ID_val = FluxnetSimulations.replace_hyphen(site_ID);

Get the latitude and longitude in degrees, as well as the time offset in hours of local time from UTC

(; time_offset, lat, long) =
    FluxnetSimulations.get_location(FT, Val(site_ID_val));

Get the height of the sensors in m

(; atmos_h) = FluxnetSimulations.get_fluxtower_height(FT, Val(site_ID_val));

Set a start and stop date of the simulation in UTC, as well as a timestep in seconds

(start_date, stop_date) =
    FluxnetSimulations.get_data_dates(site_ID, time_offset)
Δt = 450.0;

Setup the domain for the model. This corresponds to a column of 2m in depth, with 10 equally spaced layers. The lat and long are provided so that we can look up default parameters for this location using the default ClimaLand parameter maps.

zmin = FT(-2) # in m
zmax = FT(0) # in m
domain = Column(; zlim = (zmin, zmax), nelements = 10, longlat = (long, lat));

Forcing data for the site - this uses our interface for working with Fluxnet data

forcing = FluxnetSimulations.prescribed_forcing_fluxnet(
    site_ID,
    lat,
    long,
    time_offset,
    atmos_h,
    start_date,
    earth_param_set,
    FT,
);

LAI for the site - this uses our interface for working with MODIS data.

LAI =
    ClimaLand.prescribed_lai_modis(domain.space.surface, start_date, stop_date);

Setup the integrated model

We want to simulate the canopy-soil-snow system together, so the model type LandModel is chosen. Here we use the highest level model constructor, which uses default parameters, and parameterizations, for the soil, snow, and canopy models.

land_model = LandModel{FT}(forcing, LAI, toml_dict, domain, Δt);
set_ic! = FluxnetSimulations.make_set_fluxnet_initial_conditions(
    site_ID,
    start_date,
    time_offset,
    land_model,
);
output_vars = ["swu", "lwu", "shf", "lhf", "swe", "swc", "si"]
diagnostics = ClimaLand.default_diagnostics(
    land_model,
    start_date;
    output_writer = ClimaDiagnostics.Writers.DictWriter(),
    output_vars,
    average_period = :hourly,
);

Choose how often we want to update the forcing. Choosing a frequency > the data frequency results in linear interpolation in time to the intermediate times.

data_dt = Second(FluxnetSimulations.get_data_dt(site_ID));
updateat = Array(start_date:data_dt:stop_date);

Now we can construct the simulation object and solve it.

simulation = Simulations.LandSimulation(
    start_date,
    stop_date,
    Δt, # seconds
    land_model;
    set_ic!,
    updateat,
    user_callbacks = (),
    diagnostics,
);
solve!(simulation);

Plotting results

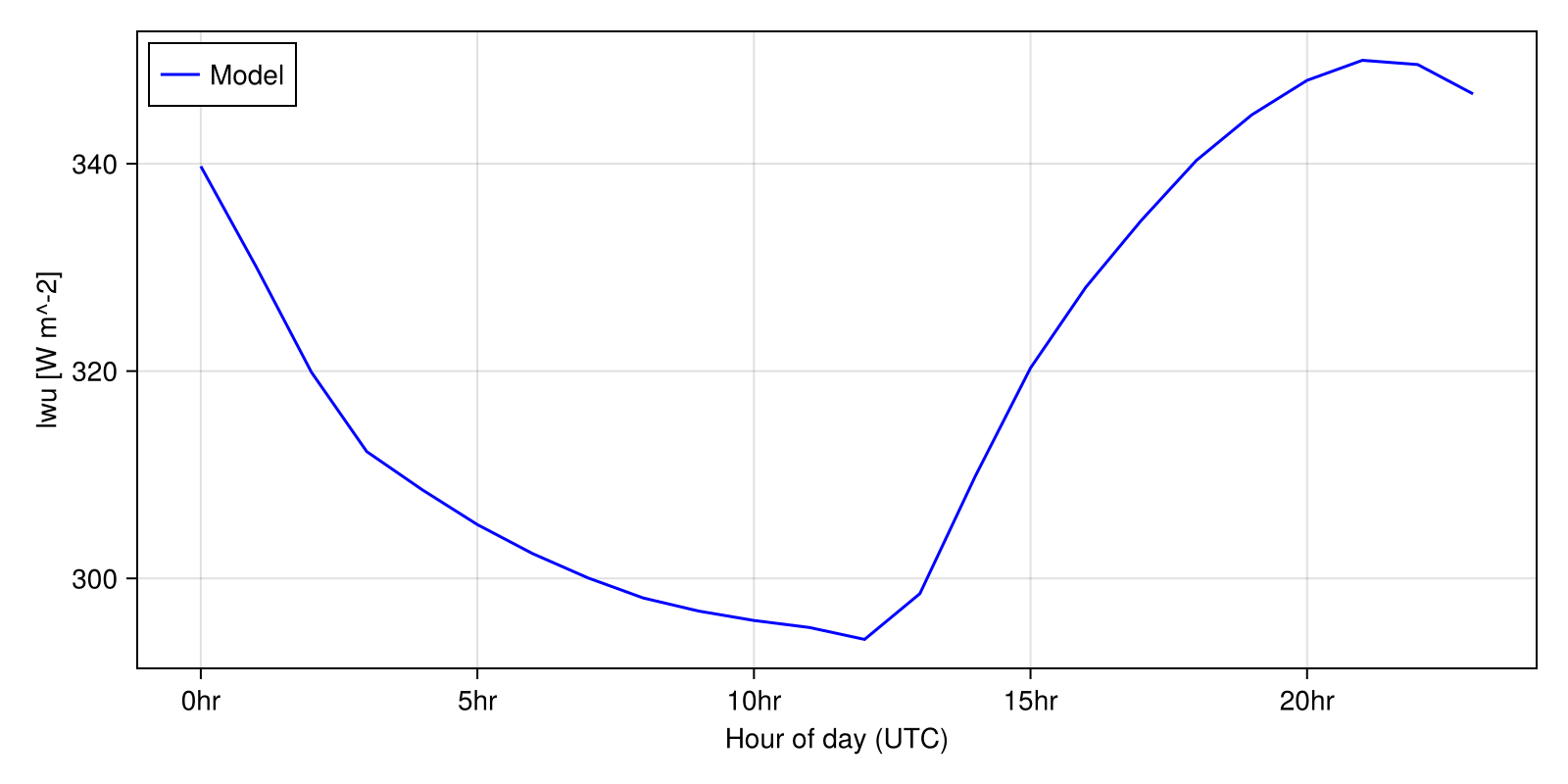

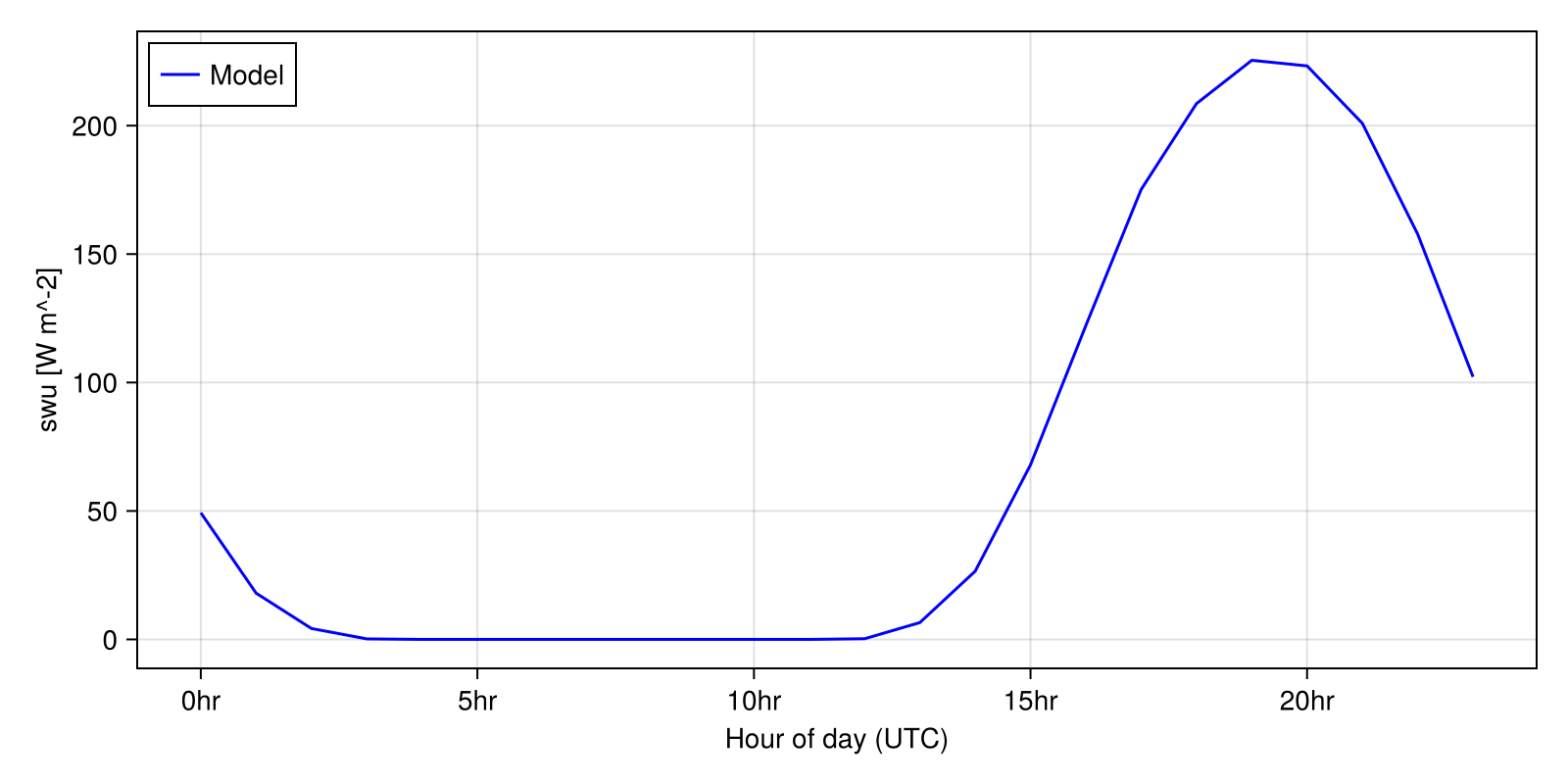

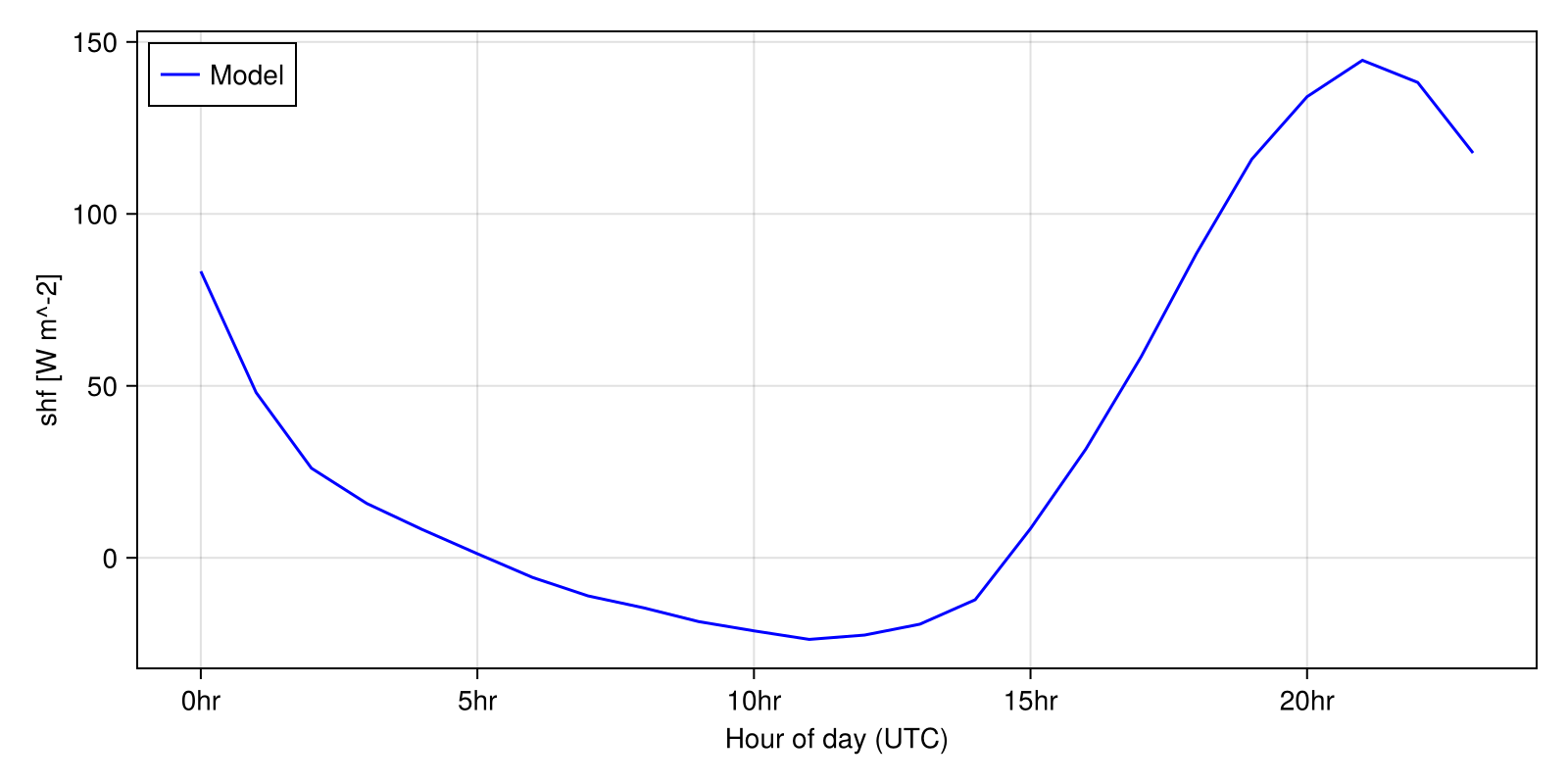

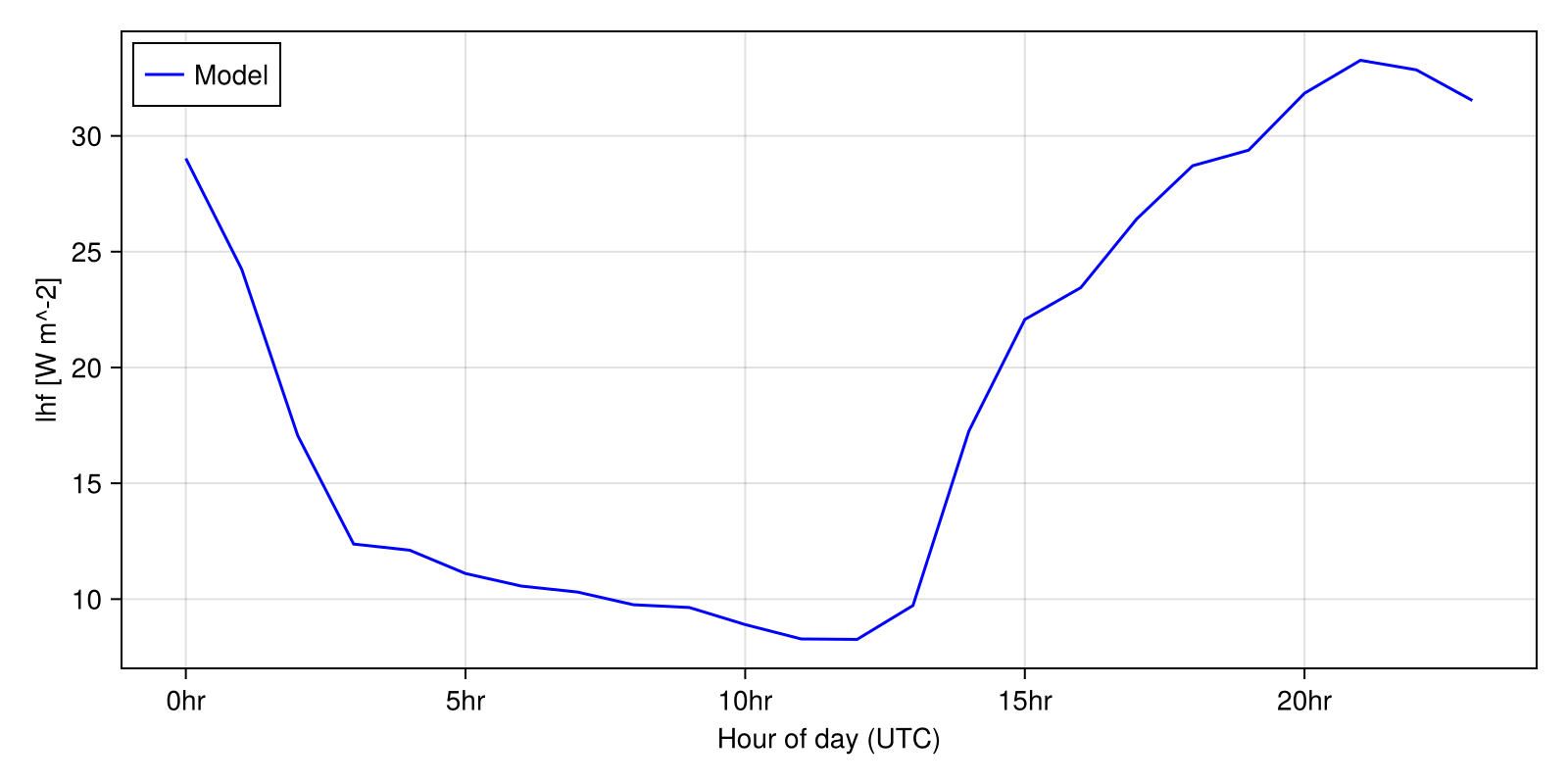

LandSimVis.make_diurnal_timeseries(
    simulation;
    short_names = ["shf", "lhf", "swu", "lwu"],
    spinup_date = start_date + Day(20),
    plot_stem_name = "US_NR1_diurnal_timeseries",
);

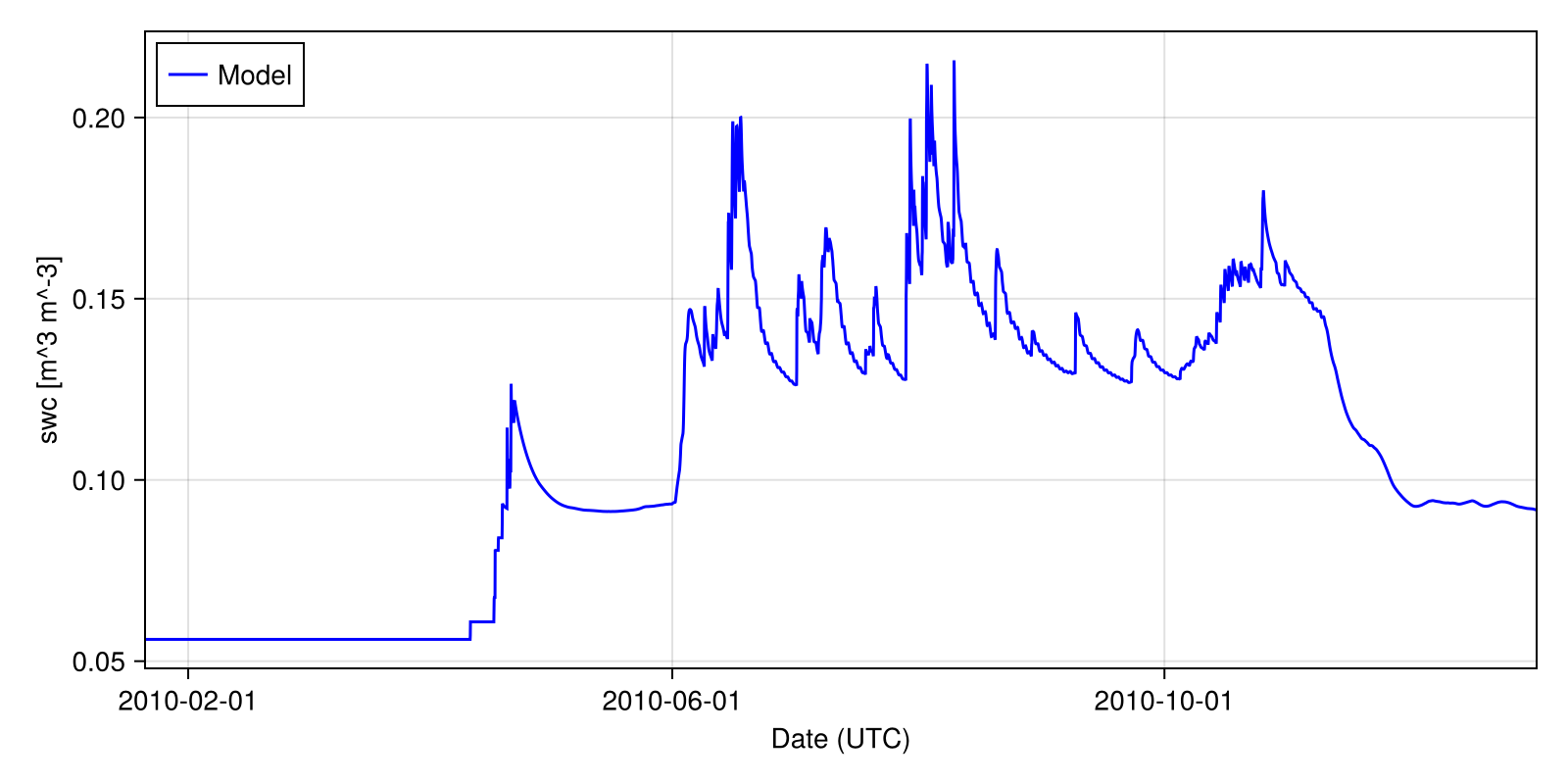

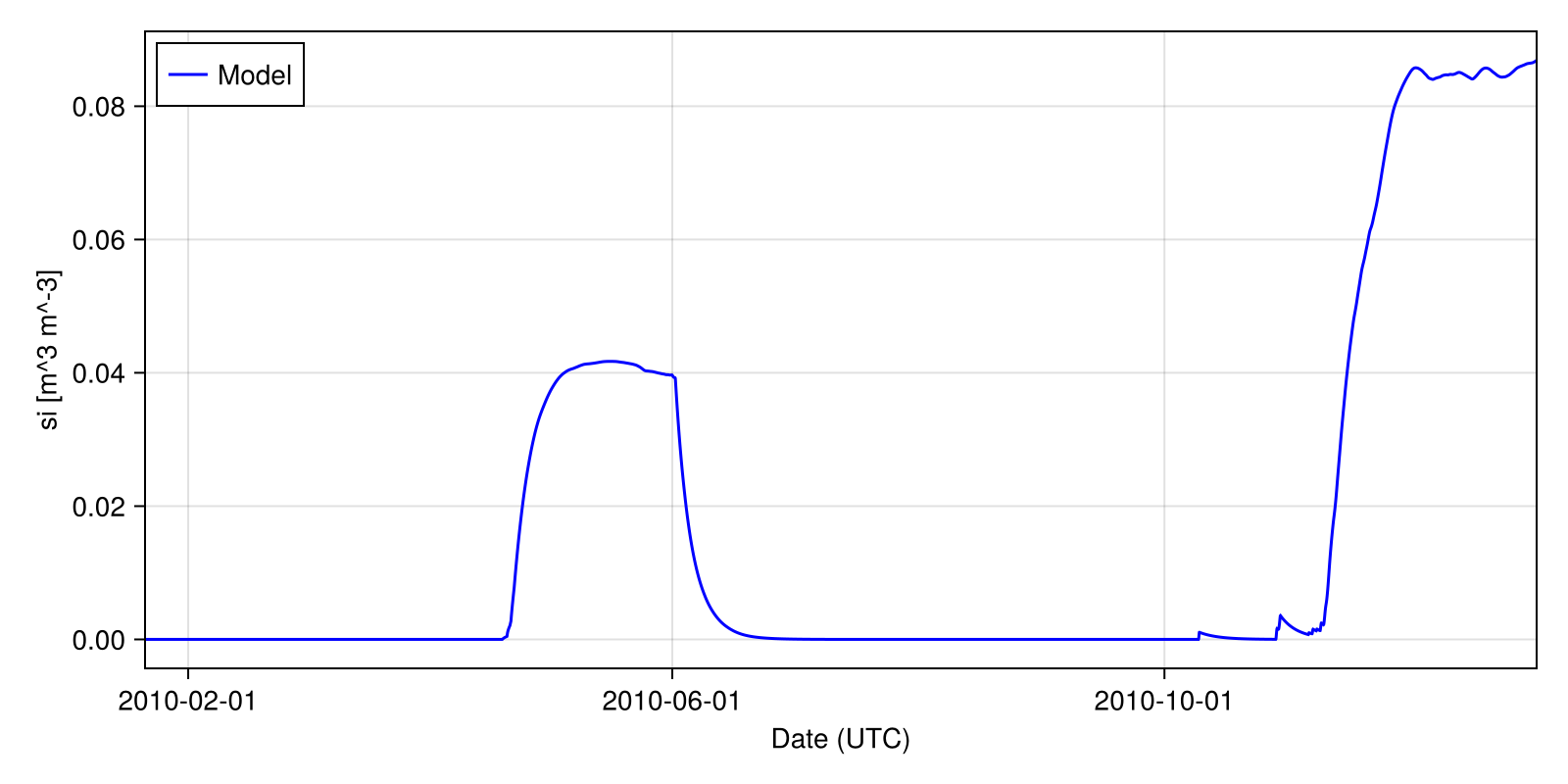

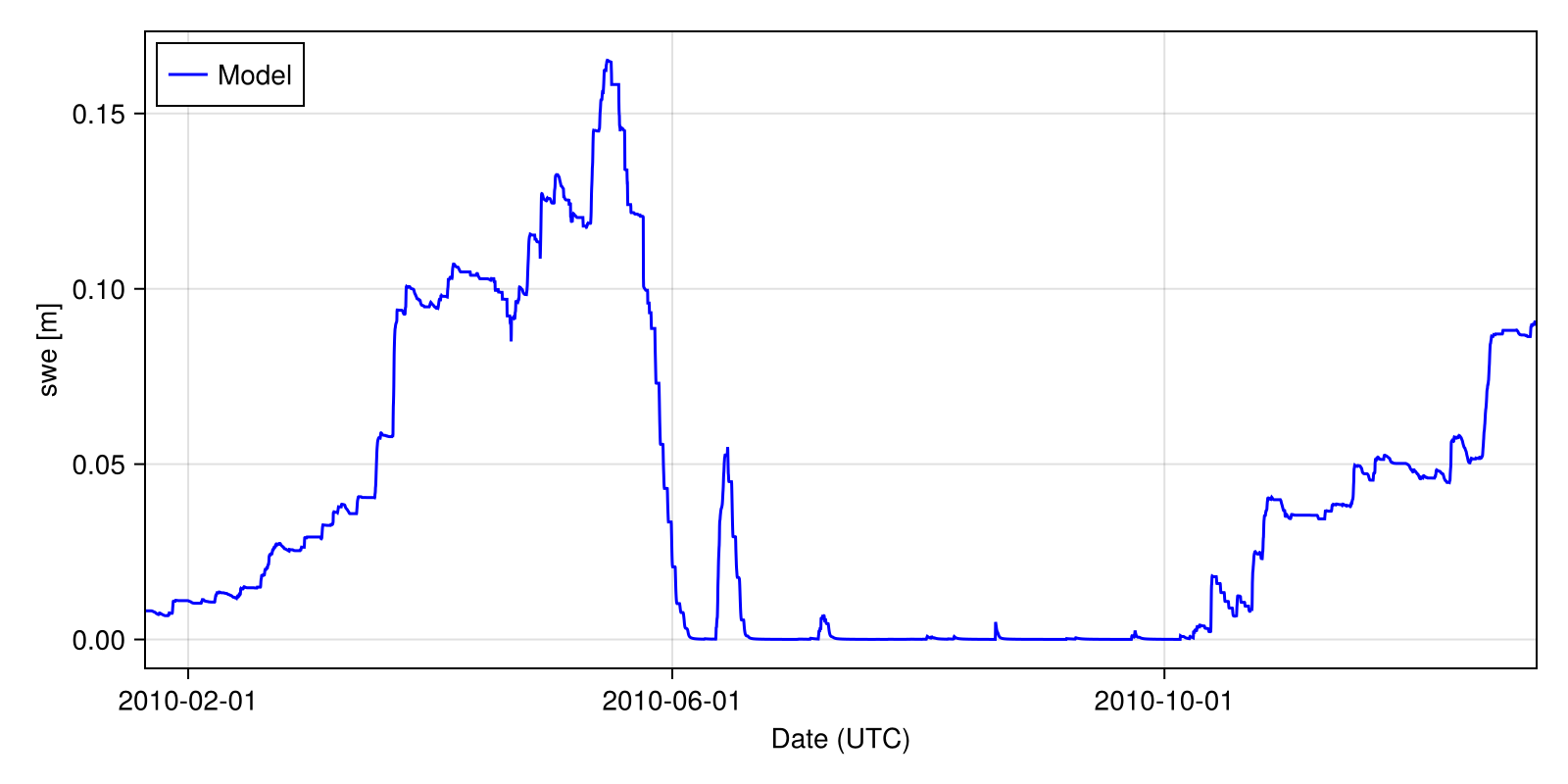

LandSimVis.make_timeseries(
    simulation;
    short_names = ["swc", "si", "swe"],
    spinup_date = start_date + Day(20),
    plot_stem_name = "US_NR1_timeseries",
);

This page was generated using Literate.jl.
