Changing Canopy Parameterizations

In Default Canopy, we ran a simple canopy model simulation using all of the default parameterizations and parameters. ClimaLand provides multiple options for many parameterizations; in this tutorial, we will demonstrate how to change a canopy model parameterization.

Specifically, we'll use non-default parameterizations for two canopy components:

  • energy model: from the default BigLeafEnergyModel to PrescribedCanopyTempModel
  • radiative transfer: from the default TwoStreamModel to BeerLambertModel

First import the Julia packages we'll need.

import ClimaParams as CP
using ClimaUtilities.TimeVaryingInputs: TimeVaryingInput
using ClimaLand
using ClimaLand.Domains
using ClimaLand.Canopy
import ClimaLand.Simulations: LandSimulation, solve!
import ClimaLand.Parameters as LP
using Dates
import ClimaDiagnostics
using CairoMakie, ClimaAnalysis, GeoMakie, Printf, StatsBase
import ClimaLand.LandSimVis as LandSimVis

Choose a floating point precision, and get the parameter set, which holds constants used across CliMA models.

FT = Float32
earth_param_set = LP.LandParameters(FT);
default_params_filepath =
    joinpath(pkgdir(ClimaLand), "toml", "default_parameters.toml");
toml_dict = LP.create_toml_dict(FT, default_params_filepath);

We will run this simulation on a point domain at a lat/lon location near Pasadena, California. This is different from the soil example, which ran on a column, because the soil model has depth and the canopy model does not.

longlat = FT.((-118.1, 34.1))
domain = Domains.Point(; z_sfc = FT(0.0), longlat);
surface_space = domain.space.surface;

We choose the initial and final simulation times as DatesTimes, and a timestep in seconds.

start_date = DateTime(2008);
stop_date = start_date + Second(60 * 60 * 72);
dt = 1000.0;

Whereas the soil model takes in 2 forcing objects (atmosphere and radiation), the canopy takes in 3 (atmosphere, radiation, and ground). Here we read in the first two from ERA5 data, and specify that the following ground conditions will be prescribed: emissivity, albedo, temperature, and soil moisture. We also set up a constant leaf area index (LAI); for an example reading LAI from MODIS data, please see the canopy_tutorial.jl tutorial. This differs from the soil example because we have the extra inputs of the ground conditions and LAI.

era5_ncdata_path =
    ClimaLand.Artifacts.era5_land_forcing_data2008_path(; lowres = true);
atmos, radiation = ClimaLand.prescribed_forcing_era5(
    era5_ncdata_path,
    surface_space,
    start_date,
    earth_param_set,
    FT,
);
ground = PrescribedGroundConditions{FT}();
LAI = TimeVaryingInput((t) -> FT(1.0));

Now, we can create the canopy model.

First, let's set up the PrescribedCanopyTempModel parameterization. This parameterization acts as a flag to signal that the atmosphere temperature from the prescribed forcing should be used as the canopy temperature. Since this only involves retrieving the temperature from the atmosphere forcing, we do not need to provide any additional parameters, and this setup is straightforward.

energy = Canopy.PrescribedCanopyTempModel{FT}();

Now let's set up the BeerLambertModel radiative transfer parameterization. We'll explore three different ways to construct this parameterization. The first way is to use the BeerLambertModel constructor with the default parameters. This method requires the simulation domain as it reads in radiation parameters from a map of CLM parameters by default.

radiative_transfer = Canopy.BeerLambertModel{FT}(domain);

Alternatively, we could use the same constructor but provide custom values for a subset of the parameters, and use the global maps for the remainder. For example, we might want to use the global maps for albedo, but explore how the results change when we assume a spherical distribution of leaves (G = 0.5) and no clumping (Ω = 1).

G_Function = Canopy.ConstantGFunction(FT(0.5)); # leaf angle distribution value 0.5
Ω = 1; # clumping index
radiation_parameters = (; G_Function, Ω);
radiative_transfer = Canopy.BeerLambertModel{FT}(domain; radiation_parameters);

If you want to overwrite all of the parameters, you do not need to use global maps, and therefore do not need the domain. In a case like this, we may want to use a different BeerLambertModel constructor, which takes the parameters object directly:

radiative_transfer_parameters = Canopy.BeerLambertParameters(FT; G_Function, Ω);
radiative_transfer = Canopy.BeerLambertModel(radiative_transfer_parameters);

Note these parameters must all be scalars (or a single instance of a GFunction) or fields of floats and a field of a GFunction.

All three of these methods will construct a BeerLambertModel; the first will use the default parameters, while the second and third use the custom parameters. The method you choose will depend on your use case and whether you want to use the default parameters or provide custom ones. The set of available constructors for all ClimaLand models can be found in the "APIs" section of the documentation.

Now we can create the CanopyModel model with the specified energy and radiative transfer parameterizations passed as keyword arguments.

model = Canopy.CanopyModel{FT}(
    domain,
    (; atmos, radiation, ground),
    LAI,
    toml_dict;
    energy,
    radiative_transfer,
);
[ Info: Using the PrescribedAtmosphere air temperature as the canopy temperature

Define a function to set initial conditions for the prognostic variables. Since these are specific to the model physics, the contents here differ from the soil example, but the function structure remains the same. The variables initialized here are described in the Model Equations section of the documentation. Note that here we previously set the initial condition for the canopy energy model's prognostic temperature. Since we're using the PrescribedCanopyTempModel, we do not need to set it here.

function set_ic!(Y, p, t0, model)
    ψ_leaf_0 = FT(-2e5 / 9800)
    (; retention_model, ν, S_s) = model.hydraulics.parameters
    S_l_ini = Canopy.PlantHydraulics.inverse_water_retention_curve(
        retention_model,
        ψ_leaf_0,
        ν,
        S_s,
    )
    Y.canopy.hydraulics.ϑ_l.:1 .=
        Canopy.PlantHydraulics.augmented_liquid_fraction.(ν, S_l_ini)
end
set_ic! (generic function with 1 method)

Since we'll want to make some plots, let's set up an object to save the model output periodically, as we did for the soil tutorial.

diag_writer = ClimaDiagnostics.Writers.DictWriter();
diagnostics = ClimaLand.Diagnostics.default_diagnostics(
    model,
    start_date;
    output_vars = ["ct", "trans"],
    output_writer = diag_writer,
    average_period = :hourly,
);

Now construct the LandSimulation object, which contains the model and additional timestepping information. This is identical to the soil example.

simulation = LandSimulation(
    start_date,
    stop_date,
    dt,
    model;
    set_ic!,
    user_callbacks = (),
    diagnostics,
);

Now we can run the simulation!

solve!(simulation);

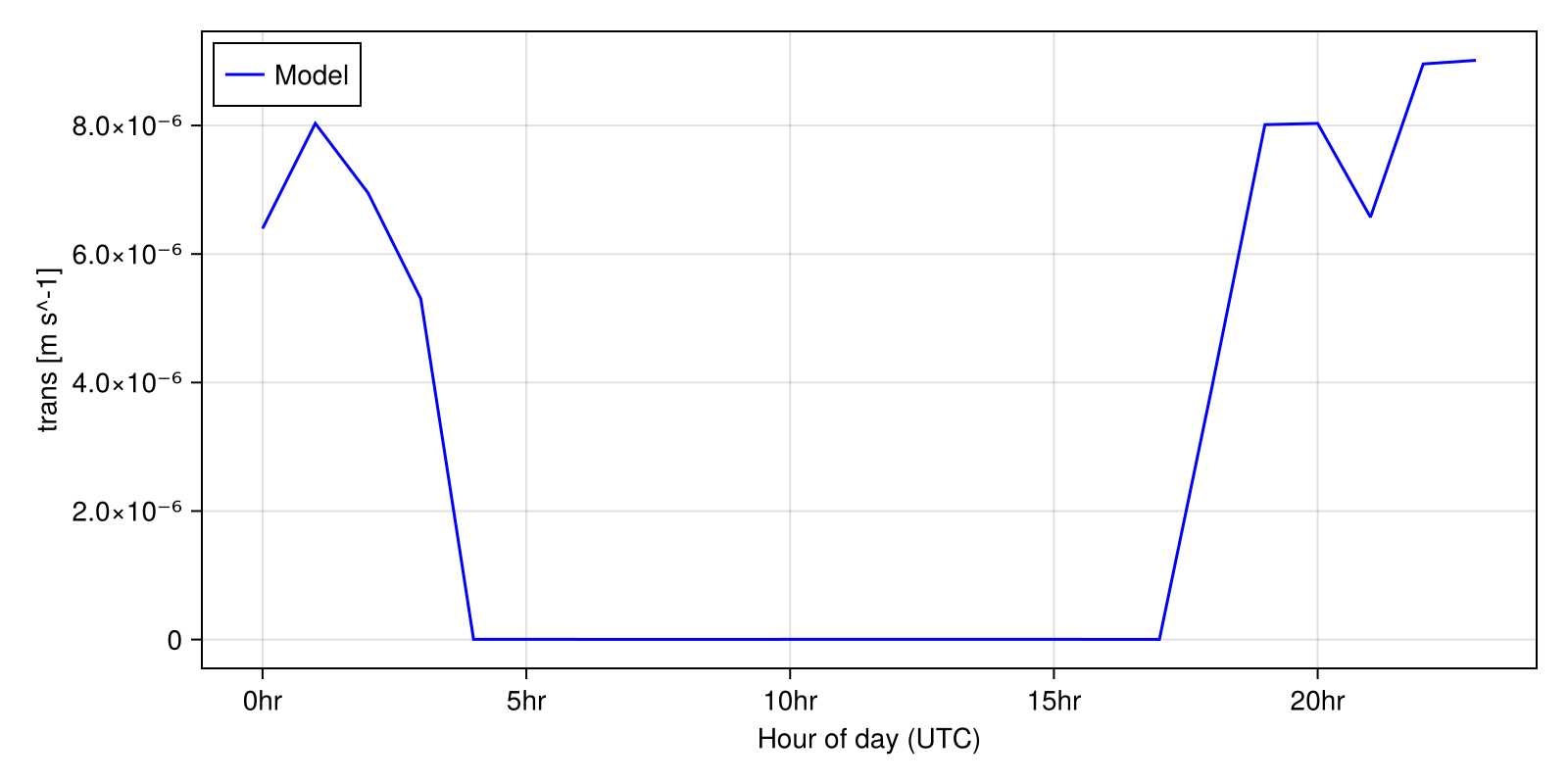

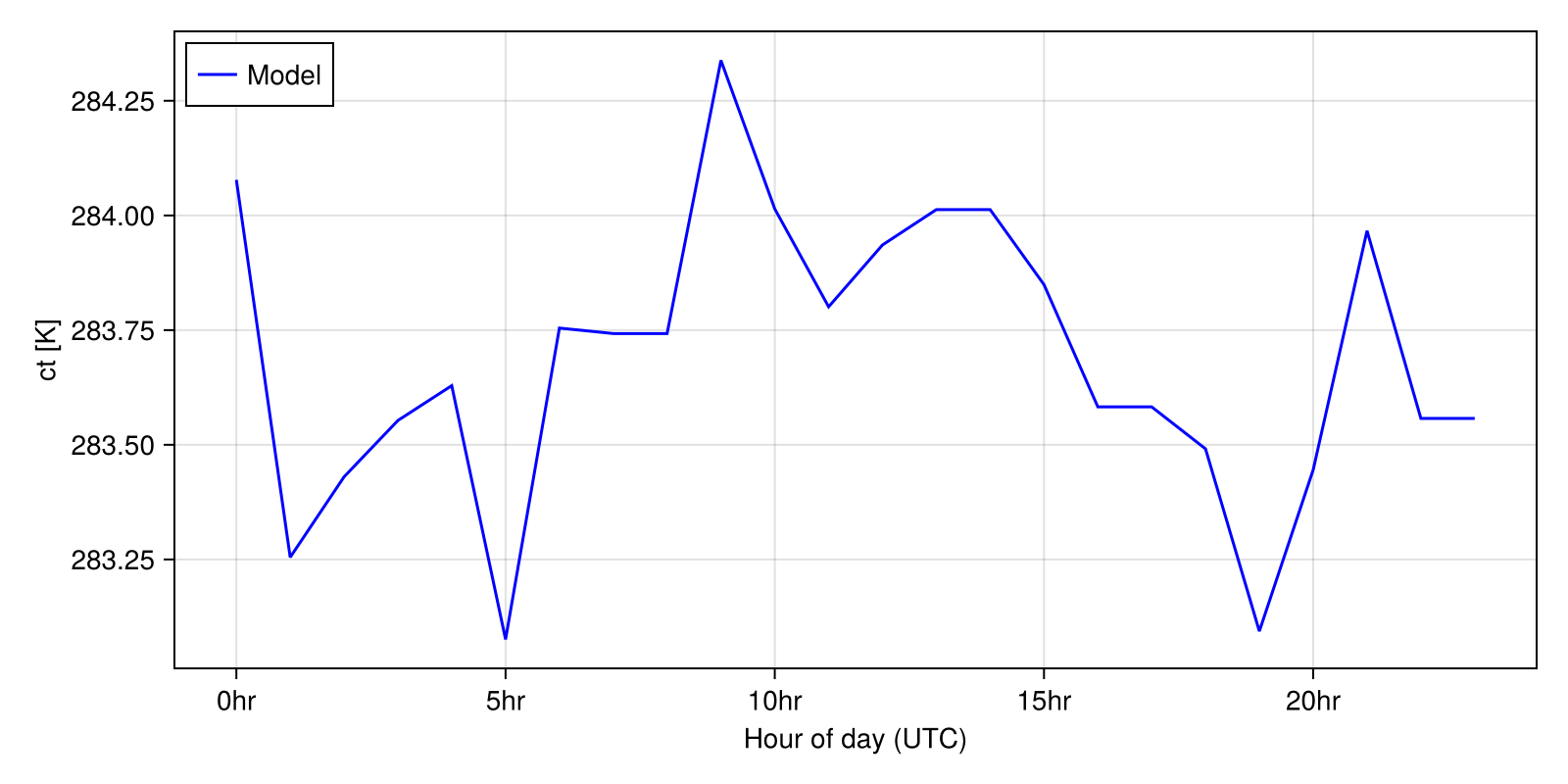

Let's plot some results, for example diurnally averaged canopy temperature and transpiration over time:

LandSimVis.make_diurnal_timeseries(
    simulation;
    short_names = ["ct", "trans"],
    plot_stem_name = "canopy_parameterizations",
);

Now you can compare these plots to those generated in the default canopy tutorial. How are the results different? How are they the same?

Atmospheric forcing data citation: Hersbach, Hans, et al. "The ERA5 global reanalysis." Quarterly journal of the royal meteorological society 146.730 (2020): 1999-2049.

This page was generated using Literate.jl.
