Arctic basin seasonal cycle example

This example reproduces results from Semtner (1976), which simulates the seasonal cycle of sea ice in the Arctic basin. The model uses climatological forcing data from Fletcher (1965) for shortwave radiation, longwave radiation, sensible heat flux, and latent heat flux. This example demonstrates how to:

  • use time-varying climatological forcing data,
  • set up seasonal cycles with FieldTimeSeries and cyclical indexing,
  • combine multiple heat flux components,
  • simulate multi-year seasonal cycles.

Install dependencies

First let's make sure we have all required packages installed.

using Pkg
pkg"add Oceananigans, ClimaSeaIce, CairoMakie"

The physical domain

We use a single grid point to model a horizontally uniform ice column:

using Oceananigans
using Oceananigans.Units
using Oceananigans.Units: Time
using ClimaSeaIce
using CairoMakie

grid = RectilinearGrid(size=(), topology=(Flat, Flat, Flat))
1×1×1 RectilinearGrid{Float64, Flat, Flat, Flat} on CPU with 0×0×0 halo
├── Flat x
├── Flat y
└── Flat z

Climatological forcing data

The forcing data comes from Semtner (1976, table 1), originally tabulated by Fletcher (1965). Note: these are in kcal, which was deprecated in the ninth General Conference on Weights and Measures in 1948. We convert these to Joules (and then to Watts) below.

Month: Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

tabulated_shortwave = - [   0,      0,    1.9,    9.9,   17.7,   19.2,   13.6,    9.0,    3.7,   0.4,      0,      0] .* 1e4 # kcal m⁻²
tabulated_longwave  = - [10.4,   10.3,   10.3,   11.6,   15.1,   18.0,   19.1,   18.7,   16.5,  13.9,   11.2,   10.9] .* 1e4 # kcal m⁻²
tabulated_sensible  = - [1.18,   0.76,   0.72,   0.29,  -0.45,  -0.39,  -0.30,  -0.40,  -0.17,   0.1,   0.56,   0.79] .* 1e4 # kcal m⁻²
tabulated_latent    = - [   0,  -0.02,  -0.03,   -0.09, -0.46,  -0.70,  -0.64,  -0.66,  -0.39,  -0.19, -0.01,  -0.01] .* 1e4 # kcal m⁻²
12-element Vector{Float64}:
   -0.0
  200.0
  300.0
  900.0
 4600.0
 7000.0
 6400.0
 6600.0
 3900.0
 1900.0
  100.0
  100.0

We assume every month has 30 days and set up the time array:

Nmonths = 12
month_days = 30
year_days = month_days * Nmonths
times_days = 15:30:(year_days - 15)
times = times_days .* day # times in seconds
1.296e6:2.592e6:2.9808e7

Sea ice emissivity:

ϵ = 1
1

Convert fluxes to the right units (W m⁻²):

kcal_to_joules = 4184
tabulated_shortwave .*= kcal_to_joules / (month_days * days)
tabulated_longwave  .*= kcal_to_joules / (month_days * days) .* ϵ
tabulated_sensible  .*= kcal_to_joules / (month_days * days)
tabulated_latent    .*= kcal_to_joules / (month_days * days)
12-element Vector{Float64}:
 -0.0
  0.3228395061728395
  0.4842592592592593
  1.452777777777778
  7.425308641975309
 11.299382716049383
 10.330864197530865
 10.653703703703703
  6.295370370370371
  3.0669753086419753
  0.16141975308641976
  0.16141975308641976

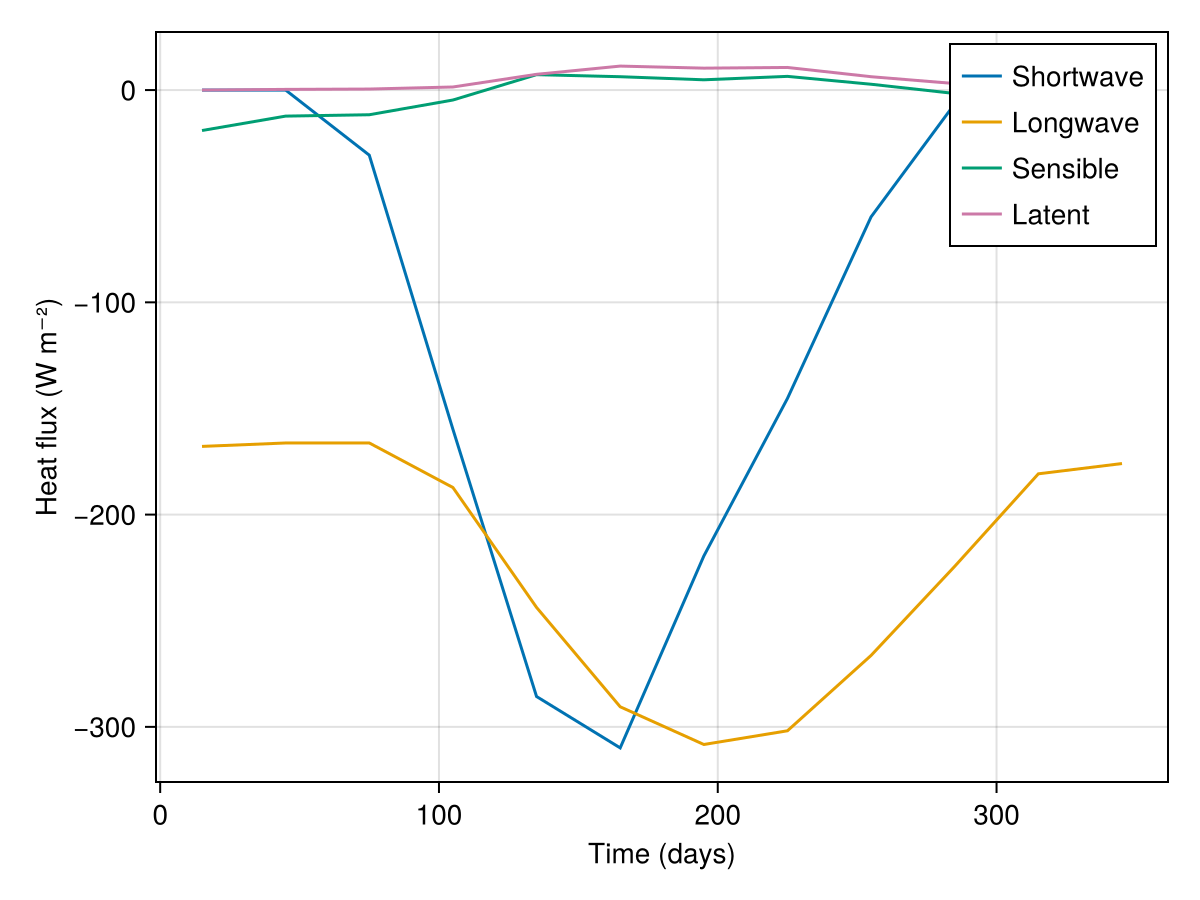

Let's visualize the forcing data:

fig = Figure()
ax = Axis(fig[1, 1], xlabel="Time (days)", ylabel="Heat flux (W m⁻²)")
lines!(ax, times ./ day, tabulated_shortwave, label="Shortwave")
lines!(ax, times ./ day, tabulated_longwave, label="Longwave")
lines!(ax, times ./ day, tabulated_sensible, label="Sensible")
lines!(ax, times ./ day, tabulated_latent, label="Latent")
axislegend(ax)
Example block output

Creating time-varying flux functions

We create FieldTimeSeries objects with cyclical indexing so the forcing repeats annually:

Rs = FieldTimeSeries{Nothing, Nothing, Nothing}(grid, times; time_indexing = Oceananigans.OutputReaders.Cyclical())
Rl = FieldTimeSeries{Nothing, Nothing, Nothing}(grid, times; time_indexing = Oceananigans.OutputReaders.Cyclical())
Qs = FieldTimeSeries{Nothing, Nothing, Nothing}(grid, times; time_indexing = Oceananigans.OutputReaders.Cyclical())
Ql = FieldTimeSeries{Nothing, Nothing, Nothing}(grid, times; time_indexing = Oceananigans.OutputReaders.Cyclical())

for (i, time) in enumerate(times)
    set!(Rs[i], tabulated_shortwave[i:i])
    set!(Rl[i], tabulated_longwave[i:i])
    set!(Qs[i], tabulated_sensible[i:i])
    set!(Ql[i], tabulated_latent[i:i])
end

We define flux functions that linearly interpolate the time series:

@inline function linearly_interpolate_flux(i, j, grid, Tₛ, clock, model_fields, flux)
    t  = Time(clock.time)
    return flux[i, j, 1, t]
end
linearly_interpolate_flux (generic function with 1 method)

For shortwave radiation, we account for surface albedo:

@inline function linearly_interpolate_solar_flux(i, j, grid, Tₛ, clock, model_fields, flux)
    Q = linearly_interpolate_flux(i, j, grid, Tₛ, clock, model_fields, flux)
    α = ifelse(Tₛ < -0.1, 0.75, 0.64) # albedo depends on surface temperature
    return Q * (1 - α)
end
linearly_interpolate_solar_flux (generic function with 1 method)
Slightly wrong value for Stefan-Boltzmann constant

Semtner (1976) uses a wrong value for the Stefan-Boltzmann constant (roughly 2% higher) to match the results of Maykut & Untersteiner (1965). We use here the same value here for comparison purposes.

σ = 5.67e-8 * 1.02 # Wrong value, but used for comparison!
5.7834e-8

We create flux functions for each component:

Q_shortwave = FluxFunction(linearly_interpolate_solar_flux, parameters=Rs)
Q_longwave  = FluxFunction(linearly_interpolate_flux,       parameters=Rl)
Q_sensible  = FluxFunction(linearly_interpolate_flux,       parameters=Qs)
Q_latent    = FluxFunction(linearly_interpolate_flux,       parameters=Ql)
Q_emission  = RadiativeEmission(emissivity=ϵ, stefan_boltzmann_constant=σ)
RadiativeEmission(emissivity = Float64, stefan_boltzmann_constant = Float64, reference_temperature = Float64)

We combine all top heat fluxes:

top_heat_flux = (Q_shortwave, Q_longwave, Q_sensible, Q_latent, Q_emission)
(FluxFunction of linearly_interpolate_solar_flux (generic function with 1 method) with parameters 1×1×1×12 FieldTimeSeries{Oceananigans.OutputReaders.InMemory} located at (⋅, ⋅, ⋅) on Oceananigans.Architectures.CPU, FluxFunction of linearly_interpolate_flux (generic function with 1 method) with parameters 1×1×1×12 FieldTimeSeries{Oceananigans.OutputReaders.InMemory} located at (⋅, ⋅, ⋅) on Oceananigans.Architectures.CPU, FluxFunction of linearly_interpolate_flux (generic function with 1 method) with parameters 1×1×1×12 FieldTimeSeries{Oceananigans.OutputReaders.InMemory} located at (⋅, ⋅, ⋅) on Oceananigans.Architectures.CPU, FluxFunction of linearly_interpolate_flux (generic function with 1 method) with parameters 1×1×1×12 FieldTimeSeries{Oceananigans.OutputReaders.InMemory} located at (⋅, ⋅, ⋅) on Oceananigans.Architectures.CPU, RadiativeEmission(emissivity = Float64, stefan_boltzmann_constant = Float64, reference_temperature = Float64))

Building the model

We assemble the model and initialize it with 30 cm of ice at full concentration:

model = SeaIceModel(grid; top_heat_flux)
set!(model, h=0.3, ℵ=1) # Start from 30 cm of ice and full concentration

Running the simulation

We run the simulation for 30 years with an 8-hour time step:

simulation = Simulation(model, Δt=8hours, stop_time=30 * 360days)
Simulation of SeaIceModel
├── Next time step: 8 hours
├── run_wall_time: 0 seconds
├── run_wall_time / iteration: NaN days
├── stop_time: 10800 days
├── stop_iteration: Inf
├── wall_time_limit: Inf
├── minimum_relative_step: 0.0
├── callbacks: OrderedDict with 3 entries:
│   ├── stop_time_exceeded => Callback of stop_time_exceeded on IterationInterval(1)
│   ├── stop_iteration_exceeded => Callback of stop_iteration_exceeded on IterationInterval(1)
│   └── wall_time_limit_exceeded => Callback of wall_time_limit_exceeded on IterationInterval(1)
└── output_writers: OrderedDict with no entries

Collecting data

We set up a callback to accumulate time series data:

series = []

function accumulate_timeseries(sim)
    T = model.ice_thermodynamics.top_surface_temperature
    h = model.ice_thickness
    ℵ = model.ice_concentration
    Qe = model.external_heat_fluxes.top
    Qe = ClimaSeaIce.SeaIceThermodynamics.HeatBoundaryConditions.getflux(Qe, 1, 1, grid, first(T), model.clock, model.ice_thickness)
    push!(series, (time(sim), first(h), first(T), first(ℵ), Qe))
end

simulation.callbacks[:save] = Callback(accumulate_timeseries)

run!(simulation)
[ Info: Initializing simulation...
[ Info:     ... simulation initialization complete (1.976 seconds)
[ Info: Executing initial time step...
[ Info:     ... initial time step complete (1.598 seconds).
[ Info: Simulation is stopping after running for 9.146 seconds.
[ Info: Simulation time 10800 days equals or exceeds stop time 10800 days.

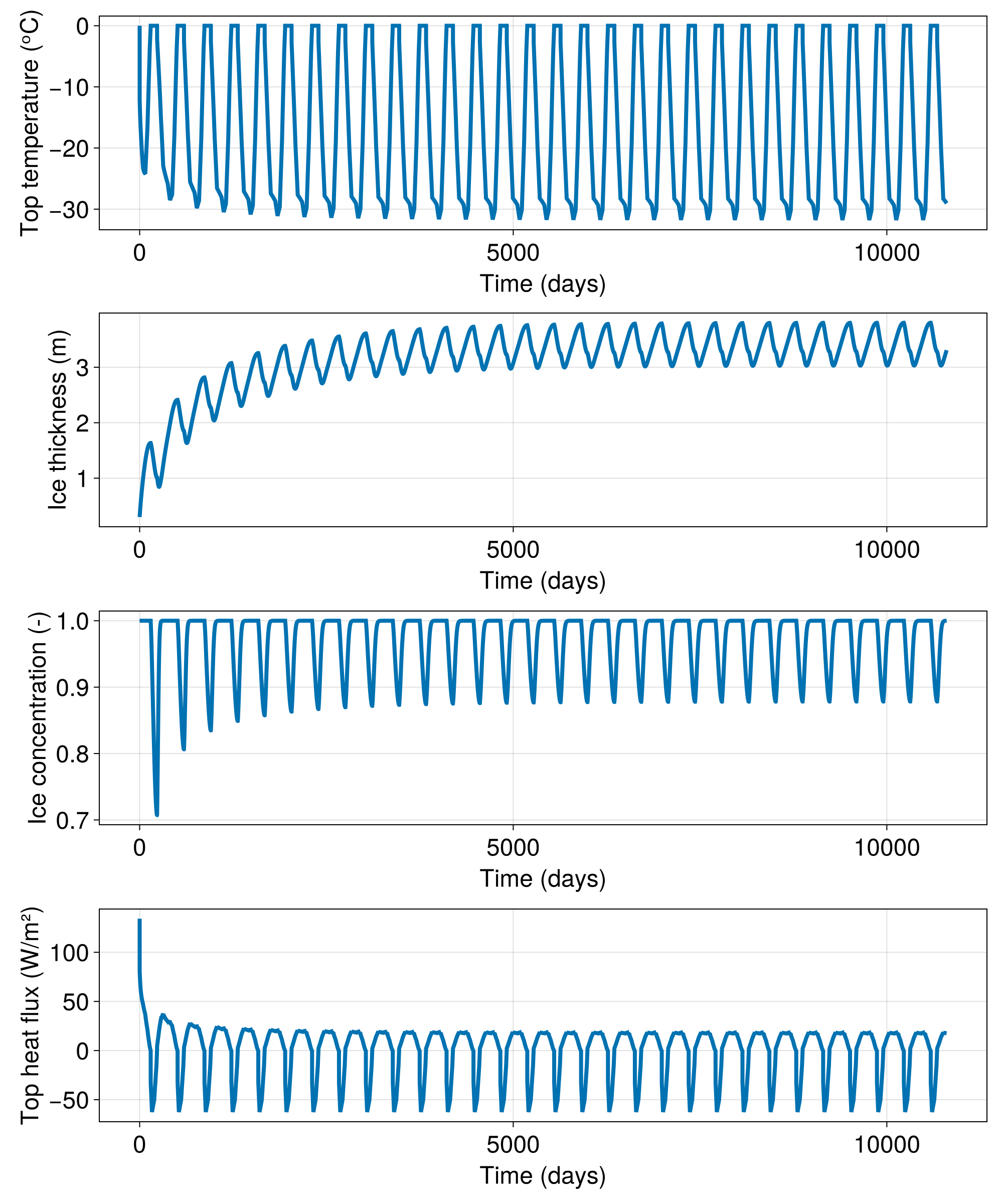

Visualizing the results

We extract the time series data and visualize the evolution:

t = [datum[1] for datum in series]
h = [datum[2] for datum in series]
T = [datum[3] for datum in series]
ℵ = [datum[4] for datum in series]
Q = [datum[5] for datum in series]

set_theme!(Theme(fontsize=24, linewidth=4))

fig = Figure(size=(1000, 1200))

axT = Axis(fig[1, 1], xlabel="Time (days)", ylabel="Top temperature (ᵒC)")
axh = Axis(fig[2, 1], xlabel="Time (days)", ylabel="Ice thickness (m)")
axℵ = Axis(fig[3, 1], xlabel="Time (days)", ylabel="Ice concentration (-)")
axQ = Axis(fig[4, 1], xlabel="Time (days)", ylabel="Top heat flux (W m⁻²)")

lines!(axT, t ./ day, T)
lines!(axh, t ./ day, h)
lines!(axℵ, t ./ day, ℵ)
lines!(axQ, t ./ day, Q)


save("ice_timeseries.png", fig)

The results show the seasonal cycle of sea ice, with ice growing in winter and melting in summer. After several years, the model reaches a quasi-equilibrium seasonal cycle.
