Conformal cubed sphere mapping

The conformal method for projecting the cube on the sphere was first described by Rančić et al. [1].

Rančić et al., (1996). A global shallow-water model using an expanded spherical cube - Gnomonic versus conformal coordinates, Quarterly Journal of the Royal Meteorological Society, 122 (532), 959-982. doi:10.1002/qj.49712253209

Imagine a cube inscribed into a sphere. Using conformal_cubed_sphere_mapping we can map the face of the cube onto the sphere. conformal_cubed_sphere_mapping maps the face that corresponds to the sphere's sector that includes the North Pole, that is, the face of the cube is oriented normal to the $z$ axis. This cube's face is parametrized with orthogonal coordinates $(x, y) \in [-1, 1] \times [-1, 1]$ with $(x, y) = (0, 0)$ being in the center of the cube's face, that is on the $z$ axis.

We can visualize the mapping.

using GLMakie
using CubedSphere

N = 16

x = range(-1, 1, length=N)
y = range(-1, 1, length=N)

X = zeros(length(x), length(y))
Y = zeros(length(x), length(y))
Z = zeros(length(x), length(y))

for (j, y′) in enumerate(y), (i, x′) in enumerate(x)
    X[i, j], Y[i, j], Z[i, j] = conformal_cubed_sphere_mapping(x′, y′)
end

fig = Figure(size = (800, 400))

ax2D = Axis(fig[1, 1],
            aspect = 1,
            title = "Cubed Sphere Panel")
ax3D = Axis3(fig[1, 2],
             aspect = (1, 1, 1), limits = ((-1, 1), (-1, 1), (-1, 1)),
             title = "Cubed Sphere Panel")

for ax in [ax2D, ax3D]
    wireframe!(ax, X, Y, Z)
end

colsize!(fig.layout, 1, Auto(0.8))
colgap!(fig.layout, 40)

current_figure()

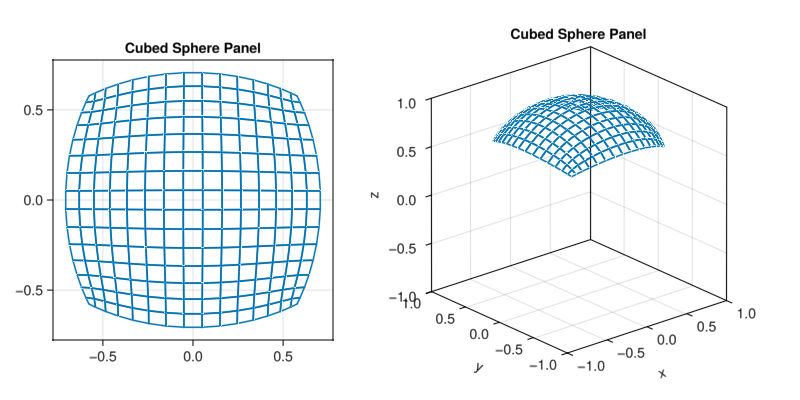

Above, we plotted the mapping from the cube's face onto the sphere both in a 2D projection (e.g., overlooking the sphere down to its North Pole) and in 3D space.

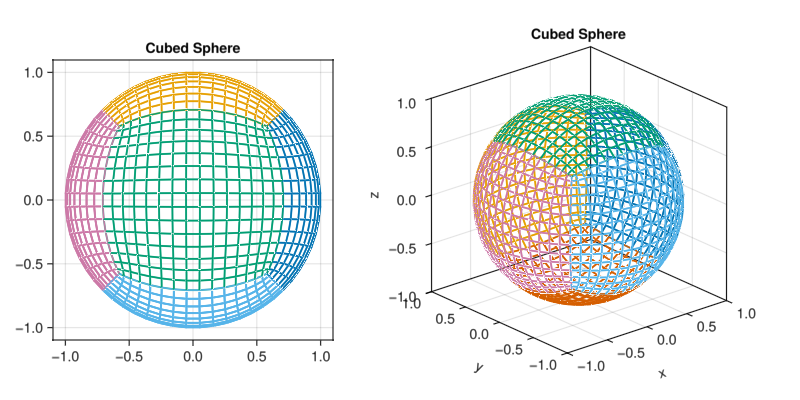

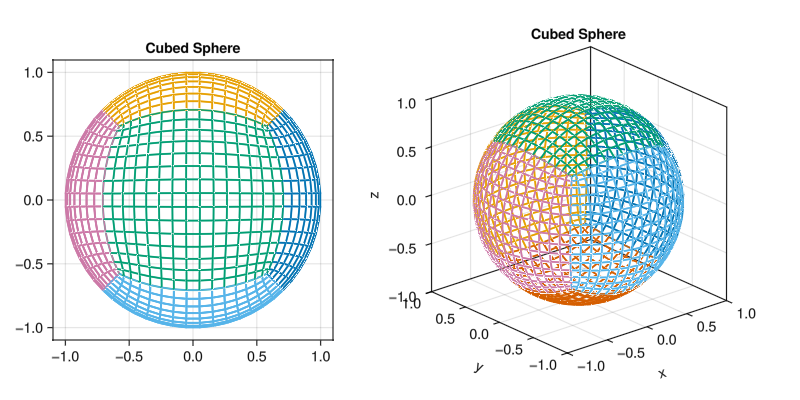

We can then use Rotations.jl to rotate the face of the sphere that includes the North Pole and obtain all six faces of the sphere.

using Rotations

fig = Figure(resolution = (800, 400))

ax2D = Axis(fig[1, 1],
            aspect = 1,
            title = "Cubed Sphere")
ax3D = Axis3(fig[1, 2],
             aspect = (1, 1, 1), limits = ((-1, 1), (-1, 1), (-1, 1)),
             title = "Cubed Sphere")

identity = one(RotMatrix{3})
rotations = (RotY(π/2), RotX(-π/2), identity, RotY(-π/2), RotX(π/2), RotX(π))

for rotation in rotations
    X′ = similar(X)
    Y′ = similar(Y)
    Z′ = similar(Z)

    for I in CartesianIndices(X)
        X′[I], Y′[I], Z′[I] = rotation * [X[I], Y[I], Z[I]]
    end

    wireframe!(ax2D, X′, Y′, Z′)
    wireframe!(ax3D, X′, Y′, Z′)
end

colsize!(fig.layout, 1, Auto(0.8))
colgap!(fig.layout, 40)

current_figure()
