EnsembleKalmanProcesses
EnsembleKalmanProcesses.jl
(EKP) is a library of derivative-free Bayesian optimization techniques based on ensemble Kalman Filters, a well known family of approximate filters used for data assimilation. The tools in this library enable fitting parameters found in expensive black-box computer codes without the need for adjoints or derivatives. This property makes them particularly useful when calibrating non-deterministic models, or when the training data are noisy.
Our processes and quick recommendations
Here are loose recommendations and rough scalability in the current implementations
- Playground option:

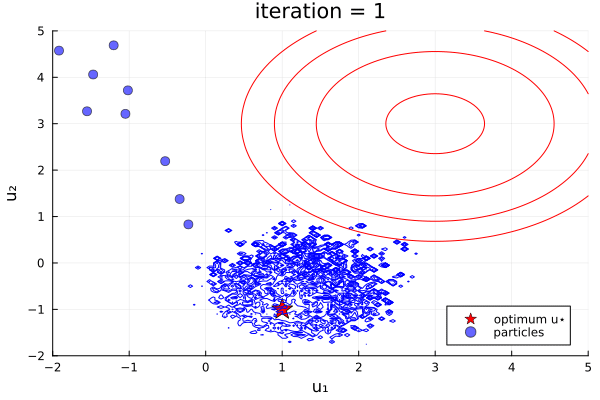

Inversion
($10^3$ inputs, $10^3$ outputs) - simple, and handles large input spaces, and very modifiable with all the bells-and-whistles of the package. - Efficient option:

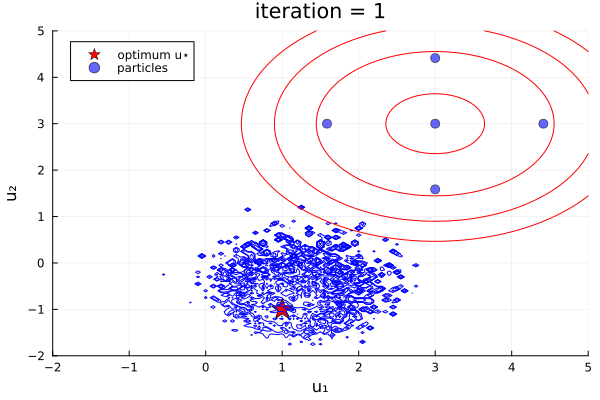

TransformUnscented
($10^1$ inputs, $10^7$ outputs) - Very efficient, and quick converging for large outputs. However, strongly couples ensemble-size to input dimension, and can not as robust to model failures and noise. - Scalable and Robust option:

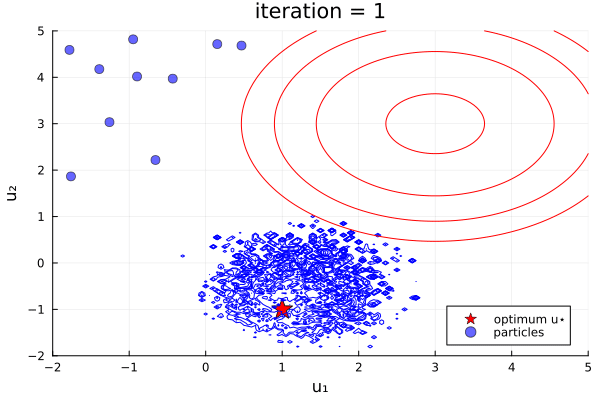

TransformInversion
($10^2$ inputs, $10^7$ outputs) - Less efficient convergence thanTransformUnscented
, but only weakly couples ensemble size with input dimension, and more robust to model failures and noise. - With uncertainty:

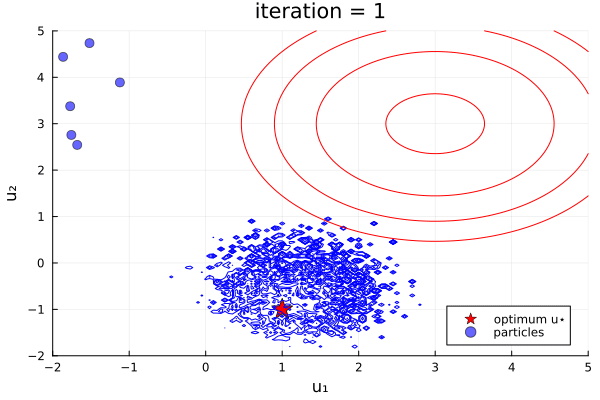

Sampler
($10^2$ inputs, $10^3$ outputs) - generally slower to converge than inversion tools, but the final ensemble spread quantifies uncertainty.
Quick links!
- How do I build prior distributions?
- How do I access parameters/outputs from the ekp object?
- How do I plot convergence errors or parameter distributions?
- How do I build good observational noise covariances
- How do I build my observations and encode batching?
- What ensemble size should I take? Which process should I use? What is the recommended configuration?
- What is the difference between
get_u
andget_ϕ
? Why do the stored parameters apperar to be outside their bounds? - What can be parallelized? How do I do it in Julia?
- What is going on in my own code?
- What is this error/warning/message?
- Where can i walk through a simple example?
Learning the amplitude and vertical shift of a sine curve See full example for the code.
The library
Currently, the following processes are implemented in the library. More details given on respective pages:

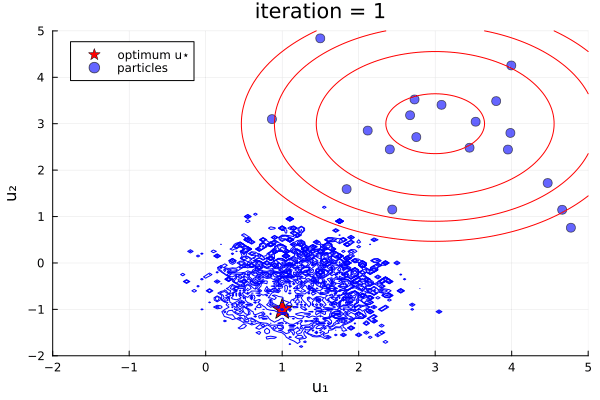

Inversion()
creates Ensemble Kalman Inversion (EKI) "finite time" - The traditional optimization technique based on the (perturbed-observation-based) Ensemble Kalman Filter EnKF (Iglesias, Law, Stuart, 2013). This takes a transport view, initializing ensembles at the prior, and the posterior mode and (roughty-approximated) uncertainty) are estimated at finite algorithm time.

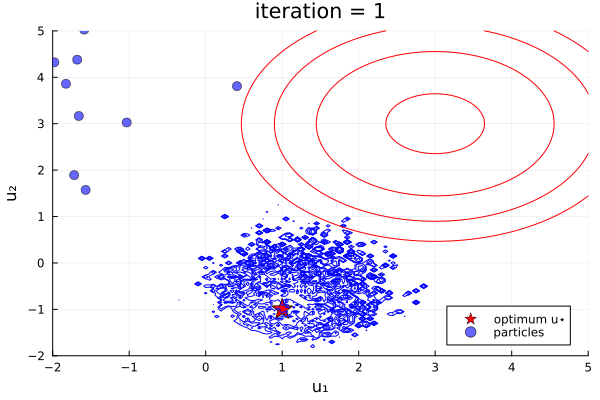

Inversion(prior)
creates Ensemble Kalman Inversion (EKI) "infinite time" - EKI with an augmented state that enforces the prior, (e.g., TEKI Chada, Stuart, Tong). Can be initialized off-the-prior, and ensemble collapses to the posterior mode at infinite algorithm time (e.g., Section 4.5 of Calvello, Reich, Stuart).

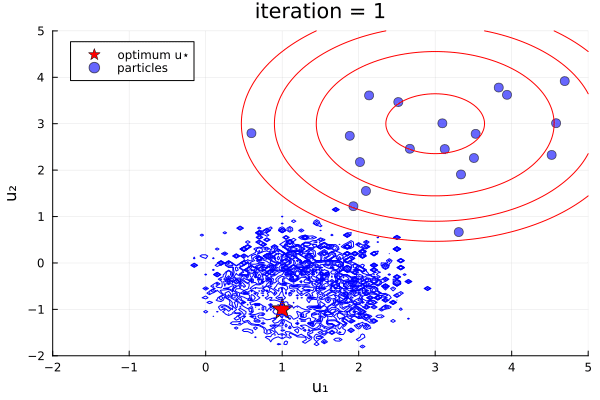

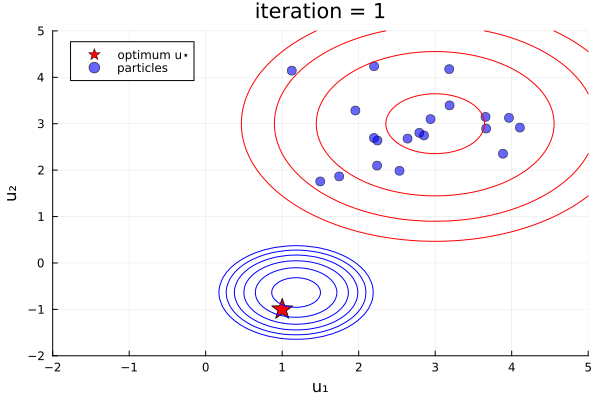

TransformInversion()
Ensemble Transform Kalman Inversion (ETKI) "finite time" - An optimization technique based on the (square-root-based) ensemble transform Kalman filter (Bishop et al., 2001, Huang et al., 2022).

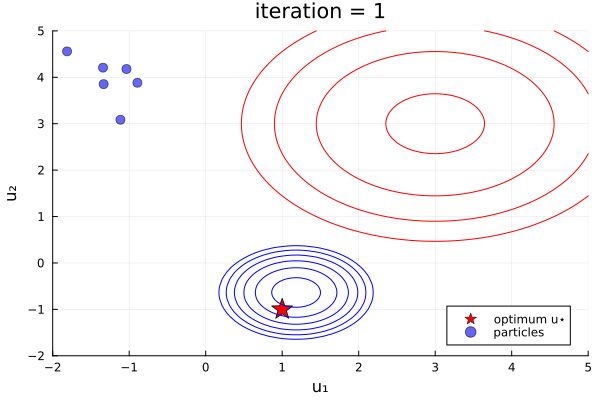

TransformInversion(prior)
Ensemble Transform Kalman Inversion (ETKI) "infinite time" - ETKI with an augmented state that enforces the prior. (see EKI "infinite time")

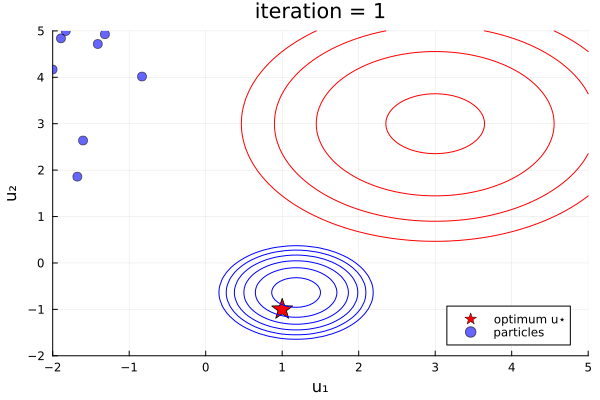

GaussNewtonInversion(prior)
Gauss Newton Kalman Inversion (GNKI) [a.k.a. Iterative Ensemble Kalman Filter with Satistical Linearization] - An optimization technique based on the Gauss Newton optimization update and the iterative extended Kalman filter (Chada et al., 2021, Chen & Oliver, 2013),


Sampler(prior)
Ensemble Kalman Sampler (EKS) - also obtains a Gaussian Approximation of the posterior distribution, through a Monte Carlo integration (Garbuno-Inigo, Hoffmann, Li, Stuart, 2020),

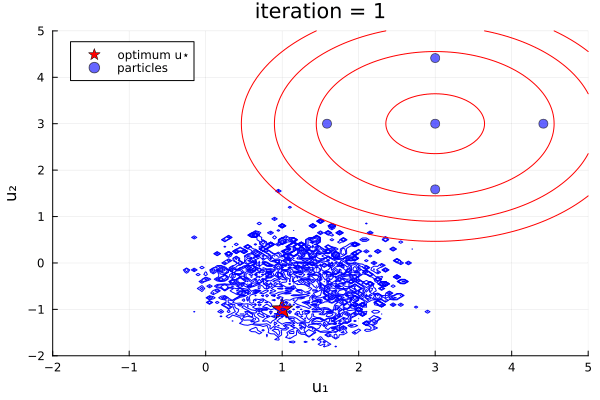

Unscented(prior)
Unscented Kalman Inversion (UKI) - also obtains a Gaussian Approximation of the posterior distribution, through a quadrature based integration approach (Huang, Schneider, Stuart, 2022),

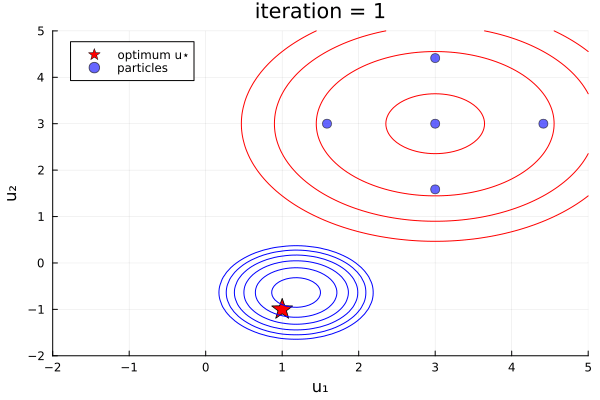

TransformUnscented(prior)
Unscented Kalman Inversion (UKI) - An implementation of the UKI algorithm based on the linear-algebra tricks of the square-root filter (see ETKI).


SparseInversion(prior)
Sparsity-inducing Ensemble Kalman Inversion (SEKI) - Additionally adds approximate $L^0$ and $L^1$ penalization to the EKI (Schneider, Stuart, Wu, 2020).
Module | Purpose |
---|---|
EnsembleKalmanProcesses.jl | Collection of all tools |
EnsembleKalmanProcess.jl | Implementations of EKI, ETKI, EKS, UKI, and SEKI |
Observations.jl | Structure to hold observational data and minibatching |
ParameterDistributions.jl | Structures to hold prior and posterior distributions |
DataContainers.jl | Structure to hold model parameters and outputs |
Localizers.jl | Covariance localization kernels |
Authors
EnsembleKalmanProcesses.jl
is being developed by the Climate Modeling Alliance. The main developers are Oliver R. A. Dunbar and Ignacio Lopez-Gomez.
