Grids

Oceananigans simulates the dynamics of ocean-flavored fluids by solving equations that conserve momentum, mass, and energy on a grid of finite volumes or "cells". The first decision we make when setting up a simulation is: on what grid are we going to run our simulation? The "grid" captures the

  1. The geometry of the physical domain;
  2. The way that domain is divided into a mesh of finite volumes;
  3. The machine architecture (CPU, GPU, lots of CPUs or lots of GPUs); and
  4. The precision of floating point numbers (double precision or single precision).

We start by making a simple grid that divides a three-dimensional rectangular domain – "a box" – into evenly-spaced cells,

using Oceananigans

grid = RectilinearGrid(topology = (Periodic, Periodic, Bounded),
                       size = (16, 8, 4),
                       x = (0, 64),
                       y = (0, 32),
                       z = (0, 8))

# output
16×8×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 3×3×3 halo
├── Periodic x ∈ [0.0, 64.0) regularly spaced with Δx=4.0
├── Periodic y ∈ [0.0, 32.0) regularly spaced with Δy=4.0
└── Bounded  z ∈ [0.0, 8.0]  regularly spaced with Δz=2.0

This simple grid

  • Has a domain that's "periodic" in $x, y$, but bounded in $z$.
  • Has 16 cells in x, 8 cells in y, and 4 cells in z. That means there are $16 \times 8 \times 4 = 512$ cells in all.
  • Has an x dimension that spans from x=0, to x=64. And y spans y=0 to y=32, and z spans z=0 to z=8.
  • Has cells that are all the same size, dividing the box in 512 that each has dimension $4 \times 4 \times 2$. Note that length units are whatever is used to construct the grid, so it's up to the user to make sure that all inputs use consistent units.

In building our first grid, we did not specify whether it should be constructed on the CPU or GPU. As a result, the grid was constructed by default on the CPU. Next we build a grid on the GPU that's two-dimensional in $x, z$ and has variably-spaced cell interfaces in the z-direction,

using CUDA
architecture = GPU()
z_faces = [0, 1, 3, 6, 10]

grid = RectilinearGrid(architecture,
                       topology = (Periodic, Flat, Bounded),
                       size = (10, 4),
                       x = (0, 20),
                       z = z_faces)

# output
10×1×4 RectilinearGrid{Float64, Periodic, Flat, Bounded} on CUDAGPU with 3×0×3 halo
├── Periodic x ∈ [0.0, 20.0) regularly spaced with Δx=2.0
├── Flat y
└── Bounded  z ∈ [0.0, 10.0] variably spaced with min(Δz)=1.0, max(Δz)=4.0
GPU architecture requires a CUDA-, ROC- or Metal-enabled device

Running this example and creating a grid on the GPU requires a device that supports CUDA, ROC, or Metal. In other words, you must have an Nvidia, AMD, or Apple-compatible GPU available. For more information about CUDA, see the CUDA.jl documentation.

The $y$-dimension is "missing" because it's marked Flat in topology = (Periodic, Flat, Bounded). So nothing varies in $y$: y-derivatives are 0. Also, the keyword argument (or "kwarg" for short) that specifies the $y$-domains may be omitted, and size has only two elements rather than 3 as in the first example. In the stretched cell interfaces specified by z_interfaces, the number of vertical cell interfaces is Nz + 1 = length(z_interfaces) = 5, where Nz = 4 is the number of cells in the vertical.

A bit later in this tutorial, we'll give examples that illustrate how to build a grid thats Distributed across multiple CPUs and GPUs.

Grid types: squares, shells, and mountains

The shape of the physical domain determines what grid type should be used:

  1. RectilinearGrid can be fashioned into lines, rectangles and boxes.
  2. LatitudeLongitudeGrid represents sectors of thin spherical shells, with cells bounded by lines of constant latitude and longitude.
  3. OrthogonalSphericalShellGrid represents sectors of thin spherical shells divided with mesh lines that intersect at right angles (thus, orthogonal) but are otherwise arbitrary.
OrthogonalSphericalShellGrids

See the auxiliary module OrthogonalSphericalShellGrids for recipes that implement some useful OrthogonalSphericalShellGrids, including the "tripolar" grid.

For example, to make a LatitudeLongitudeGrid that wraps around the sphere, extends for 60 degrees latitude on either side of the equator, and has 5 vertical levels down to 1000 meters, we write

architecture = CPU()

grid = LatitudeLongitudeGrid(architecture,
                             size = (180, 10, 5),
                             longitude = (-180, 180),
                             latitude = (-60, 60),
                             z = (-1000, 0))

# output
180×10×5 LatitudeLongitudeGrid{Float64, Periodic, Bounded, Bounded} on CPU with 3×3×3 halo and with precomputed metrics
├── longitude: Periodic λ ∈ [-180.0, 180.0) regularly spaced with Δλ=2.0
├── latitude:  Bounded  φ ∈ [-60.0, 60.0]   regularly spaced with Δφ=12.0
└── z:         Bounded  z ∈ [-1000.0, 0.0]  regularly spaced with Δz=200.0

The main difference between the syntax for LatitudeLongitudeGrid versus that for the RectilinearGrid are the names of the horizontal coordinates: LatitudeLongitudeGrid has longitude and latitude where RectilinearGrid has x and y.

Extrinsic and intrinsic coordinate systems

Every grid is associated with an "extrinsic" coordinate system: RectilinearGrid uses a Cartesian coordinate system (x, y, z), while LatitudeLongitudeGrid and OrthogonalSphericalShellGrid use the geographic coordinates (λ, φ, z), where λ is longitude, φ is latitude, and z is height. Additionally, OrthogonalSphericalShellGrid has an "intrinsic" coordinate system associated with the orientation of its finite volumes (which, in general, are not aligned with geographic coordinates).

To type λ or φ at the REPL, write either \lambda (for λ) or \varphi (for φ) and then press <TAB>.

If topology is not provided for LatitudeLongitudeGrid, then Oceananigans tries infer it: if the longitude spans 360 degrees, the default x-topology is Periodic; if longitude spans less than 360 degrees x-topology is Bounded.

For example,

grid = LatitudeLongitudeGrid(size = (60, 10, 5),
                             longitude = (0, 60),
                             latitude = (-60, 60),
                             z = (-1000, 0))

# output
60×10×5 LatitudeLongitudeGrid{Float64, Bounded, Bounded, Bounded} on CPU with 3×3×3 halo and with precomputed metrics
├── longitude: Bounded  λ ∈ [0.0, 60.0]    regularly spaced with Δλ=1.0
├── latitude:  Bounded  φ ∈ [-60.0, 60.0]  regularly spaced with Δφ=12.0
└── z:         Bounded  z ∈ [-1000.0, 0.0] regularly spaced with Δz=200.0

is Bounded by default, because longitude = (0, 60).

LatitudeLongitudeGrid topologies

It's still possible to use topology = (Periodic, Bounded, Bounded) even if longitude doesn't span 360 degrees. But neither latitude nor z may be Periodic with LatitudeLongitudeGrid.

Bathymetry, topography, and other irregularities

Irregular or "complex" domains are represented with ImmersedBoundaryGrid, which combines one of the above underlying grids with a type of immersed boundary. The immersed boundaries currently supported are:

  1. GridFittedBottom, which fits a one- or two-dimensional bottom height to the underlying grid, so the active part of the domain is above the bottom height.
  2. PartialCellBottom, which is similar to GridFittedBottom, except that the height of the bottommost cell is changed to conform to bottom height, limited to prevent the bottom cells from becoming too thin.
  3. GridFittedBoundary, which fits a three-dimensional mask to the grid.

To build an ImmersedBoundaryGrid, we start by building one of the three underlying grids, and then embedding a boundary into that underlying grid.

using Oceananigans.Units

grid = RectilinearGrid(topology = (Bounded, Bounded, Bounded),
                       size = (20, 20, 20),
                       x = (-5kilometers, 5kilometers),
                       y = (-5kilometers, 5kilometers),
                       z = (0, 1kilometer))

# Height and width
H = 100meters
W = 1kilometer

mountain(x, y) = H * exp(-(x^2 + y^2) / 2W^2)
mountain_grid = ImmersedBoundaryGrid(grid, GridFittedBottom(mountain))

# output
20×20×20 ImmersedBoundaryGrid{Float64, Bounded, Bounded, Bounded} on CPU with 3×3×3 halo:
├── immersed_boundary: GridFittedBottom(mean(z)=4.5, min(z)=0.0, max(z)=100.0)
├── underlying_grid: 20×20×20 RectilinearGrid{Float64, Bounded, Bounded, Bounded} on CPU with 3×3×3 halo
├── Bounded  x ∈ [-5000.0, 5000.0] regularly spaced with Δx=500.0
├── Bounded  y ∈ [-5000.0, 5000.0] regularly spaced with Δy=500.0
└── Bounded  z ∈ [0.0, 1000.0]     regularly spaced with Δz=50.0

Yep, that's a Gaussian mountain:

using CairoMakie

h = mountain_grid.immersed_boundary.bottom_height

fig = Figure()
ax = Axis(fig[2, 1], xlabel="x (m)", ylabel="y (m)", aspect=1)
hm = heatmap!(ax, h)
Colorbar(fig[1, 1], hm, vertical=false, label="Bottom height (m)")

fig
Example block output

Once more with feeling

In summary, making a grid requires

  • The machine architecture, or whether data is stored on the CPU, GPU, or distributed across multiple devices or nodes.
  • Information about the domain geometry. Domains can take a variety of shapes, including
    • lines (one-dimensional),
    • rectangles (two-dimensional),
    • boxes (three-dimensional),
    • sectors of a thin spherical shells (two- or three-dimensional).
    Irregular domains – such as domains that include bathymetry or topography – are represented by using a masking technique to "immerse" an irregular boundary within an "underlying" regular grid. Part of specifying the shape of the domain also requires specifying the nature of each dimension, which may be
    • Periodic, which means that the dimension circles back onto itself: information leaving the left side of the domain re-enters on the right.
    • Bounded, which means that the two sides of the dimension are either impenetrable (solid walls), or "open", representing a specified external state.
    • Flat, which means nothing can vary in that dimension, reducing the overall dimensionality of the grid.
  • Defining the number of cells that divide each dimension. The number of cells, with or without explicit specification of the cell interfaces, determines the spatial resolution of the grid.
  • The representation of floating point numbers, which can be single-precision (Float32) or double precision (Float64).

Let's dive into each of these options in more detail.

Specifying the machine architecture

The positional argument CPU() or GPU(), specifies the "architecture" of the simulation. By using architecture = GPU(), any fields constructed on grid store their data on an Nvidia GPU, if one is available. By default, the grid will be constructed on the CPU if this argument is omitted. So, for example,

grid     = RectilinearGrid(size=3, z=(0, 1), topology=(Flat, Flat, Bounded))
cpu_grid = RectilinearGrid(CPU(), size=3, z=(0, 1), topology=(Flat, Flat, Bounded))

grid == cpu_grid

# output
true

To use more than one CPU, we use the Distributed architecture,

using Oceananigans

child_architecture = CPU()
architecture = Distributed(child_architecture)
Distributed{CPU} across 1 rank:
├── local_rank: 0 of 0-0
├── local_index: [1, 1, 1]
└── connectivity:

which allows us to distributed computations across either CPUs or GPUs. In this case, we didn't launch julia on multiple processes using MPI, so we're only "distributed" across 1 process. For more, see Distributed grids.

Specifying the topology for each dimension

The keyword argument topology determines if the grid is one-, two-, or three-dimensional (the current case), and additionally specifies the nature of each dimension. topology is always a Tuple with three elements (a 3-Tuple). For RectilinearGrid, the three elements correspond to $(x, y, z)$ and indicate whether the respective direction is Periodic, Bounded, or Flat. A few more examples are,

topology = (Periodic, Periodic, Periodic) # triply periodic
topology = (Periodic, Periodic, Bounded)  # periodic in x, y, bounded in z
topology = (Periodic, Bounded, Bounded)   # periodic in x, but bounded in y, z (a "channel")
topology = (Bounded, Bounded, Bounded)    # bounded in x, y, z (a closed box)
topology = (Periodic, Periodic, Flat)     # two-dimensional, doubly-periodic in x, y (a torus)
topology = (Periodic, Flat, Flat)         # one-dimensional, periodic in x (a line)
topology = (Flat, Flat, Bounded)          # one-dimensional and bounded in z (a single column)

Specifying the size of the grid

The size is a Tuple that specifies the number of grid points in each direction. The number of tuple elements corresponds to the number of dimensions that are not Flat.

The halo size

An additional keyword argument halo allows us to set the number of "halo cells" that surround the core "interior" grid. The default is 3 for each non-flat coordinate. But we can change the halo size, for example,

big_halo_grid = RectilinearGrid(topology = (Periodic, Periodic, Flat),
                                size = (32, 16),
                                halo = (7, 7),
                                x = (0, 2π),
                                y = (0, π))

# output
32×16×1 RectilinearGrid{Float64, Periodic, Periodic, Flat} on CPU with 7×7×0 halo
├── Periodic x ∈ [-6.90805e-17, 6.28319) regularly spaced with Δx=0.19635
├── Periodic y ∈ [-1.07194e-16, 3.14159) regularly spaced with Δy=0.19635
└── Flat z

The halo size has to be set for certain advection schemes that require more halo points than the default 3 in every direction. Note that both size and halo are 2-Tuples, rather than the 3-Tuple that would be required for a three-dimensional grid, or the single number that would be used for a one-dimensional grid.

The dimensions: x, y, z for RectilinearGrid, or latitude, longitude, z for LatitudeLongitudeGrid

These keyword arguments specify the extent and location of the finite volume cells that divide up the three dimensions of the grid. For RectilinearGrid, the dimensions are called x, y, and z, whereas for LatitudeLongitudeGrid the dimensions are called latitude, longitude, and z. The type of each keyword argument determines how the dimension is divided up:

  • Tuples that specify only the end points indicate that the dimension should be divided into equally-spaced cells. For example, x = (0, 64) with size = (16, 8, 4) means that the x-dimension is divided into 16 cells, where the first or leftmost cell interface is located at x = 0 and the last or rightmost cell interface is located at x = 64. The width of each cell is Δx=4.0.
  • Vectors and functions alternatively give the location of each cell interface, and thereby may be used to build grids that are divided into cells of varying width.

A complicated example: three-dimensional RectilinearGrid with variable spacing via functions

Next we build a grid that is both Bounded and stretched in both the y and z directions. The purpose of the stretching is to increase grid resolution near the boundaries. We'll do this by using functions to specify the keyword arguments y and z.

Nx = Ny = 64
Nz = 32

Lx = Ly = 1e4
Lz = 1e3

# Note that j varies from 1 to Ny
chebychev_spaced_y_faces(j) = Ly * (1 - cos(π * (j - 1) / Ny)) / 2

# Note that k varies from 1 to Nz
chebychev_spaced_z_faces(k) = - Lz * (1 + cos(π * (k - 1) / Nz)) / 2

grid = RectilinearGrid(size = (Nx, Ny, Nz),
                       topology = (Periodic, Bounded, Bounded),
                       x = (0, Lx),
                       y = chebychev_spaced_y_faces,
                       z = chebychev_spaced_z_faces)

# output
64×64×32 RectilinearGrid{Float64, Periodic, Bounded, Bounded} on CPU with 3×3×3 halo
├── Periodic x ∈ [0.0, 10000.0)  regularly spaced with Δx=156.25
├── Bounded  y ∈ [0.0, 10000.0]  variably spaced with min(Δy)=6.02272, max(Δy)=245.338
└── Bounded  z ∈ [-1000.0, -0.0] variably spaced with min(Δz)=2.40764, max(Δz)=49.0086

We can easily visualize the spacings of $y$ and $z$ directions. We can use, e.g., ynodes and yspacings to extract the positions and spacings of the nodes from the grid.

yc = ynodes(grid, Center())
zc = znodes(grid, Center())

yf = ynodes(grid, Face())
zf = znodes(grid, Face())

Δy = yspacings(grid, Center())
Δz = zspacings(grid, Center())

using CairoMakie

fig = Figure(size=(1000, 1000))

axy = Axis(fig[1, 1], title="y-grid")
lines!(axy, [0, Ly], [0, 0], color=:gray)
scatter!(axy, yf, 0 * yf, marker=:vline, color=:gray, markersize=25)
scatter!(axy, yc, 0 * yc)
hidedecorations!(axy)
hidespines!(axy)

axΔy = Axis(fig[2, 1]; xlabel = "y (m)", ylabel = "y-spacing (m)")
scatter!(axΔy, yc, Δy)
hidespines!(axΔy, :t, :r)

axz = Axis(fig[3, 1], title="z-grid")
lines!(axz, [-Lz, 0], [0, 0], color=:gray)
scatter!(axz, zf, 0 * zf, marker=:vline, color=:gray, markersize=25)
scatter!(axz, zc, 0 * zc)
hidedecorations!(axz)
hidespines!(axz)

axΔz = Axis(fig[4, 1]; xlabel = "z (m)", ylabel = "z-spacing (m)")
scatter!(axΔz, zc, Δz)
hidespines!(axΔz, :t, :r)

rowsize!(fig.layout, 1, Relative(0.1))
rowsize!(fig.layout, 3, Relative(0.1))

fig
Example block output

Inspecting LatitudeLongitudeGrid cell spacings

grid = LatitudeLongitudeGrid(size = (1, 44),
                             longitude = (0, 1),
                             latitude = (0, 88),
                             topology = (Bounded, Bounded, Flat))

Δx = xspacings(grid, Center(), Center())

using CairoMakie

fig = Figure()

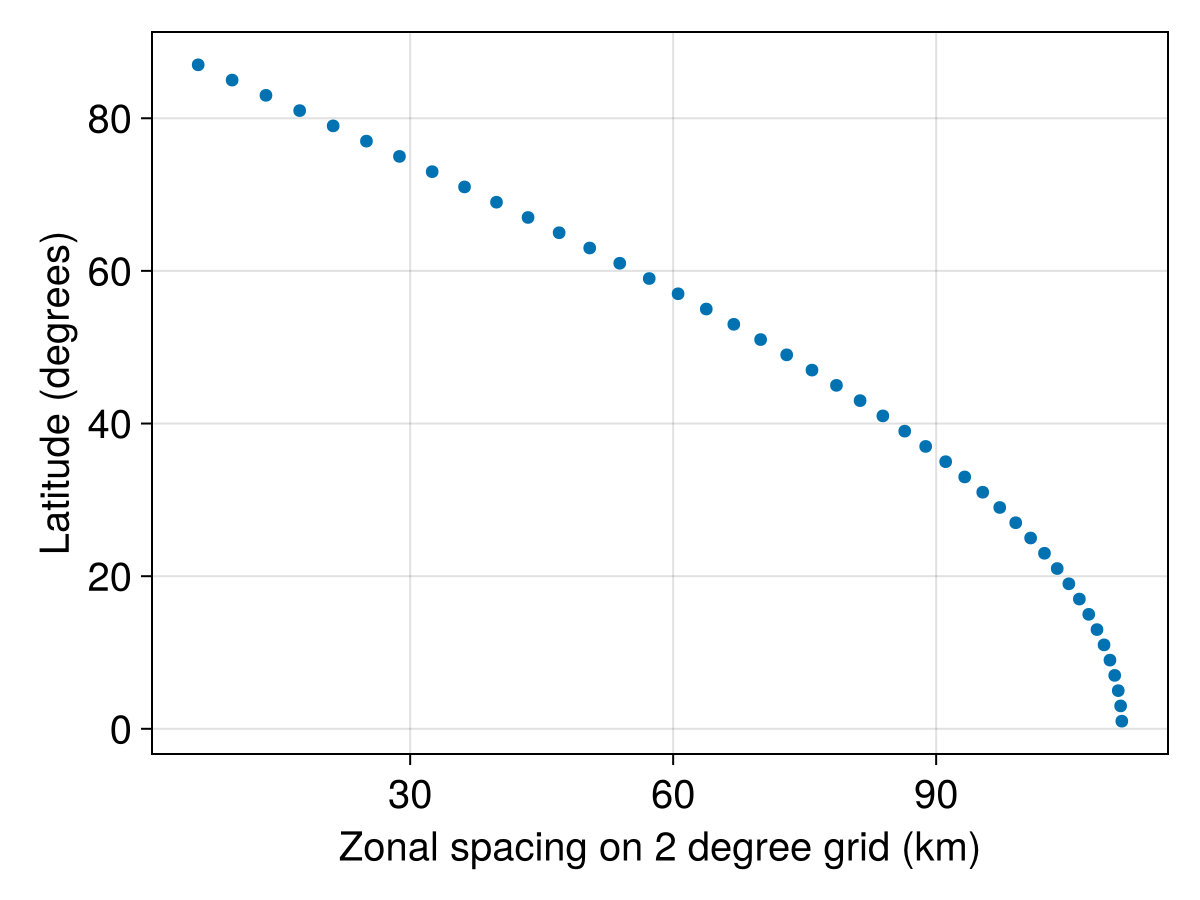

ax = Axis(fig[1, 1], xlabel="Zonal spacing on 2 degree grid (km)", ylabel="Latitude (degrees)")
scatter!(ax, Δx / 1e3)
fig
Example block output

LatitudeLongitudeGrid with variable spacing

The syntax for building a grid with variably-spaced cells is the same as for RectilinearGrid. In our next example, we use a function to build a Mercator grid with a spacing of 2 degrees at the equator,

# Mercator scale factor
scale_factor(φ) = 1 / cosd(φ)

# Compute cell interfaces with Mercator spacing
m = 2 # spacing at the equator in degrees
function latitude_faces(j)
    if j == 1 # equator
        return 0
    else # crudely estimate the location of the jth face
        φ₋ = latitude_faces(j-1)
        φ′ = φ₋ + m * scale_factor(φ₋) / 2
        return φ₋ + m * scale_factor(φ′)
    end
end

Lx = 360
Nx = Int(Lx / m)
Ny = findfirst(latitude_faces.(1:Nx) .> 90) - 2

grid = LatitudeLongitudeGrid(size = (Nx, Ny),
                             longitude = (0, Lx),
                             latitude = latitude_faces,
                             topology = (Bounded, Bounded, Flat))

# output
180×28×1 LatitudeLongitudeGrid{Float64, Bounded, Bounded, Flat} on CPU with 3×3×0 halo and with precomputed metrics
├── longitude: Bounded  λ ∈ [0.0, 360.0]   regularly spaced with Δλ=2.0
├── latitude:  Bounded  φ ∈ [0.0, 77.2679] variably spaced with min(Δφ)=2.0003, max(Δφ)=6.95319
└── z:         Flat z

We've also illustrated the construction of a grid that is Flat in the vertical direction. Now let's plot the metrics for this grid,

φ = φnodes(grid, Center())
Δx = xspacings(grid, Center(), Center())[1, 1:Ny]
Δy = yspacings(grid, Center(), Center())[1, 1:Ny]

using CairoMakie

fig = Figure(size=(800, 400), title="Spacings on a Mercator grid")
axx = Axis(fig[1, 1], xlabel="Zonal spacing (km)", ylabel="Latitude (degrees)")
scatter!(axx, Δx / 1e3, φ)

axy = Axis(fig[1, 2], xlabel="Meridional spacing (km)")
scatter!(axy, Δy / 1e3, φ)

hidespines!(axx, :t, :r)
hidespines!(axy, :t, :l, :r)
hideydecorations!(axy, grid=false)

fig
Example block output

Coordinate helper utilities

As described above, to construct grids with stretched coordinates we need to provide as input either a function the returns the coordinate's interfaces or an array with the interfaces.

Here we further showcase some helper utilities that can be used to define few special types of coordinates with variable spacings.

Exponential coordinate

ExponentialCoordinate returns a coordinate with interfaces that lie on an exponential profile. By that, we mean that a uniformly discretized domain in the range $[l, r]$ is mapped back onto itself via either

\[ξ \mapsto w(ξ) = r - (r - l) \frac{\exp{[(r - ξ) / h]} - 1}{\exp{[(r - l) / h]} - 1} \quad \text{(right biased)}\]

or

\[ξ \mapsto w(ξ) = l + (r - l) \frac{\exp{[(ξ - l) / h]} - 1}{\exp{[(r - l) / h]} - 1} \quad \text{(left biased)}\]

The exponential mappings above have an e-folding controlled by scale $h$. It's worth noting that the exponential maps imply that the cell widths (distances between interfaces) grow linearly at a rate inversely proportional to $h / (r - l)$.

The right-biased map biases the interfaces being closer towards $r$; the left-biased map biases the interfaces towards $l$.

At the limit $h / (r - l) \to \infty$ both mappings reduce to identity ($w \to ξ$) and thus the grid becomes uniformly spaced.

using Oceananigans.Grids: rightbiased_exponential_mapping, leftbiased_exponential_mapping

using CairoMakie

l, r = 0, 1

ξ  = range(l, stop=r, length=501)
ξp = range(l, stop=r, length=6)   # coarser for plotting

fig = Figure(size=(1200, 550))

axis_labels = (xlabel="uniform coordinate ξ / (r-l)",
               ylabel="mapped coordinate w / (r-l)")

axl = Axis(fig[1, 1]; title="left-biased map", axis_labels...)
axr = Axis(fig[1, 2]; title="right-biased map", axis_labels...)

for scale in (1/20, 1/5, 1/2, 1e12)
    label = "h / (r-l) = $scale"

    lines!(axl, ξ, leftbiased_exponential_mapping.(ξ, l, r, scale); label)
    scatter!(axl, ξp, leftbiased_exponential_mapping.(ξp, l, r, scale), markersize=20)

    lines!(axr, ξ, rightbiased_exponential_mapping.(ξ, l, r, scale); label)
    scatter!(axr, ξp, rightbiased_exponential_mapping.(ξp, l, r, scale), markersize=20)
end

Legend(fig[2, :], axl, orientation = :horizontal)

fig

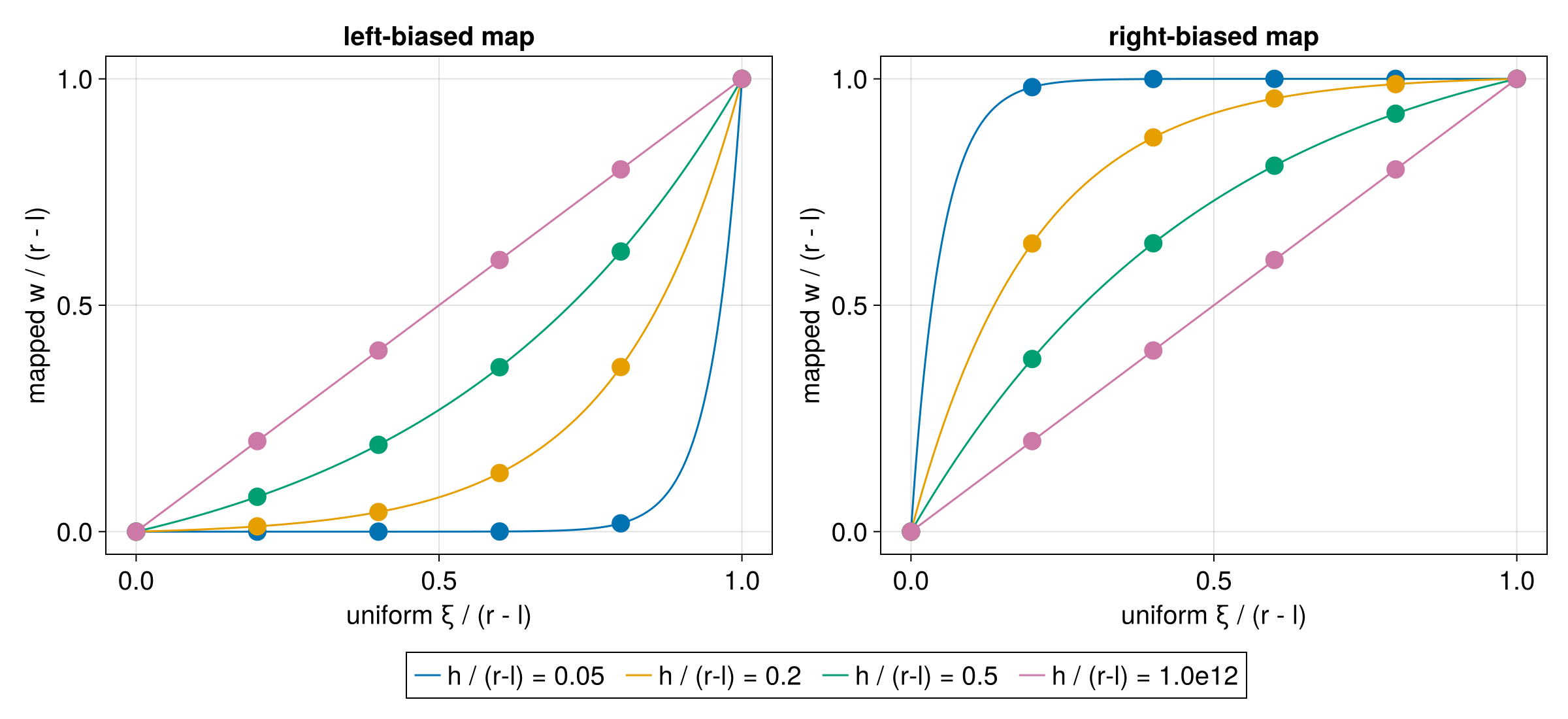

Example block output

Note that the smallest the ratio $h / (r - l)$ is, the more finely-packed are the mapped points towards the left or right side of the domain.

Let's see how we use ExponentialCoordinate. Below we construct a coordinate with 10 cells that spans the range $[-700, 300]$. By default, the ExponentialCoordinate is right-biased.

using Oceananigans

N = 10
l = -700
r = 300

x = ExponentialCoordinate(N, l, r)
ExponentialCoordinate
├─ size: 10
├─ left: -700.0
├─ right: 300.0
├─ scale: 200.0
└─ bias: :right

Note that above, the default e-folding scale (scale = (r - l) / 5) was used.

We can inspect the interfaces of the coordinate via

[x(i) for i in 1:N+1]
11-element Vector{Float64}:
 -700.0
 -303.8614994919127
  -63.59135344116919
   82.13985675223907
  170.53030381156742
  224.14181997875644
  256.6588482478361
  276.3814228557754
  288.3437690439604
  295.59929876919114
  300.0

Being right-biased, note above how the interfaces are closer together near $r$.

To demonstrate how the scale $h$ affects the coordinate, we construct below two such exponential coordinates: the first with $h / (r - l) = 1/5$ and the second with $h / (r - l) = 1/2$.

using Oceananigans

N = 10
l = -700
r = 300
extent = r - l

using CairoMakie

fig = Figure(size=(1000, 1000))

scale = extent / 5
x = ExponentialCoordinate(N, l, r; scale)
grid = RectilinearGrid(; size=N, x, topology=(Bounded, Flat, Flat))
xc = xnodes(grid, Center())
xf = xnodes(grid, Face())
Δx = xspacings(grid, Center())

axx1 = Axis(fig[1, 1],  title = "scale = extent / 5")
lines!(axx1, [l, r], [0, 0], color=:gray)
scatter!(axx1, xf, 0 * xf, marker=:vline, color=:gray, markersize=25)
scatter!(axx1, xc, 0 * xc)
axΔx1 = Axis(fig[2, 1]; xlabel = "x (m)", ylabel = "x-spacing (m)")
lΔx = lines!(axΔx1, xf, Δx[1] .+ (xc[1] .- xf) * (extent / scale) / N, color=(:purple, 0.3), linewidth=4)
scatter!(axΔx1, xc, Δx)


scale = extent / 2
x = ExponentialCoordinate(N, l, r; scale)
grid = RectilinearGrid(; size=N, x, topology=(Bounded, Flat, Flat))
xc = xnodes(grid, Center())
xf = xnodes(grid, Face())
Δx = xspacings(grid, Center())

axx2 = Axis(fig[3, 1], title = "scale = extent / 2")
lines!(axx2, [l, r], [0, 0], color=:gray)
scatter!(axx2, xf, 0 * xf, marker=:vline, color=:gray, markersize=25)
scatter!(axx2, xc, 0 * xc)
axΔx2 = Axis(fig[4, 1]; xlabel = "x (m)", ylabel = "x-spacing (m)")
lΔx = lines!(axΔx2, xf, Δx[1] .+ (xc[1] .- xf) * (extent / scale) / N, color=(:purple, 0.3), linewidth=4)
scatter!(axΔx2, xc, Δx)


legend = Legend(fig[5, :], [lΔx], ["slope = (extent / scale) / Nz"], orientation = :horizontal)

for ax in (axx1, axx2)
    hidedecorations!(ax)
    hidespines!(ax)
end

for ax in (axΔx1, axΔx2)
    ylims!(ax, -10, 450)
    hidespines!(ax, :t, :r)
end

rowsize!(fig.layout, 1, Relative(0.1))
rowsize!(fig.layout, 3, Relative(0.1))
fig
Example block output

A downside of ExponentialCoordinate coordinate is that we don't have tight control on the minimum spacing at the biased edge. To obtain a coordinate with a certain minimum spacing we need to play around with the scale $h$ and the number of cells.

Constant-to-stretched-spacing coordinate

ConstantToStretchedCoordinate returns a coordinate with constant spacing over some extent and beyond which the spacing increases with a prescribed stretching law; this allows a tighter control on the spacing at the biased edge. That is, we can prescribe a constant spacing over the top surface_layer_height below which the grid spacing increases following a prescribed stretching law. The downside here is that neither the final coordinate extent nor the total number of cells can be prescribed. The coordinate's extent is greater or equal from what we prescribe via the keyword argument extent. Also, the total number of cells we end up with depends on the stretching law.

As an example, we build three single-column vertical grids. We use right-biased coordinate (i.e., bias = :right) since this way we can have tight control of the spacing at the ocean's surface (bias_edge = 0). The three grids below have constant 30-meter spacing for the top 180 meters. We prescribe to all three a extent = 800 meters and we apply power-law stretching for depths below 120 meters. The bigger the power-law stretching factor is, the further the last interface goes beyond the prescribed depth and/or with less total number of cells.

bias = :right
bias_edge = 0
extent = 800
constant_spacing = 25
constant_spacing_extent = 160

z = ConstantToStretchedCoordinate(; extent, bias, bias_edge,
                                  constant_spacing, constant_spacing_extent,
                                  stretching = PowerLawStretching(1.06))
grid = RectilinearGrid(; size=length(z), z, topology=(Flat, Flat, Bounded))
zf = znodes(grid, Face())
zc = znodes(grid, Center())
Δz = zspacings(grid, Center())
Δz = view(Δz, 1, 1, :)  # for plotting

fig = Figure(size=(800, 550), colgap = 5)

axΔz1 = Axis(fig[1, 1];
             xlabel = "z-spacing (m)",
             ylabel = "z (m)",
             title = "PowerLawStretching(1.06)\n $(length(zf)) cells\n bottom @ z = $(zf[1]) m\n ")

axz1 = Axis(fig[1, 2])

ldepth = hlines!(axΔz1, bias_edge - extent, color = :salmon, linestyle=:dash)
lzbottom = hlines!(axΔz1, zf[1], color = :grey)
scatter!(axΔz1, Δz, zc)
hidespines!(axΔz1, :t, :r)

lines!(axz1, [0, 0], [zf[1], 0], color=:gray)
scatter!(axz1, 0 * zf, zf, marker=:hline, color=:gray, markersize=20)
scatter!(axz1, 0 * zc, zc)
hidedecorations!(axz1)
hidespines!(axz1)


z = ConstantToStretchedCoordinate(; extent, bias, bias_edge,
                                  constant_spacing, constant_spacing_extent,
                                  stretching = PowerLawStretching(1.03))
grid = RectilinearGrid(; size=length(z), z, topology=(Flat, Flat, Bounded))
zf = znodes(grid, Face())
zc = znodes(grid, Center())
Δz = zspacings(grid, Center())
Δz = view(Δz, 1, 1, :)  # for plotting

axΔz2 = Axis(fig[1, 3];
             xlabel = "z-spacing (m)",
             ylabel = "z (m)",
             title = "PowerLawStretching(1.03)\n $(length(zf)) cells\n bottom @ z = $(zf[1]) m\n ")
axz2 = Axis(fig[1, 4])

ldepth = hlines!(axΔz2, bias_edge - extent, color = :salmon, linestyle=:dash)
lzbottom = hlines!(axΔz2, zf[1], color = :grey)
scatter!(axΔz2, Δz, zc)
hidespines!(axΔz2, :t, :r)

lines!(axz2, [0, 0], [zf[1], 0], color=:gray)
scatter!(axz2, 0 * zf, zf, marker=:hline, color=:gray, markersize=20)
scatter!(axz2, 0 * zc, zc)
hidedecorations!(axz2)
hidespines!(axz2)

z = ConstantToStretchedCoordinate(; extent, bias, bias_edge,
                                  constant_spacing, constant_spacing_extent,
                                  stretching = PowerLawStretching(1.03),
                                  maximum_stretching_extent = 500)

grid = RectilinearGrid(; size=length(z), z, topology=(Flat, Flat, Bounded))
zf = znodes(grid, Face())
zc = znodes(grid, Center())
Δz = zspacings(grid, Center())
Δz = view(Δz, 1, 1, :)  # for plotting

axΔz3 = Axis(fig[1, 5];
             xlabel = "z-spacing (m)",
             ylabel = "z (m)",
             title = "PowerLawStretching(1.03)\n $(length(zf)) cells\n bottom @ z = $(zf[1]) m\n maximum_stretching_extent = 500")
axz3 = Axis(fig[1, 6])

ldepth = hlines!(axΔz3, bias_edge - extent, color = :salmon, linestyle=:dash)
lzbottom = hlines!(axΔz3, zf[1], color = :grey)
scatter!(axΔz3, Δz, zc)

hidespines!(axΔz3, :t, :r)

lines!(axz3, [0, 0], [zf[1], 0], color=:gray)
scatter!(axz3, 0 * zf, zf, marker=:hline, color=:gray, markersize=20)
scatter!(axz3, 0 * zc, zc)
hidedecorations!(axz3)
hidespines!(axz3)


linkaxes!(axΔz1, axz1, axΔz2, axz2, axΔz3, axz3)

Legend(fig[2, :], [ldepth, lzbottom], ["prescribed extent", "bottom z interface"], orientation = :horizontal)

colsize!(fig.layout, 2, Relative(0.1))
colsize!(fig.layout, 4, Relative(0.1))
colsize!(fig.layout, 6, Relative(0.1))

fig

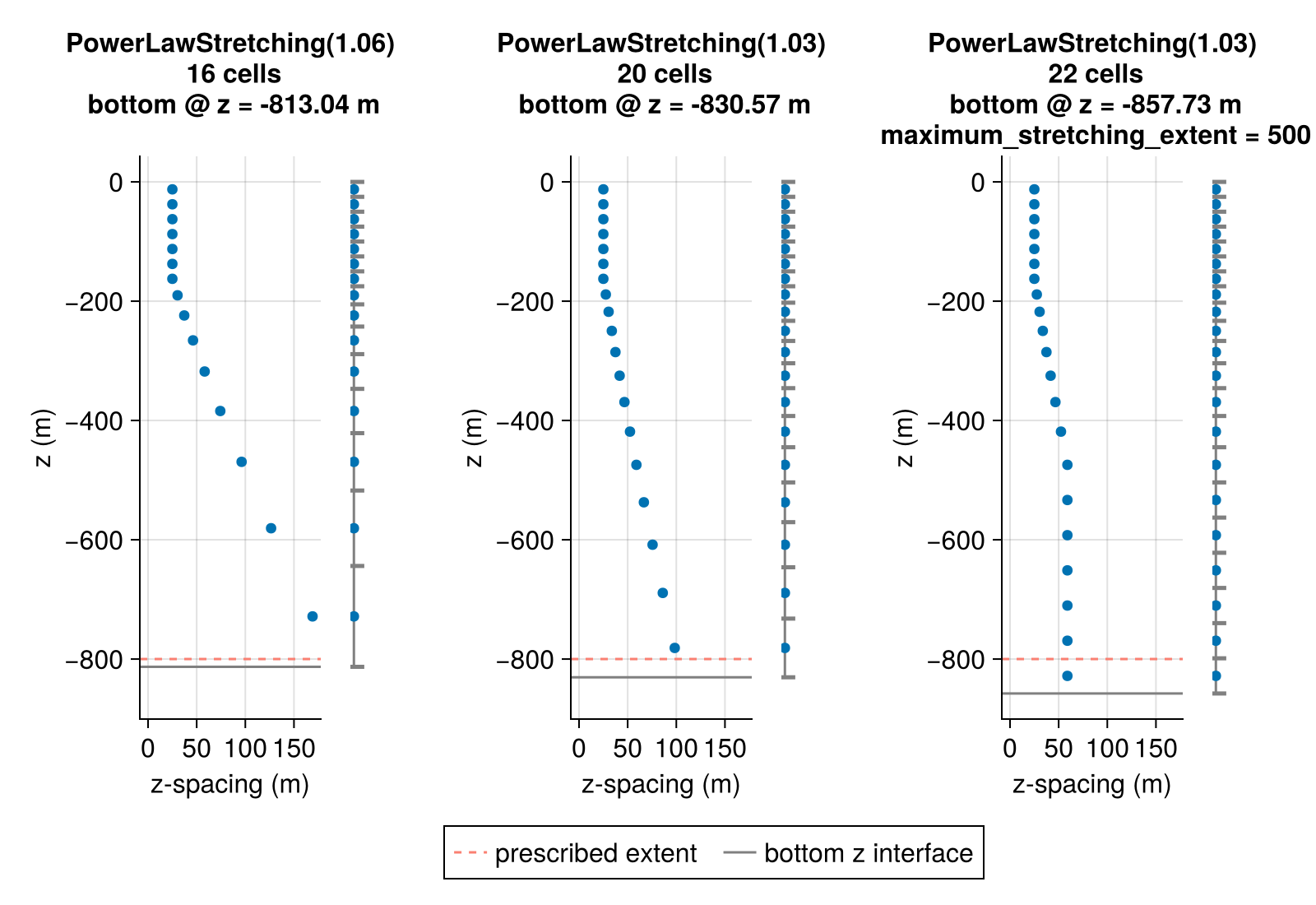

Example block output

Single-precision RectilinearGrid

To build a grid whose fields are represented with single-precision floating point values, we specify the float_type argument along with the (optional) architecture argument,

architecture = CPU()
float_type = Float32

grid = RectilinearGrid(architecture, float_type,
                       topology = (Periodic, Periodic, Bounded),
                       size = (16, 8, 4),
                       x = (0, 64),
                       y = (0, 32),
                       z = (0, 8))

# output
16×8×4 RectilinearGrid{Float32, Periodic, Periodic, Bounded} on CPU with 3×3×3 halo
├── Periodic x ∈ [0.0, 64.0) regularly spaced with Δx=4.0
├── Periodic y ∈ [0.0, 32.0) regularly spaced with Δy=4.0
└── Bounded  z ∈ [0.0, 8.0]  regularly spaced with Δz=2.0
Using single precision

Single precision should be used with care. Users interested in performing single-precision simulations should get in touch via Discussions, and should subject their work to extensive testing and validation.

For more examples see RectilinearGrid and LatitudeLongitudeGrid.

Distributed grids

Note

For the following examples, make sure to have both Oceananigans and MPI in your environment.

Next we turn to the distribution of grids across disparate nodes. This is useful for running simulations that cannot fit on one node. It can also be used to speed up a simulation – provided that the simulation is large enough such that the added cost of communicating information between nodes does not exceed the benefit of dividing up the computation among different nodes.

# Make a simple program that can be written to file
make_distributed_arch = """

using Oceananigans
using Oceananigans.DistributedComputations
using MPI; MPI.Init()
architecture = Distributed()
@onrank 0 @show architecture
@onrank 1 @show architecture
"""

write("distributed_arch_example.jl", make_distributed_arch)

# Run the program from inside julia.
# The program can also be run by exiting julia and running
#
# $ mpiexec -n 2 julia --project distributed_architecture_example.jl
#
# from the terminal.
using MPI
run(`$(mpiexec()) -n 2 julia --project distributed_arch_example.jl`)
rm("distributed_architecture_example.jl")

gives

architecture = Distributed{CPU} across 2 = 2×1×1 ranks:
├── local_rank: 0 of 0-1
├── local_index: [1, 1, 1]
└── connectivity: east=1 west=1
architecture = Distributed{CPU} across 2 = 2×1×1 ranks:
├── local_rank: 1 of 0-1
├── local_index: [2, 1, 1]
└── connectivity: east=0 west=0

That's what it looks like to build a Distributed architecture. Notice we chose to display only if we're on rank 0 – because otherwise, all the ranks print to the terminal at once, talking over each other, and things get messy. Also, we used the "default communicator" MPI.COMM_WORLD to determine whether we were on rank 0. This works because Distributed uses communicator = MPI.COMM_WORLD by default (and this should be changed only with great intention). See the Distributed docstring for more information.

Next, let's try to build a distributed grid:

make_distributed_grid = """

using Oceananigans
using Oceananigans.DistributedComputations
using MPI; MPI.Init()

child_architecture = CPU()
architecture = Distributed(child_architecture)

grid = RectilinearGrid(architecture,
                       size = (48, 48, 16),
                       x = (0, 64),
                       y = (0, 64),
                       z = (0, 16),
                       topology = (Periodic, Periodic, Bounded))

@handshake @info grid
"""

write("distributed_grid_example.jl", make_distributed_grid)

run(`$(mpiexec()) -n 2 julia --project distributed_grid_example.jl`)

gives

grid = 24×48×16 RectilinearGrid{Float64, FullyConnected, Periodic, Bounded} on Distributed{CPU} with 3×3×3 halo
├── FullyConnected x ∈ [0.0, 32.0) regularly spaced with Δx=1.33333
├── Periodic y ∈ [0.0, 64.0)       regularly spaced with Δy=1.33333
└── Bounded  z ∈ [0.0, 16.0]       regularly spaced with Δz=1.0
grid = 24×48×16 RectilinearGrid{Float64, FullyConnected, Periodic, Bounded} on Distributed{CPU} with 3×3×3 halo
├── FullyConnected x ∈ (32.0, 64.0) regularly spaced with Δx=1.33333
├── Periodic y ∈ [0.0, 64.0)       regularly spaced with Δy=1.33333
└── Bounded  z ∈ [0.0, 16.0]       regularly spaced with Δz=1.0

Now we're getting somewhere. Let's note a few things:

  • For the second example, we explicitly specified child_architecture = CPU() to distribute the grid across CPUs. Changing this to child_architecture = GPU() distributes the grid across GPUs.

  • We built the grid with size = (48, 48, 16), but ended up with a 24×48×16 grid. Why's that? Well, (48, 48, 16) is the size of the global grid, or in other words, the grid that we would get if we stitched together all the grids from each rank. Here we have two ranks. By default, the local grids are distributed equally in x, which means that each of the two local grids have half of the grids points of the global grid – yielding local sizes of (24, 48, 16).

  • The global grid has topology (Periodic, Periodic, Bounded), but the local grids have the topology (FullyConnected, Periodic, Bounded). That means that each local grid, which represents half of the global grid and is partitioned in x, is not Periodic in x. Instead, the west and east sides of each local grid (left and right in the x-direction) are "connected" to another rank.

To drive these points home, let's run the same script, but using 3 processors instead of 2:

run(`$(mpiexec()) -n 3 julia --project distributed_grid_example.jl`)

gives

grid = 16×48×16 RectilinearGrid{Float64, Oceananigans.Grids.FullyConnected, Periodic, Bounded} on Distributed{CPU} with 3×3×3 halo
├── FullyConnected x ∈ [0.0, 21.3333) regularly spaced with Δx=1.33333
├── Periodic y ∈ [0.0, 64.0)          regularly spaced with Δy=1.33333
└── Bounded  z ∈ [0.0, 16.0]          regularly spaced with Δz=1.0
grid = 16×48×16 RectilinearGrid{Float64, Oceananigans.Grids.FullyConnected, Periodic, Bounded} on Distributed{CPU} with 3×3×3 halo
├── FullyConnected x ∈ [21.3333, 42.6667) regularly spaced with Δx=1.33333
├── Periodic y ∈ [0.0, 64.0)              regularly spaced with Δy=1.33333
└── Bounded  z ∈ [0.0, 16.0]              regularly spaced with Δz=1.0
grid = 16×48×16 RectilinearGrid{Float64, Oceananigans.Grids.FullyConnected, Periodic, Bounded} on Distributed{CPU} with 3×3×3 halo
├── FullyConnected x ∈ [42.6667, 64.0) regularly spaced with Δx=1.33333
├── Periodic y ∈ [0.0, 64.0)           regularly spaced with Δy=1.33333
└── Bounded  z ∈ [0.0, 16.0]           regularly spaced with Δz=1.0

Now we have three local grids, each with size (16, 48, 16).

Custom partitions grids in both $x$ and $y$

To distribute a grid in different ways – for example, in both $x$ and $y$ – we use a custom Partition.

The default Partition is equally distributed in x. To equally distribute in y, we write

make_y_partition = """

using Oceananigans
using Oceananigans.DistributedComputations: Equal
using MPI
MPI.Init()

partition = Partition(y=Equal())

if MPI.Comm_rank(MPI.COMM_WORLD) == 0
    @show partition
end
"""

write("partition_example.jl", make_y_partition)

run(`$(mpiexec()) -n 2 julia --project partition_example.jl`)

gives

partition = Partition across 2 = 1×2×1 ranks:
└── y: 2

Manually specifying ranks in $x, y$

It's easy to manually configure Partition(x=Rx, y=Ry), where Rx * Ry is the total number of MPI ranks. For example, Partition(x=3, y=2) is compatible with a_program.jl launched via

mpiexec -n 6 julia --project a_program.jl

Programmatically specifying ranks in $x, y$

Programatic specification of ranks is often better for applications that need to scale. For this the specification Equal is useful: if the number of ranks in one dimension is specified, and the other is Equal, then the Equal dimension is allocated the remaining workers. For example,

make_xy_partition = """

using Oceananigans
using Oceananigans.DistributedComputations: Equal
using MPI
MPI.Init()

partition = Partition(x=Equal(), y=2)

if MPI.Comm_rank(MPI.COMM_WORLD) == 0
    @show partition
end
"""

write("programmatic_partition_example.jl", make_xy_partition)

run(`$(mpiexec()) -n 6 julia --project programmatic_partition_example.jl`)

gives

partition = Partition across 2 = 3×2×1 ranks:
├── x: 3
└── y: 2

Finally, we can use Equal to partition a grid evenly in $x, y$:

partitioned_grid_example = """

using Oceananigans
using Oceananigans.DistributedComputations: Equal, barrier!
using MPI
MPI.Init()

# Total number of ranks
Nr = MPI.Comm_size(MPI.COMM_WORLD)

# Allocate half the ranks to y, and the rest to x
Rx = Nr ÷ 2
partition = Partition(x=Rx, y=Equal())
arch = Distributed(CPU(); partition)

grid = RectilinearGrid(arch,
                       size = (48, 48, 16),
                       x = (0, 64),
                       y = (0, 64),
                       z = (0, 16),
                       topology = (Periodic, Periodic, Bounded))

# Let's see all the grids this time.
for r in 0:Nr-1
    if r == arch.local_rank
        msg = string("On rank ", r, ":", '\n', '\n',
                     arch, '\n',
                     grid)
        @info msg
    end

    barrier!(arch)
end
"""

write("equally_partitioned_grids.jl", partitioned_grid_example)

run(`$(mpiexec()) -n 4 julia --project equally_partitioned_grids.jl`)

gives

┌ Info: On rank 0:
│
│ Distributed{CPU} across 4 = 2×2×1 ranks:
│ ├── local_rank: 0 of 0-3
│ ├── local_index: [1, 1, 1]
│ └── connectivity: east=2 west=2 north=1 south=1 southwest=3 southeast=3 northwest=3 northeast=3
│ 24×24×16 RectilinearGrid{Float64, FullyConnected, FullyConnected, Bounded} on Distributed{CPU} with 3×3×3 halo
│ ├── FullyConnected x ∈ [0.0, 32.0) regularly spaced with Δx=1.33333
│ ├── FullyConnected y ∈ [0.0, 32.0) regularly spaced with Δy=1.33333
└ └── Bounded  z ∈ [0.0, 16.0]       regularly spaced with Δz=1.0
┌ Info: On rank 1:
│
│ Distributed{CPU} across 4 = 2×2×1 ranks:
│ ├── local_rank: 1 of 0-3
│ ├── local_index: [1, 2, 1]
│ └── connectivity: east=3 west=3 north=0 south=0 southwest=2 southeast=2 northwest=2 northeast=2
│ 24×24×16 RectilinearGrid{Float64, FullyConnected, FullyConnected, Bounded} on Distributed{CPU} with 3×3×3 halo
│ ├── FullyConnected x ∈ [0.0, 32.0)  regularly spaced with Δx=1.33333
│ ├── FullyConnected y ∈ [32.0, 64.0) regularly spaced with Δy=1.33333
└ └── Bounded  z ∈ [0.0, 16.0]        regularly spaced with Δz=1.0
┌ Info: On rank 2:
│
│ Distributed{CPU} across 4 = 2×2×1 ranks:
│ ├── local_rank: 2 of 0-3
│ ├── local_index: [2, 1, 1]
│ └── connectivity: east=0 west=0 north=3 south=3 southwest=1 southeast=1 northwest=1 northeast=1
│ 24×24×16 RectilinearGrid{Float64, FullyConnected, FullyConnected, Bounded} on Distributed{CPU} with 3×3×3 halo
│ ├── FullyConnected x ∈ [32.0, 64.0) regularly spaced with Δx=1.33333
│ ├── FullyConnected y ∈ [0.0, 32.0)  regularly spaced with Δy=1.33333
└ └── Bounded  z ∈ [0.0, 16.0]        regularly spaced with Δz=1.0
┌ Info: On rank 3:
│
│ Distributed{CPU} across 4 = 2×2×1 ranks:
│ ├── local_rank: 3 of 0-3
│ ├── local_index: [2, 2, 1]
│ └── connectivity: east=1 west=1 north=2 south=2 southwest=0 southeast=0 northwest=0 northeast=0
│ 24×24×16 RectilinearGrid{Float64, FullyConnected, FullyConnected, Bounded} on Distributed{CPU} with 3×3×3 halo
│ ├── FullyConnected x ∈ [32.0, 64.0) regularly spaced with Δx=1.33333
│ ├── FullyConnected y ∈ [32.0, 64.0) regularly spaced with Δy=1.33333
└ └── Bounded  z ∈ [0.0, 16.0]        regularly spaced with Δz=1.0
