# Fields basics

`Field`

s and its relatives are core Oceananigans data structures. `Field`

s are more or less arrays of `data`

located on a `grid`

, whose entries correspond to the average value of some quantity over some finite-sized volume. `Field`

s also may contain `boundary_conditions`

, may be computed from an `operand`

or expression involving other fields, and may cover only a portion of the total `indices`

spanned by the grid.

## Staggered grids and field locations

Oceananigans ocean-flavored fluids simulations rely fundamentally on "staggered grid" numerical methods.

Recall that grids represent a physical domain divided into finite volumes. For example, let's consider a horizontally-periodic, vertically-bounded grid of cells that divide up a cube with dimensions $1 \times 1 \times 1$:

```
using Oceananigans
grid = RectilinearGrid(topology = (Periodic, Periodic, Bounded),
size = (4, 5, 4),
halo = (1, 1, 1),
x = (0, 1),
y = (0, 1),
z = [0, 0.1, 0.3, 0.6, 1])
# output
4×5×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 1×1×1 halo
├── Periodic x ∈ [0.0, 1.0) regularly spaced with Δx=0.25
├── Periodic y ∈ [0.0, 1.0) regularly spaced with Δy=0.2
└── Bounded z ∈ [0.0, 1.0] variably spaced with min(Δz)=0.1, max(Δz)=0.4
```

The cubic domain is divided into a "primary mesh" of $4 \times 5 \times 4 = 80$ cells, which are evenly spaced in $x, y$ but variably spaced in $z$. Now, in addition to the primary mesh, the grid defines also a set of "staggered" grids whose cells are shifted by half a cell width relative to the primary mesh. In other words, the staggered grid cells have a "location" in each direction – either `Center`

, and therefore co-located with the primary mesh, or `Face`

and located over the interfaces of the primary mesh. For example, the primary or `Center`

cell spacings in $z$ are

```
zspacings(grid, Center())
# output
4-element view(OffsetArray(::Vector{Float64}, 0:5), 1:4) with eltype Float64:
0.1
0.19999999999999998
0.3
0.4
```

corresponding to cell interfaces located at `z = [0, 0.1, 0.3, 0.6, 1]`

. But then for the grid which is staggered in `z`

relative to the primary mesh,

```
zspacings(grid, Face())
# output
5-element view(OffsetArray(::Vector{Float64}, -1:5), 1:5) with eltype Float64:
0.1
0.15000000000000002
0.24999999999999994
0.3500000000000001
0.3999999999999999
```

The cells for the vertically staggered grid have different spacings than the primary mesh. That's because the *edges* of the vertically-staggered mesh coincide with the *nodes* (the cell centers) of the primary mesh. The nodes of the primary mesh are

```
znodes(grid, Center(), with_halos=true)
# output
6-element OffsetArray(::Vector{Float64}, 0:5) with eltype Float64 with indices 0:5:
-0.05
0.05
0.2
0.44999999999999996
0.8
1.2
```

The center of the leftmost "halo cell" is `z = -0.05`

, while the center of the first cell from the left is `z = 0.05`

. This means that the width of the first cell on the vertically-staggered grid is `0.05 - (-0.05) = 0.1`

– and so on. Finally, note that the nodes of the staggered mesh coincide with the cell interfaces of the primary mesh, so:

```
znodes(grid, Center())
# output
4-element view(OffsetArray(::Vector{Float64}, 0:5), 1:4) with eltype Float64:
0.05
0.2
0.44999999999999996
0.8
```

In a three-dimensional domain, there are $2³ = 8$ meshes – 1 primary mesh, and 7 meshes that are staggered to varying degrees from the primary mesh. This system of staggered grids is commonly used in fluid dynamics and was invented specifically for simulations of the atmosphere and ocean.

### Constructing Fields at specified locations

Every `Field`

is associated with either the primary mesh or one of the staggered meshes by a three-dimensional "location" associated with each field. To build a fully-centered `Field`

, for example, we write

```
c = Field{Center, Center, Center}(grid)
# output
4×5×4 Field{Center, Center, Center} on RectilinearGrid on CPU
├── grid: 4×5×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 1×1×1 halo
├── boundary conditions: FieldBoundaryConditions
│ └── west: Periodic, east: Periodic, south: Periodic, north: Periodic, bottom: ZeroFlux, top: ZeroFlux, immersed: ZeroFlux
└── data: 6×7×6 OffsetArray(::Array{Float64, 3}, 0:5, 0:6, 0:5) with eltype Float64 with indices 0:5×0:6×0:5
└── max=0.0, min=0.0, mean=0.0
```

Fully-centered fields also go by the alias `CenterField`

,

```
c == CenterField(grid)
# output
true
```

Many fluid dynamical variables are located at cell centers – for example, tracers like temperature and salinity. Another common type of `Field`

we encounter have cells located over the `x`

-interfaces of the primary grid,

```
u = Field{Face, Center, Center}(grid)
# output
4×5×4 Field{Face, Center, Center} on RectilinearGrid on CPU
├── grid: 4×5×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 1×1×1 halo
├── boundary conditions: FieldBoundaryConditions
│ └── west: Periodic, east: Periodic, south: Periodic, north: Periodic, bottom: ZeroFlux, top: ZeroFlux, immersed: ZeroFlux
└── data: 6×7×6 OffsetArray(::Array{Float64, 3}, 0:5, 0:6, 0:5) with eltype Float64 with indices 0:5×0:6×0:5
└── max=0.0, min=0.0, mean=0.0
```

which also goes by the alias `u = XFaceField(grid)`

. The name `u`

is suggestive: in the Arakawa type-C grid ('C-grid' for short) used by Oceananigans, the `x`

-component of the velocity field is stored at `Face, Center, Center`

location.

The centers of the `u`

cells are shifted to the left relative to the `c`

cells:

```
@show xnodes(c)
@show xnodes(u)
nothing
# output
xnodes(c) = [0.125, 0.375, 0.625, 0.875]
xnodes(u) = [0.0, 0.25, 0.5, 0.75]
```

Notice that the first `u`

-node is at `x=0`

, the left end of the grid, but the last `u`

-node is at `x=0.75`

. Because the `x`

-direction is `Periodic`

, the `XFaceField`

`u`

has 4 cells in `x`

– the cell just right of `x=0.75`

is the same as the cell at `x=0`

.

Because the vertical direction is `Bounded`

, however, vertically-staggered fields have more vertical cells than `CenterField`

s:

```
w = Field{Center, Center, Face}(grid)
@show znodes(c)
@show znodes(w)
nothing
# output
znodes(c) = [0.05, 0.2, 0.44999999999999996, 0.8]
znodes(w) = [0.0, 0.1, 0.3, 0.6, 1.0]
```

`Field`

s at `Center, Center, Face`

are also called `ZFaceField`

, and the vertical velocity is a `ZFaceField`

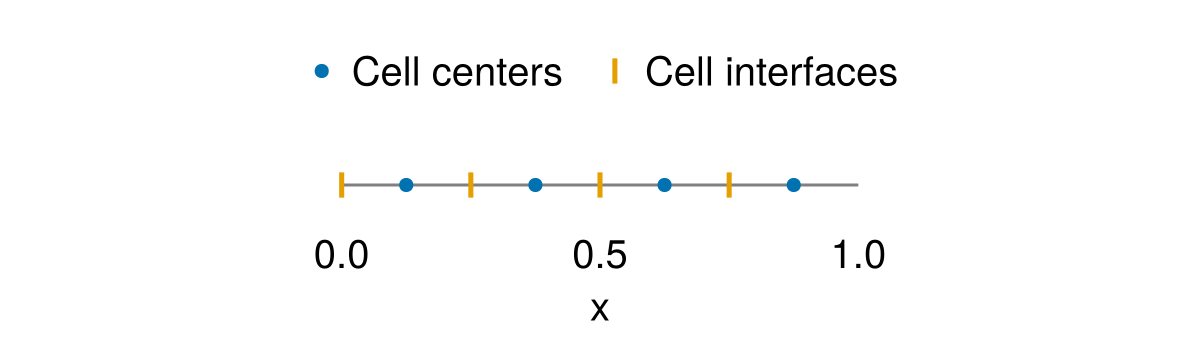

on the C-grid. Let's visualize the situation:

```
using CairoMakie
fig = Figure(size=(600, 180))
ax = Axis(fig[1, 1], xlabel="x")
# Visualize the domain
lines!(ax, [0, 1], [0, 0], color=:gray)
xc = xnodes(c)
xu = xnodes(u)
scatter!(ax, xc, 0 * xc, marker=:circle, markersize=10, label="Cell centers")
scatter!(ax, xu, 0 * xu, marker=:vline, markersize=20, label="Cell interfaces")
ylims!(ax, -1, 1)
xlims!(ax, -0.1, 1.1)
hideydecorations!(ax)
hidexdecorations!(ax, ticklabels=false, label=false)
hidespines!(ax)
Legend(fig[0, 1], ax, nbanks=2, framevisible=false)
current_figure()
```

## Setting `Field`

s

`Field`

s are full of 0's when they are created, which is not very exciting. The situation can be improved using `set!`

to change the values of a field. For example,

```
set!(c, 42)
# output
4×5×4 Field{Center, Center, Center} on RectilinearGrid on CPU
├── grid: 4×5×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 1×1×1 halo
├── boundary conditions: FieldBoundaryConditions
│ └── west: Periodic, east: Periodic, south: Periodic, north: Periodic, bottom: ZeroFlux, top: ZeroFlux, immersed: ZeroFlux
└── data: 6×7×6 OffsetArray(::Array{Float64, 3}, 0:5, 0:6, 0:5) with eltype Float64 with indices 0:5×0:6×0:5
└── max=42.0, min=42.0, mean=42.0
```

Now `c`

is filled with `42`

s (for this simple case, we could also have used `c .= 42`

). Let's confirm that:

```
c[1, 1, 1]
# output
42.0
```

Looks good. And

```
c[1:4, 1:5, 1]
# output
4×5 Matrix{Float64}:
42.0 42.0 42.0 42.0 42.0
42.0 42.0 42.0 42.0 42.0
42.0 42.0 42.0 42.0 42.0
42.0 42.0 42.0 42.0 42.0
```

Note that indexing into `c`

is the same as indexing into `c.data`

.

```
c[:, :, :] == c.data
# output
true
```

We can also `set!`

with arrays,

```
random_stuff = rand(size(c)...)
set!(c, random_stuff)

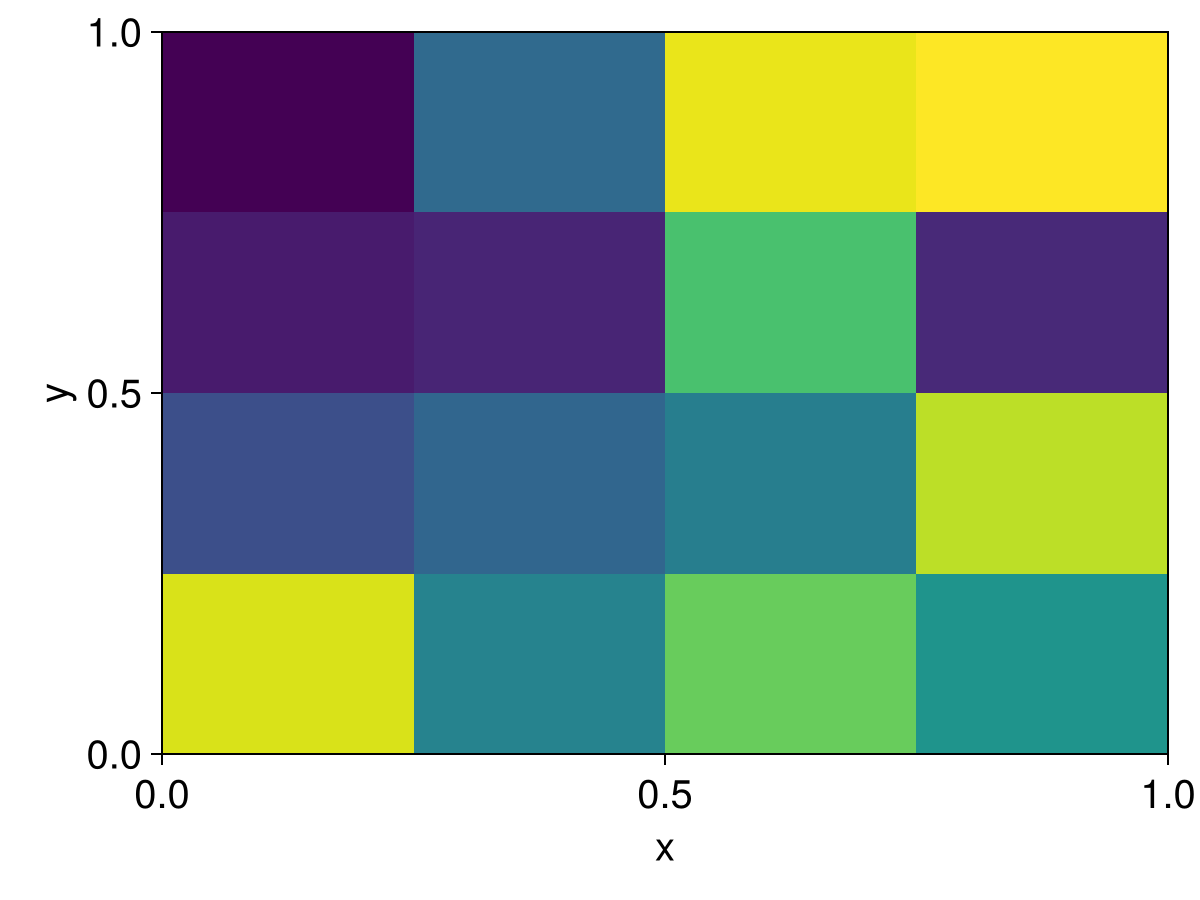

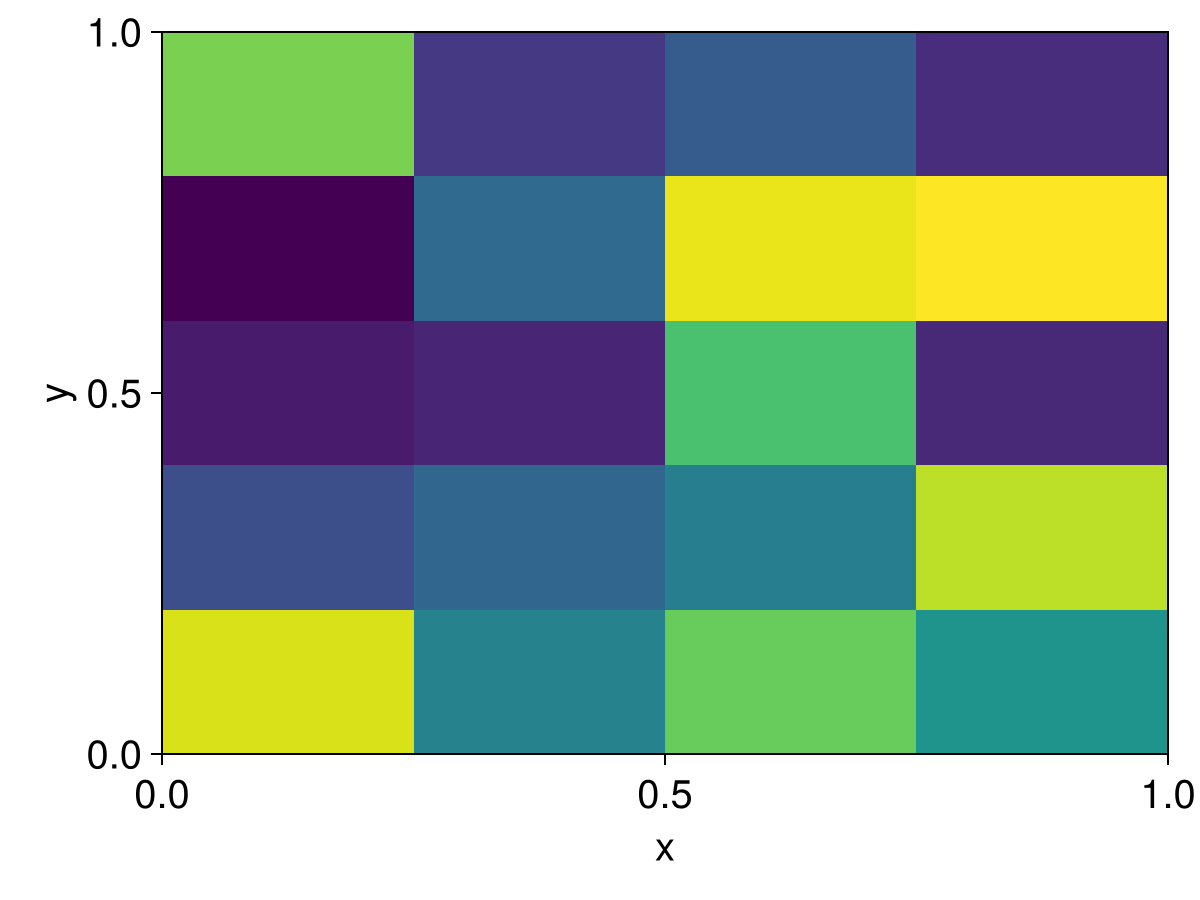

heatmap(view(c, :, :, 1))
```

or even use functions to set,

```
fun_stuff(x, y, z) = 2x
set!(c, fun_stuff)
# output
4×5×4 Field{Center, Center, Center} on RectilinearGrid on CPU
├── grid: 4×5×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 1×1×1 halo
├── boundary conditions: FieldBoundaryConditions
│ └── west: Periodic, east: Periodic, south: Periodic, north: Periodic, bottom: ZeroFlux, top: ZeroFlux, immersed: ZeroFlux
└── data: 6×7×6 OffsetArray(::Array{Float64, 3}, 0:5, 0:6, 0:5) with eltype Float64 with indices 0:5×0:6×0:5
└── max=1.75, min=0.25, mean=1.0
```

and plot it

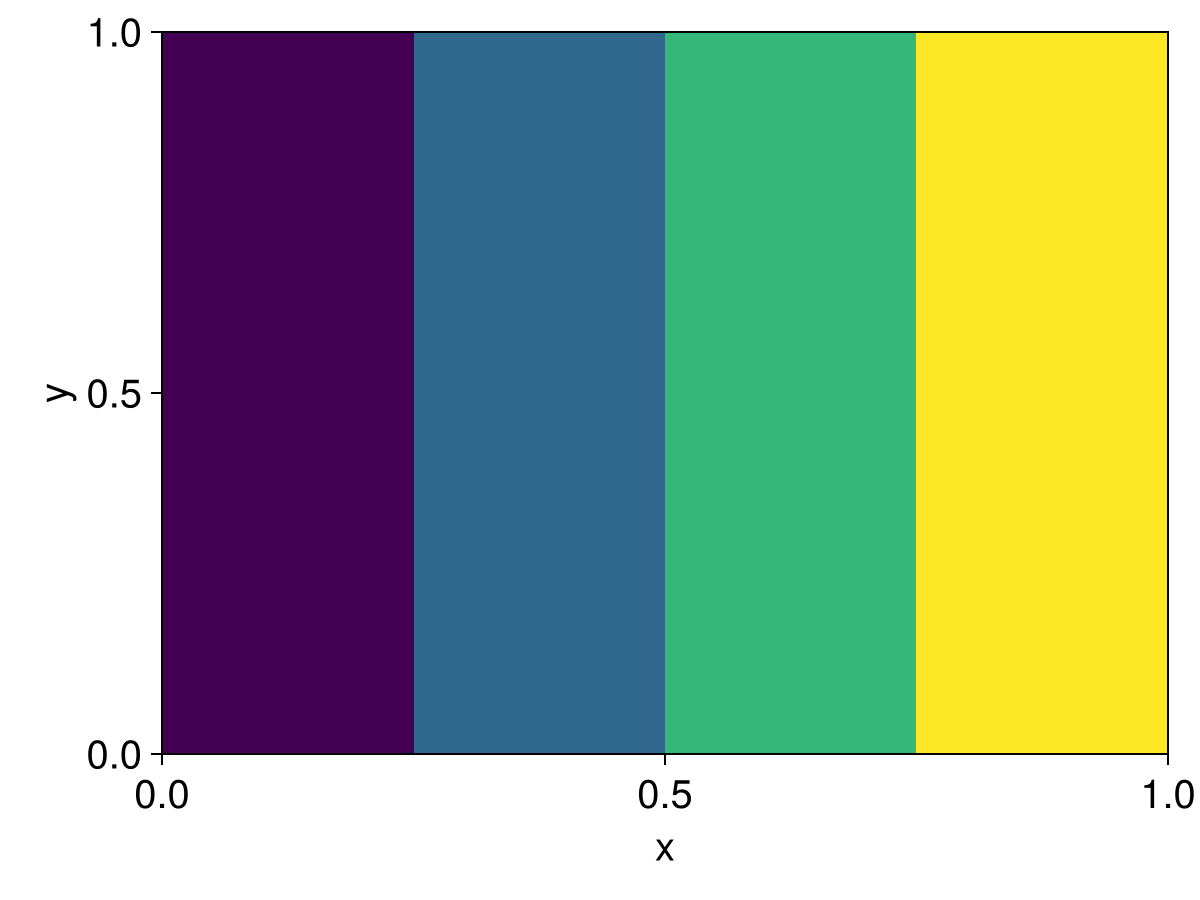

`heatmap(view(c, :, :, 1))`

For `Field`

s on three-dimensional grids, `set!`

functions must have arguments `x, y, z`

for `RectilinearGrid`

, or `λ, φ, z`

for `LatitudeLongitudeGrid`

and `OrthogonalSphericalShellGrid`

. But for `Field`

s on one- and two-dimensional grids, only the arguments that correspond to the non-`Flat`

directions must be included. For example, to `set!`

on a one-dimensional grid we write

```
# Make a field on a one-dimensional grid
one_d_grid = RectilinearGrid(size=7, x=(0, 7), topology=(Periodic, Flat, Flat))
one_d_c = CenterField(one_d_grid)
# The one-dimensional grid varies only in `x`
still_pretty_fun(x) = 3x
set!(one_d_c, still_pretty_fun)
# output
7×1×1 Field{Center, Center, Center} on RectilinearGrid on CPU
├── grid: 7×1×1 RectilinearGrid{Float64, Periodic, Flat, Flat} on CPU with 3×0×0 halo
├── boundary conditions: FieldBoundaryConditions
│ └── west: Periodic, east: Periodic, south: Nothing, north: Nothing, bottom: Nothing, top: Nothing, immersed: ZeroFlux
└── data: 13×1×1 OffsetArray(::Array{Float64, 3}, -2:10, 1:1, 1:1) with eltype Float64 with indices -2:10×1:1×1:1
└── max=19.5, min=1.5, mean=10.5
```

### A bit more about setting with functions

Let's return to the three-dimensional `fun_stuff`

case to investigate in more detail how `set!`

works with functions. The `xnodes`

of `c`

– the coordinates of the center of `c`

's finite volumes – are:

```
xc = xnodes(c)
@show xc
nothing # hide
# output
xc = [0.125, 0.375, 0.625, 0.875]
```

To `set!`

the values of `c`

we evaluate `fun_stuff`

at `c`

's nodes, producing

```
c[1:4, 1, 1]
# output
4-element Vector{Float64}:
0.25
0.75
1.25
1.75
```

This function-setting method is a first-order method for computing the finite volume of `c`

to `fun_stuff`

. Higher-order algorithms could be implemented – have a crack if you're keen.

As a result `set!`

can evaluate differently on `Field`

s at different locations:

```
u = XFaceField(grid)
set!(u, fun_stuff)
u[1:4, 1, 1]
# output
4-element Vector{Float64}:
0.0
0.5
1.0
1.5
```

## Halo regions and boundary conditions

We built `grid`

with `halo = (1, 1, 1)`

, which means that the "interior" cells of the grid are surrounded by a "halo region" of cells that's one cell thick. The number of halo cells in each direction are stored in the properties `Hx, Hy, Hz`

, so,

```
(grid.Hx, grid.Hy, grid.Hz)
# output
(1, 1, 1)
```

`set!`

doesn't touch halo cells. Check out one of the two-dimensional slices of `c`

showing both the interior and the halo regions:

```
c[:, :, 1]
# output
6×7 OffsetArray(::Matrix{Float64}, 0:5, 0:6) with eltype Float64 with indices 0:5×0:6:
0.0 0.0 0.0 0.0 0.0 0.0 0.0
0.0 0.25 0.25 0.25 0.25 0.25 0.0
0.0 0.75 0.75 0.75 0.75 0.75 0.0
0.0 1.25 1.25 1.25 1.25 1.25 0.0
0.0 1.75 1.75 1.75 1.75 1.75 0.0
0.0 0.0 0.0 0.0 0.0 0.0 0.0
```

The interior region is populated, but the surrounding halo regions are all 0. To remedy this situation we need to `fill_halo_regions!`

:

```
using Oceananigans.BoundaryConditions: fill_halo_regions!
fill_halo_regions!(c)
c[:, :, 1]
# output
6×7 OffsetArray(::Matrix{Float64}, 0:5, 0:6) with eltype Float64 with indices 0:5×0:6:
1.75 1.75 1.75 1.75 1.75 1.75 1.75
0.25 0.25 0.25 0.25 0.25 0.25 0.25
0.75 0.75 0.75 0.75 0.75 0.75 0.75
1.25 1.25 1.25 1.25 1.25 1.25 1.25
1.75 1.75 1.75 1.75 1.75 1.75 1.75
0.25 0.25 0.25 0.25 0.25 0.25 0.25
```

The way the halo regions are filled depends on `c.boundary_conditions`

:

```
c.boundary_conditions
# output
Oceananigans.FieldBoundaryConditions, with boundary conditions
├── west: PeriodicBoundaryCondition
├── east: PeriodicBoundaryCondition
├── south: PeriodicBoundaryCondition
├── north: PeriodicBoundaryCondition
├── bottom: FluxBoundaryCondition: Nothing
├── top: FluxBoundaryCondition: Nothing
└── immersed: FluxBoundaryCondition: Nothing
```

Specifically for `c`

above, `x`

and `y`

are `Periodic`

while `z`

has been assigned the default "no-flux" boundary conditions for a `Field`

with `Center`

location in a `Bounded`

direction. For no-flux boundary conditions, the halo regions of `c`

are filled so that derivatives evaluated on the boundary return 0. To view only the interior cells of `c`

we use the function `interior`

,

```
interior(c, :, :, 1)
# output
4×5 view(::Array{Float64, 3}, 2:5, 2:6, 2) with eltype Float64:
0.25 0.25 0.25 0.25 0.25
0.75 0.75 0.75 0.75 0.75
1.25 1.25 1.25 1.25 1.25
1.75 1.75 1.75 1.75 1.75
```

Note that the indices of `c`

(and the indices of `c.data`

) are "offset" so that index `1`

corresponds to the first interior cell. As a result,

```
c[1:4, 1:5, 1] == interior(c, :, :, 1)
# output
true
```

and more generally

```
typeof(c.data)
# output
OffsetArrays.OffsetArray{Float64, 3, Array{Float64, 3}}
```

Thus, for example, the `x`

-indices of `c.data`

vary from `1 - Hx`

to `Nx + Hx`

– in this case, from `0`

to `5`

. The underlying array can be accessed with `parent(c)`

. But note that the "parent" array does not have offset indices, so

```
@show parent(c)[1:2, 2, 2]
@show c.data[1:2, 1, 1]
nothing
# output
(parent(c))[1:2, 2, 2] = [1.75, 0.25]
c.data[1:2, 1, 1] = [0.25, 0.75]
```
