Quick start
This code:
using Oceananigans
grid = RectilinearGrid(size=(128, 128), x=(0, 2π), y=(0, 2π), topology=(Periodic, Periodic, Flat))
model = NonhydrostaticModel(; grid, advection=WENO())
ϵ(x, y) = 2rand() - 1
set!(model, u=ϵ, v=ϵ)
simulation = Simulation(model; Δt=0.01, stop_iteration=100)
run!(simulation)
[ Info: Initializing simulation...
[ Info: ... simulation initialization complete (174.263 ms)
[ Info: Executing initial time step...
[ Info: ... initial time step complete (3.821 seconds).
[ Info: Simulation is stopping after running for 6.033 seconds.
[ Info: Model iteration 100 equals or exceeds stop iteration 100.
runs 100 time steps of a two-dimensional turbulence simulation with 128²
finite volume cells and a fifth-order upwinded WENO advection scheme. It's quite similar to the two-dimensional turbulence example.
Visualization

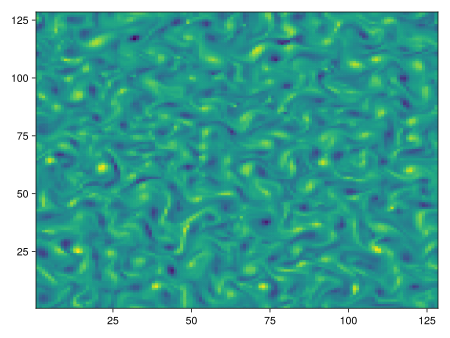

They say that a Makie visualization is worth a thousand Unicode characters, so let's plot vorticity,
using CairoMakie
u, v, w = model.velocities
ζ = Field(∂x(v) - ∂y(u))
compute!(ζ)
heatmap(interior(ζ, :, :, 1))

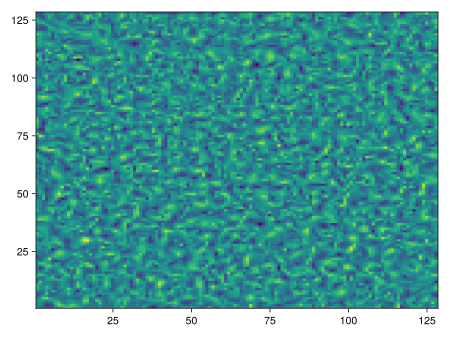

A few more time-steps, and it's starting to get a little diffuse!
simulation.stop_iteration += 400
run!(simulation)
compute!(ζ)
heatmap(interior(ζ, :, :, 1))
They always cheat with too-simple "quick" starts
Fine, we'll re-run this code on the GPU then:
using Oceananigans
grid = RectilinearGrid(GPU(), size=(128, 128), x=(0, 2π), y=(0, 2π), topology=(Periodic, Periodic, Flat))
model = NonhydrostaticModel(; grid, advection=WENO())
ϵ(x, y) = 2rand() - 1
set!(model, u=ϵ, v=ϵ)
simulation = Simulation(model; Δt=0.01, stop_iteration=100)
run!(simulation)
Notice the difference? We passed the positional argument GPU()
to RectilinearGrid
.
Well, that was tantalizing
But you'll need to know a lot more to become a productive, Oceananigans-wielding computational scientist (spherical grids, forcing, boundary conditions, turbulence closures, output writing, actually labeling your axes... 🤯). It'd be best to move on to the one-dimensional diffusion example.
