Model interface

Oceananigans models are concrete subtypes of AbstractModel that can be advanced by Simulation. This page documents the model interface: the handful of functions and data that a model must provide so that Simulation can initialize it, march it forward, and coordinate callbacks, diagnostics, and output writers.

The interface lives primarily inside src/Simulations/ and is intentionally minimal so that new models (or pedagogical toy models) can be written without depending on the full ocean model infrastructure.

The AbstractModel type

AbstractModel{TS, A} is parameterized by two type parameters:

  • TS: The time-stepper type. This enables dispatch on models with specific time-stepping schemes. For example, AbstractModel{<:QuasiAdamsBashforth2TimeStepper} matches any model using the quasi-Adams-Bashforth second-order scheme. Models without a conventional time-stepper (e.g., the LorenzModel example below) can use Nothing for this parameter.

  • A: The architecture type (e.g., CPU, GPU). This allows dispatch based on the computational backend.

Models that don't fit the conventional time-stepper pattern can use AbstractModel{Nothing, Nothing} as their supertype.

Lifecycle overview

When run!(sim::Simulation) is called the following high-level sequence occurs:

  1. initialize!(sim.model) prepares the model state, etc.) and update_state!(sim.model) computes any auxiliary tendencies.

  2. Time-stepping begins. For every time step, Simulation computes an aligned Δt, gathers callbacks that should run inside the model (ModelCallsites), and calls time_step!(sim.model, Δt; callbacks=model_callbacks). Most models will also call update_state! at the end of time_step!. This ensures that the auxiliary state (including halo regions, closure auxiliary fields, etc) is current with the prognostic state so that output and callbacks can execute correctly on a fully consistent model state.

  3. After time_step!(model, Δt), Simulation executes its diagnostics, output writers, and callbacks scheduled on the TimeStepCallsite.

Because Simulation assumes this protocol, any custom AbstractModel should implement (or inherit sane fallbacks for) the items listed below.

Structure and extensions of an AbstractModel

Required properties

  • model.clock :: Clock: the source of truth for time(model) and iteration(model). Simulation uses it for stop criteria and logging, and resets it via reset_clock!(model) when reset!(sim) is called.

Required methods

  • eltype(model): return the floating-point type used by the model. Simulation uses this for time step conversion. The default fallback returns Float64. Models with a grid property typically override this as eltype(model::MyModel) = eltype(model.grid).

Lifecycle hooks

  • update_state!(model, callbacks=[]; compute_tendencies=true): invoked by Simulation right after initialize! and inside most time steppers. This is where models fill halos, update boundary conditions, recompute auxiliary fields, and run Callbacks with an UpdateStateCallsite. PDE-based models typically finish by calling compute_tendencies!(model, callbacks) so that any TendencyCallsite callbacks can modify tendencies before integration. Note that compute_tendencies! is not part of the required interface—it is simply a useful pattern for models that integrate differential equations.

  • time_step!(model, Δt; callbacks=[]): advances the model clock and its prognostic variables by one step. Simulation hands in the tuple of ModelCallsite Callbacks so the model can execute TendencyCallsite (before tendencies are applied) and UpdateStateCallsite callbacks (after auxiliary updates). The method must call tick!(model.clock, Δt) (or equivalent) so that time(model) and iteration(model) remain consistent.

  • set!(model, kw...): not strictly required, but strongly recommended as an interface for users to modify the model's prognostic state.

  • initialize!(model::AbstractModel): called exactly once per run! before the first time step.

Optional integrations

While not required for Simulation itself, the following methods enable additional functionality:

  • architecture(model): return the computational architecture (e.g., CPU(), GPU(), or a Distributed architecture). Simulation uses this to ensure that the time step is identical across all processes when running with a Distributed architecture. The default fallback returns nothing, which skips distributed synchronization. Models with a grid property typically override this as architecture(model::MyModel) = model.grid.architecture.

  • timestepper(model): return the model's time-stepper object (or nothing if the model does not use a time-stepper). Simulation uses this to reset the time-stepper state when reset!(sim) is called. The default fallback returns nothing, so models without a time-stepper need not implement this method. Models with a time-stepper should implement this as timestepper(model::MyModel) = model.timestepper.

  • fields(model) and prognostic_fields(model): return NamedTuples of fields. These are not used by Simulation itself, but are conventions used elsewhere in the ecosystem. prognostic_fields(model) should return the fields that are time-stepped (used by NaN checkers and some diagnostics). fields(model) should return a NamedTuple that includes both prognostic fields and other fields that users might want to access or output, such as pressure or diagnostic fields computed during update_state!.

  • default_nan_checker(model): customize the NaNChecker that Simulation adds by default.

Models that implement this interface

Several models across the CliMA ecosystem implement this interface:

Oceananigans.jl

  • NonhydrostaticModel: solves the incompressible Navier-Stokes equations
  • HydrostaticFreeSurfaceModel: solves the hydrostatic Boussinesq equations with a free surface
  • ShallowWaterModel: solves the shallow water equations

ClimaOcean.jl

  • OceanSeaIceModel: couples ocean, sea ice, and atmosphere components for Earth system modeling. The components themselves may be Simulation that contain AbstractModel, generating a nested structure.

ClimaSeaIce.jl

  • SeaIceModel: simulates sea ice thermodynamics and dynamics

Breeze.jl

  • AtmosphereModel: simulates atmospheric dynamics

Example: a zero-dimensional LorenzModel

The example below shows a deliberately tiny model that integrates the Lorenz system. The implementation demonstrates how little is required: store a clock, provide time_step! and update_state! implementations, and rely on fallbacks for the rest. Note that this model has no grid and no fields—just simple scalar state variables x, y, and z.

Implementing the interface

using Oceananigans
using Oceananigans.Models: AbstractModel
using Oceananigans.Simulations: Simulation, run!
using Oceananigans.TimeSteppers: Clock, tick!
using Oceananigans: TendencyCallsite, UpdateStateCallsite

import Oceananigans.TimeSteppers: update_state!, time_step!
import Oceananigans.Fields: set!

mutable struct LorenzModel{FT, P, S} <: AbstractModel{Nothing, Nothing}
    clock :: Clock{FT}
    parameters :: P
    state :: S
end

function LorenzModel(FT = Float64; σ = 10, ρ = 28, β = 8/3)
    clock = Clock{FT}(time = zero(FT))
    parameters = (; σ=FT(σ), ρ=FT(ρ), β=FT(β))
    state = (; x=zero(FT), y=zero(FT), z=zero(FT))
    return LorenzModel(clock, parameters, state)
end

function set!(model::LorenzModel{FT}; kw...) where FT
    x = :x ∈ keys(kw) ? FT(kw[:x]) : model.state.x
    y = :y ∈ keys(kw) ? FT(kw[:y]) : model.state.y
    z = :z ∈ keys(kw) ? FT(kw[:z]) : model.state.z
    model.state = (; x, y, z)
    return nothing
end

Base.eltype(::LorenzModel{FT}) where FT = FT
Base.summary(::LorenzModel) = "LorenzModel"
update_state!(model::LorenzModel, cb=nothing; compute_tendencies=true) = nothing

function time_step!(model::LorenzModel, Δt; callbacks = ())
    model.clock.iteration == 0 && update_state!(model, callbacks; compute_tendencies = false)

    (; σ, ρ, β) = model.parameters
    (; x, y, z) = model.state

    dx = σ * (y - x)
    dy = x * (ρ - z) - y
    dz = x * y - β * z

    state = (x = x + Δt * dx,
             y = y + Δt * dy,
             z = z + Δt * dz)

    model.state = state
    tick!(model.clock, Δt)
    update_state!(model, callbacks)

    return nothing
end
time_step! (generic function with 7 methods)

Using the model inside Simulation

We set up a Callback to record the trajectory at each time step:

lorenz = LorenzModel()
set!(lorenz, x=1)
simulation = Simulation(lorenz; Δt=0.01, stop_time=100, verbose=false)
trajectory = NTuple{3, Float64}[]

function record_trajectory!(sim)
    push!(trajectory, values(sim.model.state))
end

add_callback!(simulation, record_trajectory!)
run!(simulation)

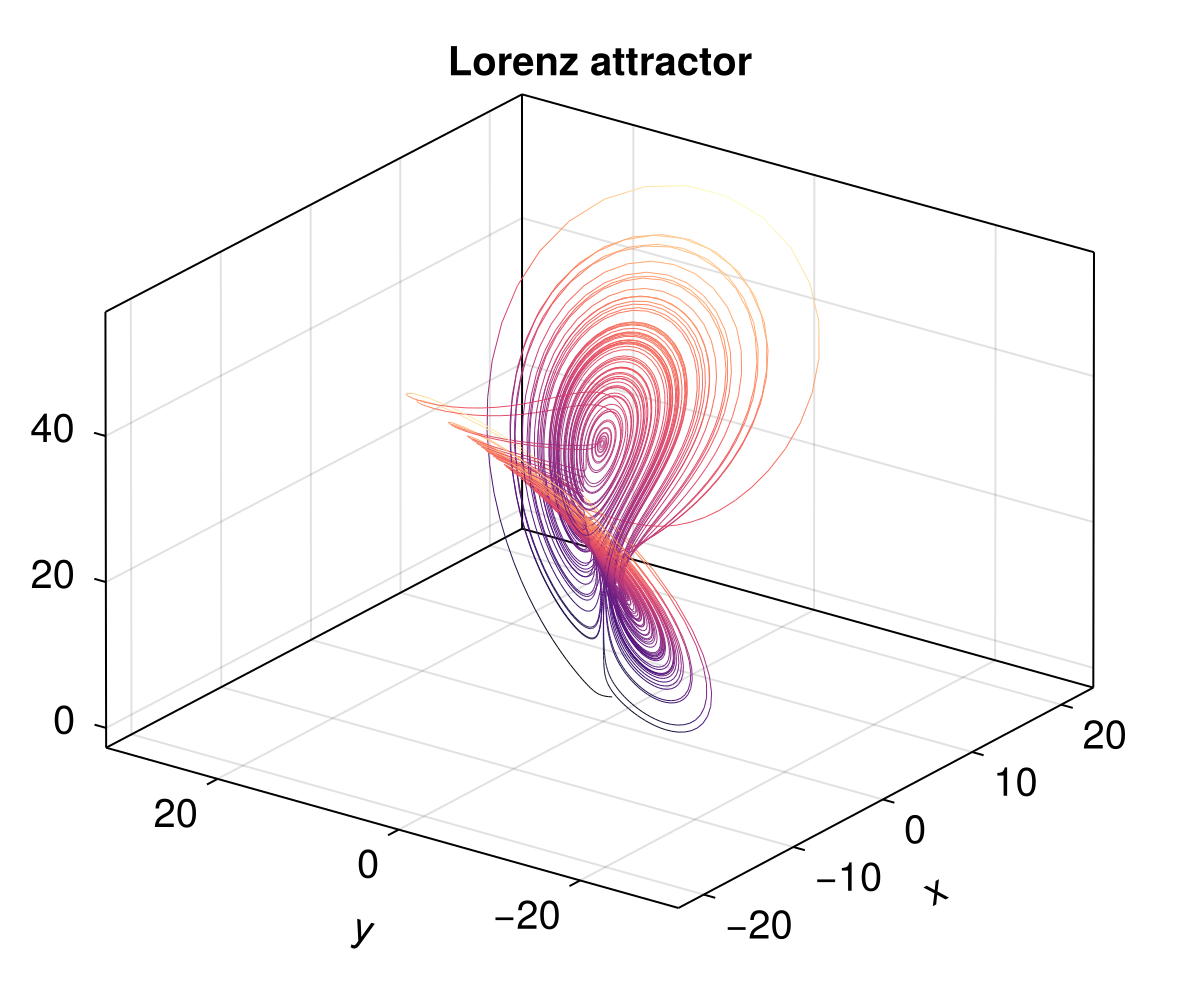

Finally, we visualize the famous Lorenz attractor with a 3D line plot:

using CairoMakie

fig = Figure(size=(600, 500))

ax = Axis3(fig[1, 1]; xlabel="x", ylabel="y", zlabel="z",
           title="Lorenz attractor", azimuth=1.2π)

xs = [p[1] for p in trajectory]
ys = [p[2] for p in trajectory]
zs = [p[3] for p in trajectory]

lines!(ax, xs, ys, zs; linewidth=0.5, color=zs, colormap=:magma)

fig
Example block output

This minimal implementation inherits all other behavior from the generic AbstractModel fallbacks: Simulation can query time(sim.model), diagnostics can read sim.model.clock, and Callbacks scheduled on ModelCallsites execute because time_step! forwards the tuple that Simulation hands to it. Note that this model has no grid, no fields, and no time-stepper object—just the essentials. Larger models can follow the same recipe while adding grids, fields, closures, and time steppers as needed.

Example: a one-dimensional KuramotoSivashinskyModel

The Kuramoto-Sivashinsky equation is a fourth-order PDE known for exhibiting chaotic behavior:

\[\partial_t u + \partial_x^2 u + \partial_x^4 u + \frac{1}{2} \partial_x (u^2) = 0\]

This example demonstrates a model that uses Oceananigans grids and fields, showing how to leverage AbstractOperations for computing spatial derivatives.

Implementing the model

using Oceananigans.BoundaryConditions: fill_halo_regions!

mutable struct KuramotoSivashinskyModel{G, C, U, T} <: AbstractModel{Nothing, Nothing}
    grid :: G
    clock :: C
    solution :: U
    tendencies :: T  # Gⁿ and G⁻ for RK3 time-stepping
end

function KuramotoSivashinskyModel(grid)
    # Validate that the grid is 1D in x
    size(grid, 2) == 1 && size(grid, 3) == 1 ||
        throw(ArgumentError("KuramotoSivashinskyModel requires a 1D grid in x"))

    clock = Clock{eltype(grid)}(time = zero(eltype(grid)))
    solution = CenterField(grid)
    tendencies = (Gⁿ = CenterField(grid), G⁻ = CenterField(grid))

    return KuramotoSivashinskyModel(grid, clock, solution, tendencies)
end

function Base.summary(model::KuramotoSivashinskyModel)
    grid_str = summary(model.grid)
    return "KuramotoSivashinskyModel on $grid_str"
  end

# Override architecture and eltype to use the grid
import Oceananigans.Architectures: architecture
architecture(model::KuramotoSivashinskyModel) = model.grid.architecture
Base.eltype(model::KuramotoSivashinskyModel) = eltype(model.grid)

"""Compute the right-hand side of the KS equation: -∂²u - ∂⁴u - ½∂ₓ(u²)"""
function compute_tendencies!(model::KuramotoSivashinskyModel)
    u = model.solution
    Gⁿ = model.tendencies.Gⁿ

    ∂²u = ∂x(∂x(u))
    ∂⁴u = ∂x(∂x(∂²u))
    ∂u² = @at (Center, Center, Center) ∂x(u^2) / 2
    Gⁿ .= -∂²u .- ∂⁴u .- ∂u²

    return nothing
end

function update_state!(model::KuramotoSivashinskyModel, callbacks = []; compute_tendencies=true)
    fill_halo_regions!(model.solution)
    [callback(model) for callback in callbacks if callback.callsite isa UpdateStateCallsite]
    compute_tendencies && compute_tendencies!(model)
    return nothing
end

function time_step!(model::KuramotoSivashinskyModel, Δt; callbacks = [])
    # First stage: initialize
    model.clock.iteration == 0 && update_state!(model, callbacks)
    [callback(model) for callback in callbacks if callback.callsite isa TendencyCallsite]

    # RK3 coefficients (Williamson's low-storage scheme)
    FT = eltype(model)
    γ¹, γ², γ³ = FT(8/15), FT(5/12), FT(3/4)
    ζ², ζ³ = -FT(17/60), -FT(5/12)

    u = parent(model.solution)
    Gⁿ = parent(model.tendencies.Gⁿ)
    G⁻ = parent(model.tendencies.G⁻)

    # Stage 1: u = u + Δt * γ¹ * Gⁿ
    u .+= Δt * γ¹ .* Gⁿ
    G⁻ .= Gⁿ
    tick!(model.clock, Δt * γ¹; stage=true)
    update_state!(model, callbacks)

    # Stage 2: u = u + Δt * (γ² * Gⁿ + ζ² * G⁻)
    u .+= Δt * γ² .* Gⁿ .+ Δt * ζ² .* G⁻
    G⁻ .= Gⁿ
    tick!(model.clock, Δt * (γ² + ζ²); stage=true)
    update_state!(model, callbacks)

    # Stage 3: u = u + Δt * (γ³ * Gⁿ + ζ³ * G⁻)
    u .+= Δt * γ³ .* Gⁿ .+ Δt * ζ³ .* G⁻
    tick!(model.clock, Δt * (γ³ + ζ³))  # final tick increments iteration, resets stage
    update_state!(model, callbacks)

    return nothing
end
time_step! (generic function with 8 methods)

Running a simulation with output

We initialize the model with a perturbed state and use a JLD2Writer to save the solution at regular intervals:

grid = RectilinearGrid(size=256, x=(0, 32π), topology=(Periodic, Flat, Flat), halo=4)
ks_model = KuramotoSivashinskyModel(grid)

# Initialize with a combination of sinusoidal modes
set!(ks_model.solution, x -> cos(x/16) * (1 + sin(x/16)))
simulation = Simulation(ks_model; Δt=0.002, stop_time=60)

simulation.output_writers[:solution] = JLD2Writer(ks_model, (; u=ks_model.solution),
                                                  filename = "ks_solution.jld2",
                                                  schedule = TimeInterval(1),
                                                  overwrite_existing = true,
                                                  including = [:grid])

run!(simulation)
[ Info: Initializing simulation...
[ Info:     ... simulation initialization complete (4.649 seconds)
[ Info: Executing initial time step...
[ Info:     ... initial time step complete (5.328 seconds).
[ Info: Simulation is stopping after running for 16.310 seconds.
[ Info: Simulation time 1 minute equals or exceeds stop time 1 minute.

Animating the chaotic dynamics

The Kuramoto-Sivashinsky equation produces complex spatiotemporal patterns. We use Observable to efficiently update the plot data during animation:

u_ts = FieldTimeSeries("ks_solution.jld2", "u")
times = u_ts.times

fig = Figure(size=(800, 400))

# Create Observables for reactive updates
n = Observable(1)
u_n = @lift u_ts[$n]
title = @lift "Kuramoto-Sivashinsky equation, t = $(round(times[$n], digits=1))"

ax = Axis(fig[1, 1]; xlabel="x", ylabel="u", title=title)
ylims!(ax, -4, 4)

# lines! works directly with Field
lines!(ax, u_n; linewidth=2, color=:royalblue)

record(fig, "ks_animation.mp4", eachindex(times); framerate=12) do nn
    n[] = nn
end

This PDE-based model demonstrates how to use Oceananigans grids, fields, and operators within a custom AbstractModel. The key additions compared to the LorenzModel are:

  • A grid property with overridden architecture and eltype methods
  • A tendencies property containing Gⁿ and G⁻ fields for multi-stage time-stepping
  • A separate compute_tendencies! function called from update_state!
  • Third-order Runge-Kutta (RK3) time-stepping using Williamson's low-storage scheme
  • Using fill_halo_regions! in update_state! to maintain periodic boundary conditions
  • Leveraging AbstractOperations (∂x) for computing spatial derivatives via broadcasting
