Baroclinic instability on the sphere

This example illustrates how to set up and run simulations of baroclinic instability on a spherical domain using three different spherical grid configurations: a standard latitude-longitude grid, a tripolar grid, and a rotated latitude-longitude grid.

Baroclinic instability is a fundamental mechanism for generating mesoscale eddies in the ocean and synoptic-scale weather systems in the atmosphere. The instability arises when horizontal density gradients (fronts) are tilted by the combined effects of Earth's rotation and stratification, converting available potential energy into kinetic energy.

In this example, we initialize a meridional temperature front that is baroclinically unstable, and watch eddies grow and equilibrate the front. We demonstrate this phenomenon on three different spherical grid types to illustrate the flexibility of Oceananigans for global ocean modeling.

This example also demonstrates:

• Using BulkDrag for quadratic bottom drag boundary conditions
• Applying drag only to the bottom facet of immersed boundaries

Install dependencies

First let's make sure we have all required packages installed.

using Pkg
pkg"add Oceananigans, CairoMakie, SeawaterPolynomials"

Grid configurations

We set up three different spherical grids at 1.5-degree resolution. Each grid type has different advantages:

• LatitudeLongitudeGrid: Straightforward, but suffers from converging meridians at the poles, and thus cannot cover a sphere without filtering.

• TripolarGrid: Avoids the North Pole singularity by introducing two computational poles over land (typically over North America and Eurasia). This grid was first introduced by Murray (1996) and is widely used in global ocean models.

• RotatedLatitudeLongitudeGrid: Rotates the grid's north pole to an arbitrary location, allowing finer resolution in a region of interest while avoiding the geographic poles.

using Oceananigans
using Oceananigans.Units
using SeawaterPolynomials.TEOS10: TEOS10EquationOfState
using CUDA
using Printf
using CairoMakie

We start by setting up grid parameters. We use 1.5-degree resolution to produce reasonable runtimes while still resolving the instability.

arch = GPU()
resolution = 3 // 2        # degrees
Nx = 360 ÷ resolution      # number of longitude points
Ny = 170 ÷ resolution      # number of latitude points (avoiding poles)
Nz = 10                    # number of vertical levels
size = (Nx, Ny, Nz)
halo = (7, 7, 7)           # halo size for higher-order advection schemes
H = 5000                   # domain depth [m]
latitude = (-85, 85)       # latitude range (avoiding poles for lat-lon grid)
longitude = (0, 360)       # longitude range
z = (-H, 0)                # vertical extent

(-5000, 0)

Next we build the three grids.

Latitude-Longitude grid

lat_lon_grid = LatitudeLongitudeGrid(arch; size, halo, latitude, longitude, z)

240×113×10 LatitudeLongitudeGrid{Float64, Periodic, Bounded, Bounded} on CUDAGPU with 7×7×7 halo
├── longitude: Periodic λ ∈ [0.0, 360.0)   regularly spaced with Δλ=1.5
├── latitude:  Bounded  φ ∈ [-85.0, 85.0]  regularly spaced with Δφ=1.50442
└── z:         Bounded  z ∈ [-5000.0, 0.0] regularly spaced with Δz=500.0

Tripolar grid

The tripolar grid has singularities ("north poles") at 55°N latitude by default.

underlying_tripolar_grid = TripolarGrid(arch; size, halo, z)

240×113×10 OrthogonalSphericalShellGrid{Float64, Periodic, RightConnected, Bounded} on CUDAGPU with 7×7×7 halo
├── centered at (λ, φ) = (70.0, 1.8005)
├── longitude: Periodic  extent 360.157 degrees       variably spaced with min(Δλ)=0.0180714, max(Δλ)=1.58055
├── latitude:  RightConnected  extent 171.504 degrees variably spaced with min(Δφ)=0.0289882, max(Δφ)=1.51786
└── z:         Bounded  z ∈ [-5000.0, 0.0]            regularly spaced with Δz=500.0

We also use an ImmersedBoundaryGrid to place Gaussian mountains over the singularities to ensure the simulation remains stable. The tripolar grid places singularities at longitude first_pole_longitude and first_pole_longitude + 180°, both at latitude north_poles_latitude. By default, the first pole is at 70°E longitude and 55°N latitude.

σφ, σλ = 4, 8       # mountain extent in latitude and longitude (degrees)
λ₀, φ₀ = 70, 55     # first pole location
h = H + 1000        # mountain height above the bottom (m)

gaussian(λ, φ) = exp(-((λ - λ₀)^2 / 2σλ^2 + (φ - φ₀)^2 / 2σφ^2))
gaussian_mountains(λ, φ) = -H + h * (gaussian(λ, φ) + gaussian(λ - 180, φ))

tripolar_grid = ImmersedBoundaryGrid(underlying_tripolar_grid, GridFittedBottom(gaussian_mountains))

240×113×10 ImmersedBoundaryGrid{Float64, Periodic, RightConnected, Bounded} on CUDAGPU with 7×7×7 halo:
├── immersed_boundary: GridFittedBottom(mean(z)=-4790.49, min(z)=-5000.0, max(z)=0.0)
├── underlying_grid: 240×113×10 OrthogonalSphericalShellGrid{Float64, Periodic, RightConnected, Bounded} on CUDAGPU with 7×7×7 halo
├── centered at (λ, φ) = (70.0, 1.8005)
├── longitude: Periodic  extent 360.157 degrees       variably spaced with min(Δλ)=0.0180714, max(Δλ)=1.58055
├── latitude:  RightConnected  extent 171.504 degrees variably spaced with min(Δφ)=0.0289882, max(Δφ)=1.51786
└── z:         Bounded  z ∈ [-5000.0, 0.0]            regularly spaced with Δz=500.0

Rotated latitude-longitude grid

The rotated latitude-longitude grid rotates the north pole to an arbitrary location. Here we place the grid's north pole at (70°E, 55°N) to coincide with the default singularities of TripolarGrid.

rotated_lat_lon_grid = RotatedLatitudeLongitudeGrid(arch; size, halo, latitude, longitude, z,
                                                    north_pole = (70, 55))

240×113×10 OrthogonalSphericalShellGrid{Float64, Periodic, Bounded, Bounded} on CUDAGPU with 7×7×7 halo
├── centered at (λ, φ) = (-110.0, 35.0)
├── longitude: Periodic  extent 360.0 degrees variably spaced with min(Δλ)=0.130734, max(Δλ)=1.49987
├── latitude:  Bounded  extent 170.0 degrees  variably spaced with min(Δφ)=1.50442, max(Δφ)=1.50442
└── z:         Bounded  z ∈ [-5000.0, 0.0]    regularly spaced with Δz=500.0

Model setup

We create a function that builds a HydrostaticFreeSurfaceModel for any of our grids. Each model is configured with:

• WENO advection for both momentum and tracers
• Spherical Coriolis force appropriate for hydrostatic dynamics
• Realistic seawater buoyancy using the TEOS-10 equation of state
• Split-explicit free surface for fast external gravity wave dynamics
• Quadratic bottom drag using BulkDrag, which computes a stress proportional to Cᴰ |u| u where Cᴰ is the drag coefficient.
• An initial condition that involves
  • A temperature front centered around ±45° latitude
  • Vertical salinity stratification
  • Random noise in both to seed instability

function build_model(grid)
    momentum_advection = WENOVectorInvariant(order=5)
    tracer_advection = WENO(order=5)
    coriolis = HydrostaticSphericalCoriolis()
    equation_of_state = TEOS10EquationOfState()
    buoyancy = SeawaterBuoyancy(; equation_of_state)
    free_surface = SplitExplicitFreeSurface(grid; substeps=80)

    # Apply bottom drag to both domain boundaries and immersed boundaries.
    # For immersed boundaries, use ImmersedBoundaryCondition to apply drag
    # only to the bottom facet.
    drag = BulkDrag(coefficient=2e-3)
    u_bcs = FieldBoundaryConditions(bottom=drag, immersed=ImmersedBoundaryCondition(bottom=drag))
    v_bcs = FieldBoundaryConditions(bottom=drag, immersed=ImmersedBoundaryCondition(bottom=drag))
    boundary_conditions = (; u=u_bcs, v=v_bcs)

    model = HydrostaticFreeSurfaceModel(; grid, coriolis, free_surface, buoyancy,
                                        tracers = (:T, :S),
                                        momentum_advection, tracer_advection,
                                        boundary_conditions)

    # Initial conditions
    Tᵢ(λ, φ, z) = 30 * (1 - tanh((abs(φ) - 45) / 8)) / 2 + rand()
    Sᵢ(λ, φ, z) = 28 - 5e-3 * z + rand()
    set!(model, T=Tᵢ, S=Sᵢ)

    return model
end

build_model (generic function with 1 method)

Simulation runner

We define a function that sets up and runs a simulation on a given grid, along with a progress callback that prints the velocity and temperature range as the simulation runs. We run for 60 days to observe the initial development of the instability while keeping computational costs reasonable.

# Simulation runner
function run_baroclinic_instability(grid, name; stop_time=60day, save_interval=24hours)
    model = build_model(grid)
    simulation = Simulation(model; Δt=8minutes, stop_time)

    # Progress callback
    function progress(sim)
        T = sim.model.tracers.T
        u, v, w = sim.model.velocities

        msg = @sprintf("%s grid, iter % 4d: % 10s, max|u|: (%.2e, %.2e, %.2e)",
                       name, iteration(sim), prettytime(sim),
                       maximum(abs, u), maximum(abs, v), maximum(abs, w))

        msg *= @sprintf(", T ∈ (%.2f, %.2f)", minimum(T), maximum(T))

        @info msg
        return nothing
    end

    add_callback!(simulation, progress, IterationInterval(1000))

    # Set up output: save vorticity and temperature at the surface
    u, v, w = model.velocities
    T = model.tracers.T
    ζ = ∂x(v) - ∂y(u)
    fields = (; ζ, T)
    indices = (:, :, grid.Nz)
    filename = "spherical_baroclinic_instability_" * name * ".jld2"

    simulation.output_writers[:surface] = JLD2Writer(model, fields; indices, filename,
                                                     schedule = TimeInterval(save_interval),
                                                     overwrite_existing = true)
    run!(simulation)
    return filename
end

run_baroclinic_instability (generic function with 1 method)

Run the simulations

Now we run simulations on all three grids.

names = ("lat_lon", "tripolar", "rotated_lat_lon") # To fix ordering of plots

results = Dict(
    "lat_lon" => run_baroclinic_instability(lat_lon_grid, "lat_lon"),
    "tripolar" => run_baroclinic_instability(tripolar_grid, "tripolar"),
    "rotated_lat_lon" => run_baroclinic_instability(rotated_lat_lon_grid, "rotated_lat_lon")
)

Dict{String, String} with 3 entries:
  "rotated_lat_lon" => "spherical_baroclinic_instability_rotated_lat_lon.jld2"
  "tripolar" => "spherical_baroclinic_instability_tripolar.jld2"
  "lat_lon" => "spherical_baroclinic_instability_lat_lon.jld2"

Visualization

We make a three-dimensional visualization of our results on the sphere with CairoMakie. First we load the output from each simulation,

T_ts = Dict()
ζ_ts = Dict()

for (name, filename) in results
    T_ts[name] = FieldTimeSeries(filename, "T")
    ζ_ts[name] = FieldTimeSeries(filename, "ζ")
end

times = T_ts["lat_lon"].times
Nt = length(times)

61

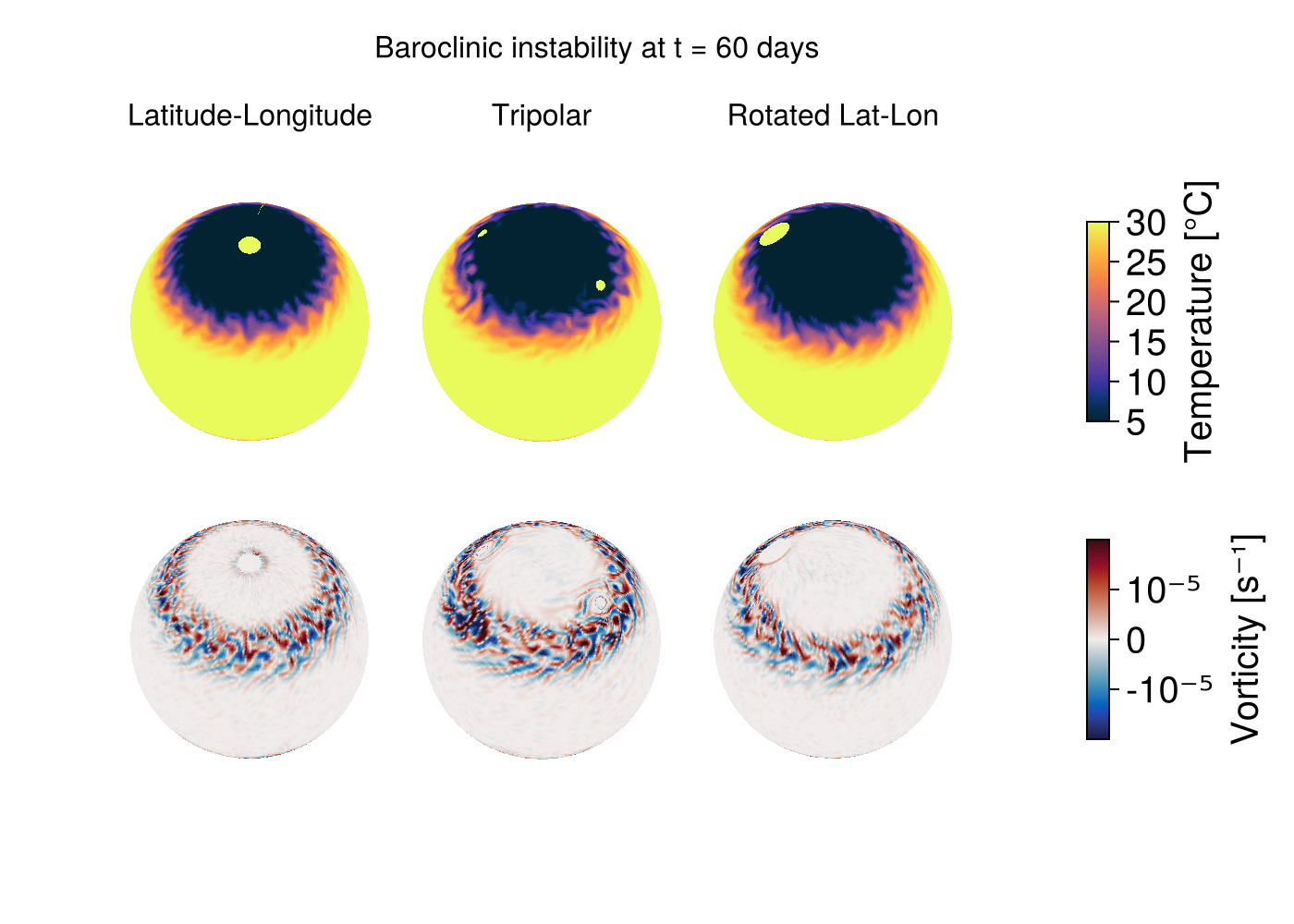

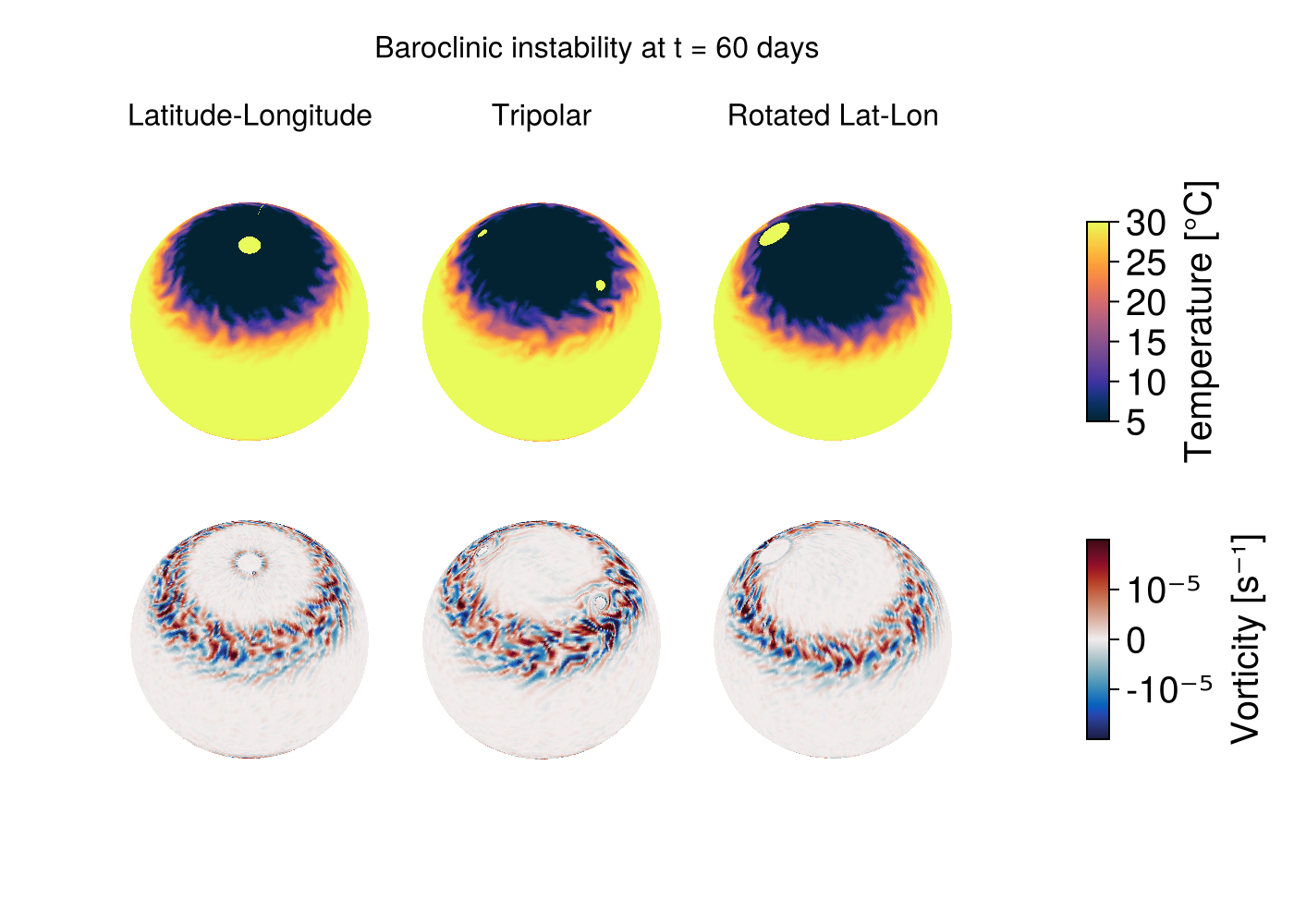

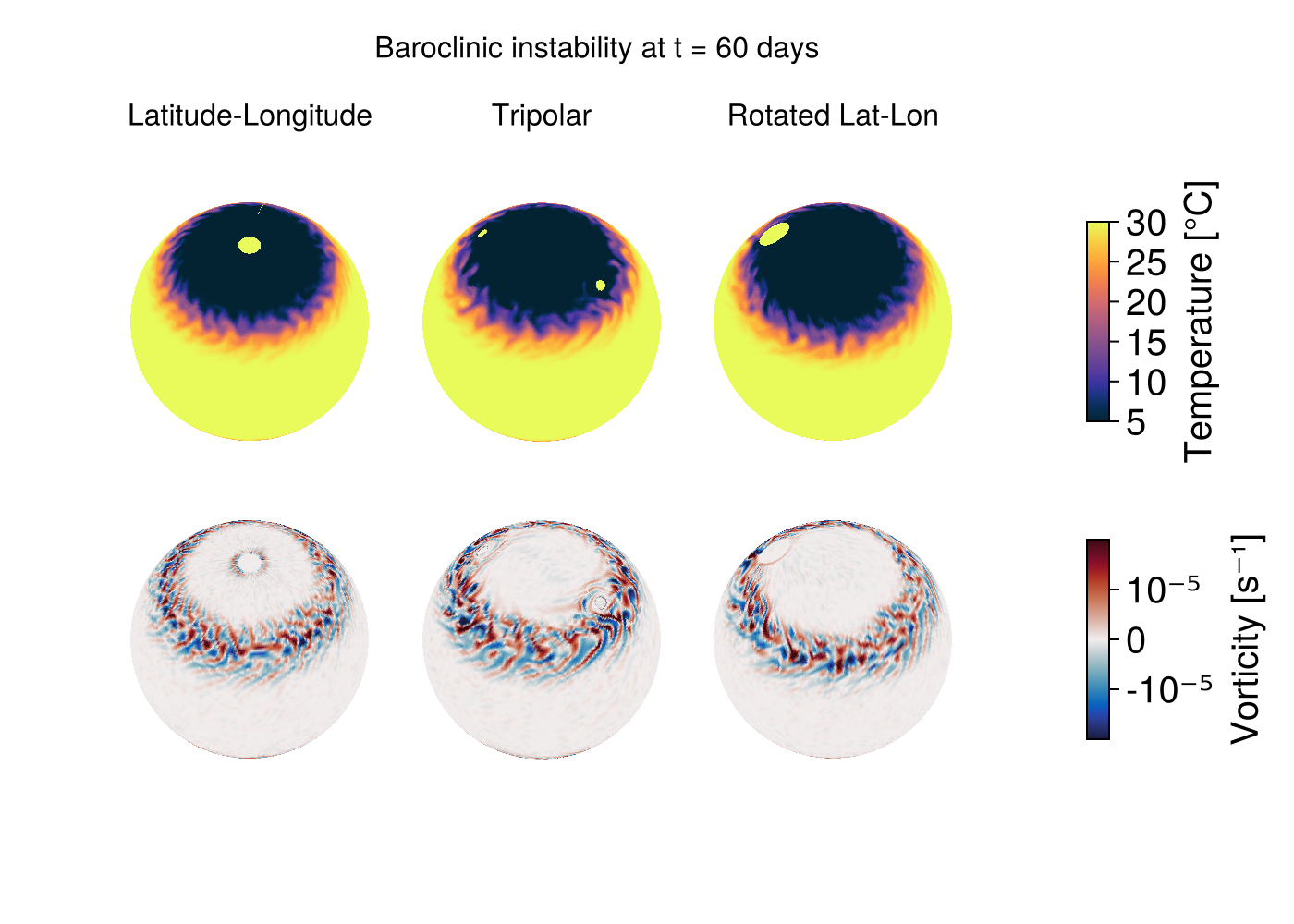

Next we make a plot showing baroclinic instability on all three grids, visualized on 3D spheres. Each column shows a different grid type, with temperature on top and vorticity on the bottom.

fig = Figure(size = (700, 500))
n = Nt
title_str = @lift "Baroclinic instability at t = " * prettytime(times[$n])
Label(fig[1, 1:4], title_str, fontsize = 16)

labels = Dict("lat_lon" => "Latitude-Longitude",
              "tripolar" => "Tripolar",
              "rotated_lat_lon" => "Rotated Lat-Lon")

axes_T = Dict()
axes_ζ = Dict()
kw = (elevation=deg2rad(50), azimuth=deg2rad(190), aspect=:equal)

for (col, name) in enumerate(names)
    Label(fig[2, col], labels[name], fontsize = 16, tellwidth=false)
    axes_T[name] = Axis3(fig[3, col]; kw...)
    axes_ζ[name] = Axis3(fig[4, col]; kw...)
end

We use surface!, which has a special extension for Oceananigans fields, to plot temperature and vorticity at the final time step on a three-dimensional representation of the sphere,

plots_T = Dict()
plots_ζ = Dict()

for name in keys(results)
    Tn = T_ts[name][n]
    ζn = ζ_ts[name][n]
    plots_T[name] = surface!(axes_T[name], Tn; colormap = :thermal, colorrange = (5, 30))
    plots_ζ[name] = surface!(axes_ζ[name], ζn; colormap = :balance, colorrange = (-2e-5, 2e-5))
    hidedecorations!(axes_T[name])
    hidedecorations!(axes_ζ[name])
    hidespines!(axes_T[name])
    hidespines!(axes_ζ[name])
end

colgap!(fig.layout, 1, Relative(-0.2))
colgap!(fig.layout, 2, Relative(-0.2))
rowgap!(fig.layout, 2, Relative(-0.1))
rowgap!(fig.layout, 3, Relative(-0.3))

Colorbar(fig[3, 4], plots_T["lat_lon"], label="Temperature [°C]", height=Relative(0.5))

ticks = ([-1e-5, 0, 1e-5], ["-10⁻⁵", "0", "10⁻⁵"])
Colorbar(fig[4, 4], plots_ζ["lat_lon"]; ticks, label="Vorticity [s⁻¹]", height=Relative(0.5))
