Grids

Oceananigans simulates the dynamics of ocean-flavored fluids by solving equations that conserve momentum, mass, and energy on a grid of finite volumes or "cells". The first decision we make when setting up a simulation is: on what grid are we going to run our simulation? The "grid" captures the

  1. The geometry of the physical domain;
  2. The way that domain is divided into a mesh of finite volumes;
  3. The machine architecture (CPU, GPU, lots of CPUs or lots of GPUs); and
  4. The precision of floating point numbers (double precision or single precision).

We start by making a simple grid that divides a three-dimensional rectangular domain – "a box" – into evenly-spaced cells,

using Oceananigans

grid = RectilinearGrid(topology = (Periodic, Periodic, Bounded),
                       size = (16, 8, 4),
                       x = (0, 64),
                       y = (0, 32),
                       z = (0, 8))

# output
16×8×4 RectilinearGrid{Float64, Periodic, Periodic, Bounded} on CPU with 3×3×3 halo
├── Periodic x ∈ [0.0, 64.0) regularly spaced with Δx=4.0
├── Periodic y ∈ [0.0, 32.0) regularly spaced with Δy=4.0
└── Bounded  z ∈ [0.0, 8.0]  regularly spaced with Δz=2.0

This simple grid

  • Has a domain that's "periodic" in $x, y$, but bounded in $z$.
  • Has 16 cells in x, 8 cells in y, and 4 cells in z. That means there are $16 \times 8 \times 4 = 512$ cells in all.
  • Has an x dimension that spans from x=0, to x=64. And y spans y=0 to y=32, and z spans z=0 to z=8.
  • Has cells that are all the same size, dividing the box in 512 that each has dimension $4 \times 4 \times 2$. Note that length units are whatever is used to construct the grid, so it's up to the user to make sure that all inputs use consistent units.

In building our first grid, we did not specify whether it should be constructed on the CPUor [GPU](@ref). As a result, the grid was constructed by default on the CPU. Next we build a grid on the _GPU_ that's two-dimensional inx, zand has variably-spaced cell interfaces in thez`-direction,

architecture = GPU()
z_faces = [0, 1, 3, 6, 10]

grid = RectilinearGrid(architecture,
                       topology = (Periodic, Flat, Bounded),
                       size = (10, 4),
                       x = (0, 20),
                       z = z_faces)

# output
10×1×4 RectilinearGrid{Float64, Periodic, Flat, Bounded} on GPU with 3×0×3 halo
├── Periodic x ∈ [0.0, 20.0) regularly spaced with Δx=2.0
├── Flat y
└── Bounded  z ∈ [0.0, 10.0] variably spaced with min(Δz)=1.0, max(Δz)=4.0
GPU architecture requires a CUDA-enabled device

To run the above example and create a grid on the GPU, an Nvidia GPU has to be available and CUDA.jl must be working). For more information see the CUDA.jl documentation.

The $y$-dimension is "missing" because it's marked Flat in topology = (Periodic, Flat, Bounded). So nothing varies in $y$: y-derivatives are 0. Also, the keyword argument (or "kwarg" for short) that specifies the $y$-domains may be omitted, and size has only two elements rather than 3 as in the first example. In the stretched cell interfaces specified by z_interfaces, the number of vertical cell interfaces is Nz + 1 = length(z_interfaces) = 5, where Nz = 4 is the number of cells in the vertical.

A bit later in this tutorial, we'll give examples that illustrate how to build a grid thats Distributed across multiple CPUs and GPUs.

Grid types: squares, shells, and mountains

The shape of the physical domain determines what grid type should be used:

  1. RectilinearGrid can be fashioned into lines, rectangles and boxes.
  2. LatitudeLongitudeGrid represents sectors of thin spherical shells, with cells bounded by lines of constant latitude and longitude.
  3. OrthogonalSphericalShellGrid represents sectors of thin spherical shells divided with mesh lines that intersect at right angles (thus, orthogonal) but are otherwise arbitrary.
OrthogonalSphericalShellGrids.jl

See the auxiliary package OrthogonalSphericalShellGrids.jl for recipes that implement some useful OrthogonalSphericalShellGrid, including the "tripolar" grid.

For example, to make a LatitudeLongitudeGrid that wraps around the sphere, extends for 60 degrees latitude on either side of the equator, and also has 5 vertical levels down to 1000 meters, we write

architecture = CPU()

grid = LatitudeLongitudeGrid(architecture,
                             size = (180, 10, 5),
                             longitude = (-180, 180),
                             latitude = (-60, 60),
                             z = (-1000, 0))

# output
180×10×5 LatitudeLongitudeGrid{Float64, Periodic, Bounded, Bounded} on CPU with 3×3×3 halo and with precomputed metrics
├── longitude: Periodic λ ∈ [-180.0, 180.0) regularly spaced with Δλ=2.0
├── latitude:  Bounded  φ ∈ [-60.0, 60.0]   regularly spaced with Δφ=12.0
└── z:         Bounded  z ∈ [-1000.0, 0.0]  regularly spaced with Δz=200.0

The main difference between the syntax for LatitudeLongitudeGrid versus that for the RectilinearGrid are the names of the horizontal coordinates: LatitudeLongitudeGrid has longitude and latitude where RectilinearGrid has x and y.

Extrinsic and intrinsic coordinate systems

Every grid is associated with an "extrinsic" coordinate system: RectilinearGrid uses a Cartesian coordinate system, while LatitudeLongitudeGrid and OrthogonalSphericalShellGrid use the geographic coordinates (λ, φ, z), where λ is longitude, φ is latitude, and z is height. Additionally, OrthogonalSphericalShellGrid has an "intrinsic" coordinate system associated with the orientation of its finite volumes (which, in general, are not aligned with geographic coordinates). To type λ or φ at the REPL, write either \lambda (for λ) or \varphi (for φ) and then press <TAB>.

If topology is not provided for LatitudeLongitudeGrid, then we try to infer it: if the longitude spans 360 degrees, the default x-topology is Periodic; if longitude spans less than 360 degrees x-topology is Bounded. For example,

grid = LatitudeLongitudeGrid(size = (60, 10, 5),
                             longitude = (0, 60),
                             latitude = (-60, 60),
                             z = (-1000, 0))

# output
60×10×5 LatitudeLongitudeGrid{Float64, Bounded, Bounded, Bounded} on CPU with 3×3×3 halo and with precomputed metrics
├── longitude: Bounded  λ ∈ [0.0, 60.0]    regularly spaced with Δλ=1.0
├── latitude:  Bounded  φ ∈ [-60.0, 60.0]  regularly spaced with Δφ=12.0
└── z:         Bounded  z ∈ [-1000.0, 0.0] regularly spaced with Δz=200.0

is Bounded by default, because longitude = (0, 60).

LatitudeLongitudeGrid topologies

It's still possible to use topology = (Periodic, Bounded, Bounded) if longitude doesn't have 360 degrees. But neither latitude nor z may be Periodic with LatitudeLongitudeGrid.

Bathymetry, topography, and other irregularities

Irregular or "complex" domains are represented with ImmersedBoundaryGrid, which combines one of the above underlying grids with a type of immersed boundary. The immersed boundaries we support currently are

  1. GridFittedBottom, which fits a one- or two-dimensional bottom height to the underlying grid, so the active part of the domain is above the bottom height.
  2. PartialCellBottom, which is similar to GridFittedBottom, except that the height of the bottommost cell is changed to conform to bottom height, limited to prevent the bottom cells from becoming too thin.
  3. GridFittedBoundary, which fits a three-dimensional mask to the grid.

To build an ImmersedBoundaryGrid, we start by building one of the three underlying grids, and then embedding a boundary into that underlying grid.

using Oceananigans.Units

grid = RectilinearGrid(topology = (Bounded, Bounded, Bounded),
                       size = (20, 20, 20),
                       x = (-5kilometers, 5kilometers),
                       y = (-5kilometers, 5kilometers),
                       z = (0, 1kilometer))

# Height and width
H = 100meters
W = 1kilometer

mountain(x, y) = H * exp(-(x^2 + y^2) / 2W^2)
mountain_grid = ImmersedBoundaryGrid(grid, GridFittedBottom(mountain))

# output
20×20×20 ImmersedBoundaryGrid{Float64, Bounded, Bounded, Bounded} on CPU with 3×3×3 halo:
├── immersed_boundary: GridFittedBottom(mean(z)=6.28318, min(z)=1.58939e-8, max(z)=93.9413)
├── underlying_grid: 20×20×20 RectilinearGrid{Float64, Bounded, Bounded, Bounded} on CPU with 3×3×3 halo
├── Bounded  x ∈ [-5000.0, 5000.0] regularly spaced with Δx=500.0
├── Bounded  y ∈ [-5000.0, 5000.0] regularly spaced with Δy=500.0
└── Bounded  z ∈ [0.0, 1000.0]     regularly spaced with Δz=50.0

Yep, that's a Gaussian mountain:

using CairoMakie

h = mountain_grid.immersed_boundary.bottom_height

fig = Figure(size=(600, 600))
ax = Axis(fig[2, 1], xlabel="x (m)", ylabel="y (m)", aspect=1)
hm = heatmap!(ax, h)
Colorbar(fig[1, 1], hm, vertical=false, label="Bottom height (m)")

current_figure()

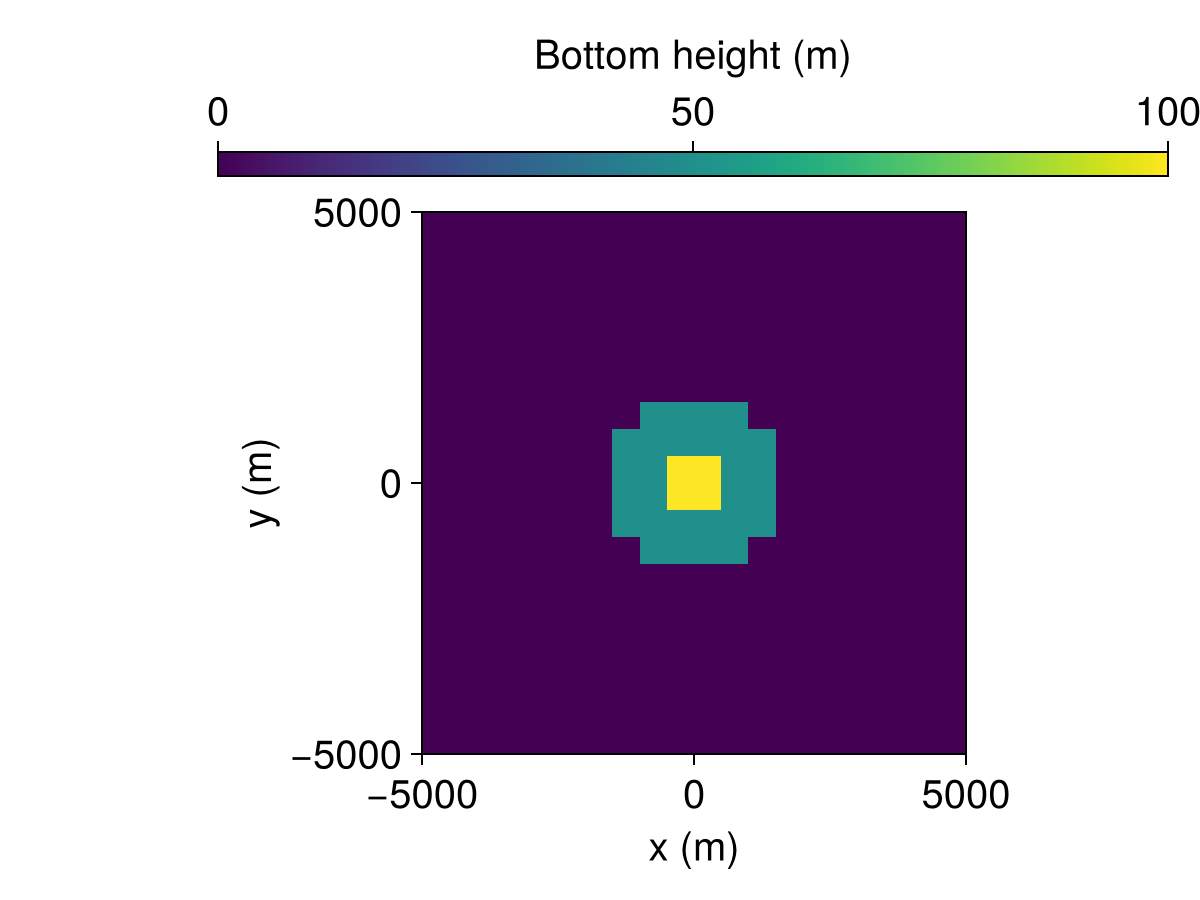

Example block output

Once more with feeling

In summary, making a grid requires

  • The machine architecture, or whether data is stored on the CPU, GPU, or distributed across multiple devices or nodes.
  • Information about the domain geometry. Domains can take a variety of shapes, including
    • lines (one-dimensional),
    • rectangles (two-dimensional),
    • boxes (three-dimensional),
    • sectors of a thin spherical shells (two- or three-dimensional).
    Irregular domains – such as domains that include bathymetry or topography – are represented by using a masking technique to "immerse" an irregular boundary within an "underlying" regular grid. Part of specifying the shape of the domain also requires specifying the nature of each dimension, which may be
    • Periodic, which means that the dimension circles back onto itself: information leaving the left side of the domain re-enters on the right.
    • Bounded, which means that the two sides of the dimension are either impenetrable (solid walls), or "open", representing a specified external state.
    • Flat, which means nothing can vary in that dimension, reducing the overall dimensionality of the grid.
  • Defining the number of cells that divide each dimension. The number of cells, with or without explicit specification of the cell interfaces, determines the spatial resolution of the grid.
  • The representation of floating point numbers, which can be single-precision (Float32) or double precision (Float64).

Let's dive into each of these options in more detail.

Specifying the machine architecture

The positional argument CPU() or GPU(), specifies the "architecture" of the simulation. By using architecture = GPU(), any fields constructed on grid store their data on an Nvidia GPU, if one is available. By default, the grid will be constructed on the CPU if this argument is omitted. So, for example,

grid     = RectilinearGrid(size=3, z=(0, 1), topology=(Flat, Flat, Bounded))
cpu_grid = RectilinearGrid(CPU(), size=3, z=(0, 1), topology=(Flat, Flat, Bounded))

grid == cpu_grid

# output
true

To use more than one CPU, we use the Distributed architecture,

child_architecture = CPU()
architecture = Distributed(child_architecture)

# output
[ Info: MPI has not been initialized, so we are calling MPI.Init().
Distributed{CPU} across 1 rank:
├── local_rank: 0 of 0-0
└── local_index: [1, 1, 1]

which allows us to distributed computations across either CPUs or GPUs. In this case, we didn't launch julia on multiple nodes using MPI, so we're only "distributed" across 1 node. <!– For more, see Distributed grids. –> More details on Distributed grids in a separate section.

Specifying the topology for each dimension

The keyword argument topology determines if the grid is one-, two-, or three-dimensional (the current case), and additionally specifies the nature of each dimension. topology is always a Tuple with three elements (a 3-Tuple). For RectilinearGrid, the three elements correspond to $(x, y, z)$ and indicate whether the respective direction is Periodic, Bounded, or Flat. A few more examples are,

topology = (Periodic, Periodic, Periodic) # triply periodic
topology = (Periodic, Periodic, Bounded)  # periodic in x, y, bounded in z
topology = (Periodic, Bounded, Bounded)   # periodic in x, but bounded in y, z (a "channel")
topology = (Bounded, Bounded, Bounded)    # bounded in x, y, z (a closed box)
topology = (Periodic, Periodic, Flat)     # two-dimensional, doubly-periodic in x, y (a torus)
topology = (Periodic, Flat, Flat)         # one-dimensional, periodic in x (a line)
topology = (Flat, Flat, Bounded)          # one-dimensional and bounded in z (a single column)

Specifying the size of the grid

The size is a Tuple that specifes the number of grid points in each direction. The number of tuple elements corresponds to the number of dimensions that are not Flat.

The halo size

An additional keyword argument halo allows us to set the number of "halo cells" that surround the core "interior" grid. The default is 3 for each non-flat coordinate. But we can change the halo size, for example,

big_halo_grid = RectilinearGrid(topology = (Periodic, Periodic, Flat),
                                size = (32, 16),
                                halo = (7, 7),
                                x = (0, 2π),
                                y = (0, π))

# output
32×16×1 RectilinearGrid{Float64, Periodic, Periodic, Flat} on CPU with 7×7×0 halo
├── Periodic x ∈ [-6.90805e-17, 6.28319) regularly spaced with Δx=0.19635
├── Periodic y ∈ [-1.07194e-16, 3.14159) regularly spaced with Δy=0.19635
└── Flat z

The halo size has to be set for certain advection schemes that require more halo points than the default 3 in every direction. Note that both size and halo are 2-Tuples, rather than the 3-Tuple that would be required for a three-dimensional grid, or the single number that would be used for a one-dimensional grid.

The dimensions: x, y, z for RectilinearGrid, or latitude, longitude, z for LatitudeLongitudeGrid

These keyword arguments specify the extent and location of the finite volume cells that divide up the three dimensions of the grid. For RectilinearGrid, the dimensions are called x, y, and z, whereas for LatitudeLongitudeGrid the dimensions are called latitude, longitude, and z. The type of each keyword argument determines how the dimension is divided up:

  • Tuples that specify only the end points indicate that the dimension should be divided into equally-spaced cells. For example, x = (0, 64) with size = (16, 8, 4) means that the x-dimension is divided into 16 cells, where the first or leftmost cell interface is located at x = 0 and the last or rightmost cell interface is located at x = 64. The width of each cell is Δx=4.0.
  • Vectors and functions alternatively give the location of each cell interface, and thereby may be used to build grids that are divided into cells of varying width.

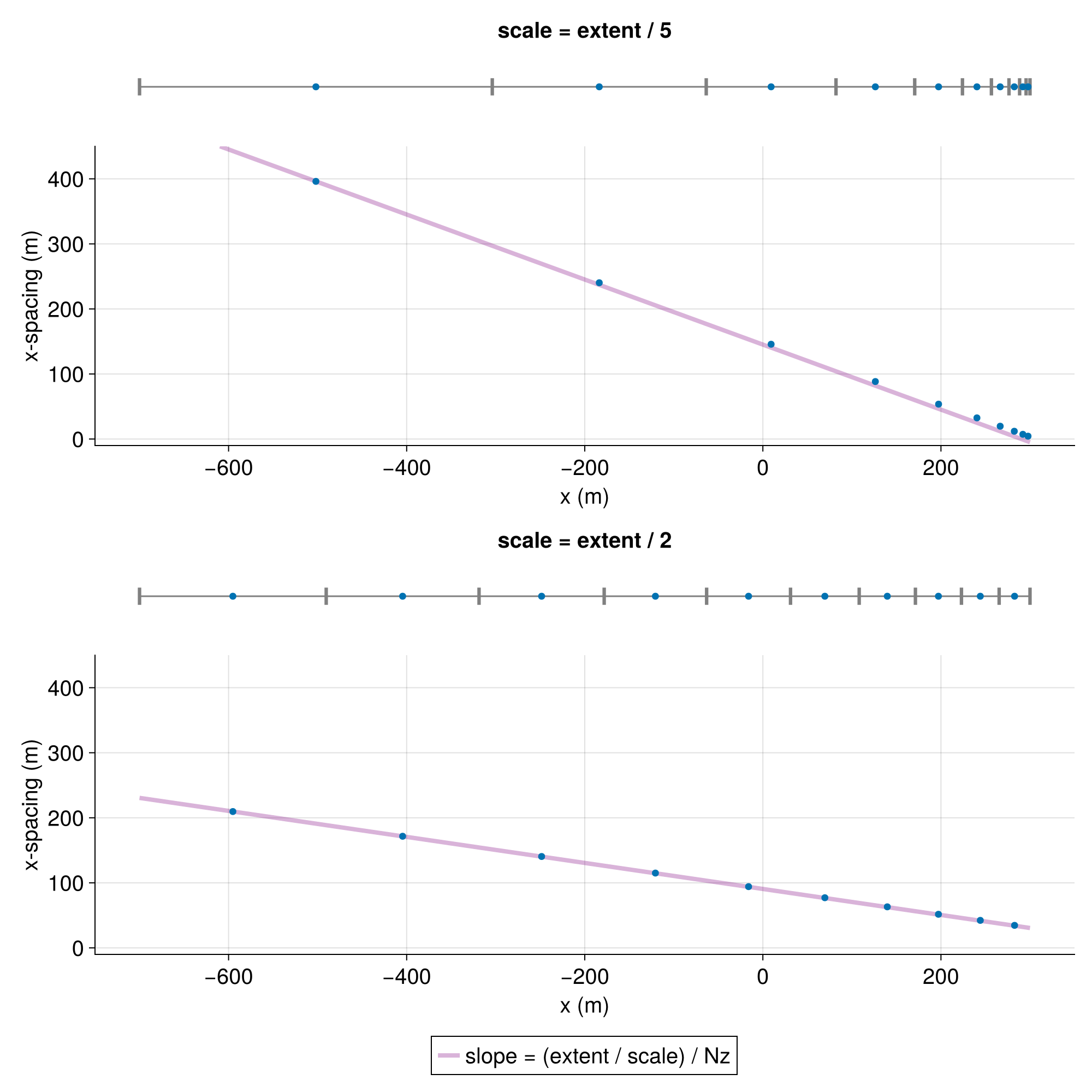

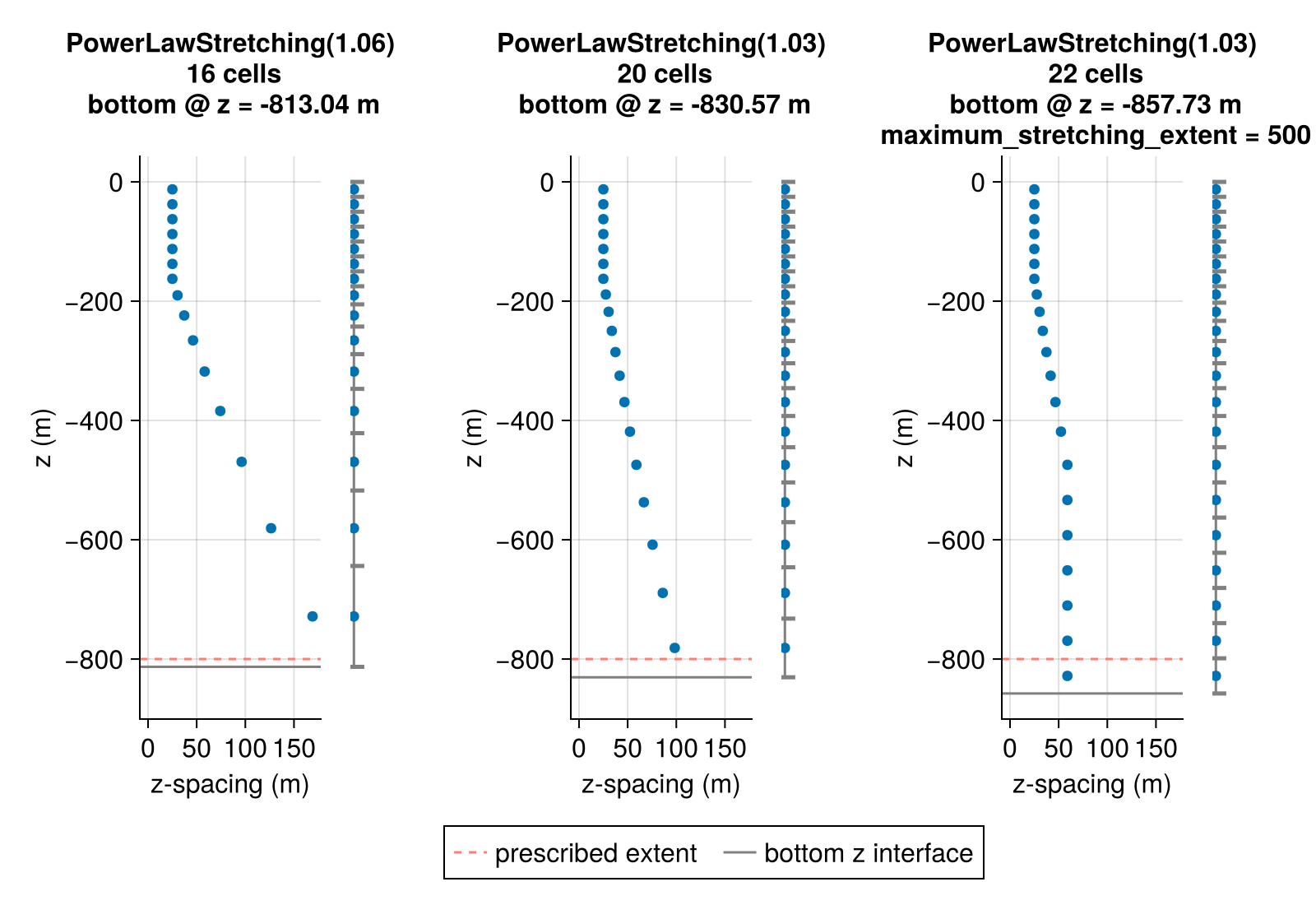

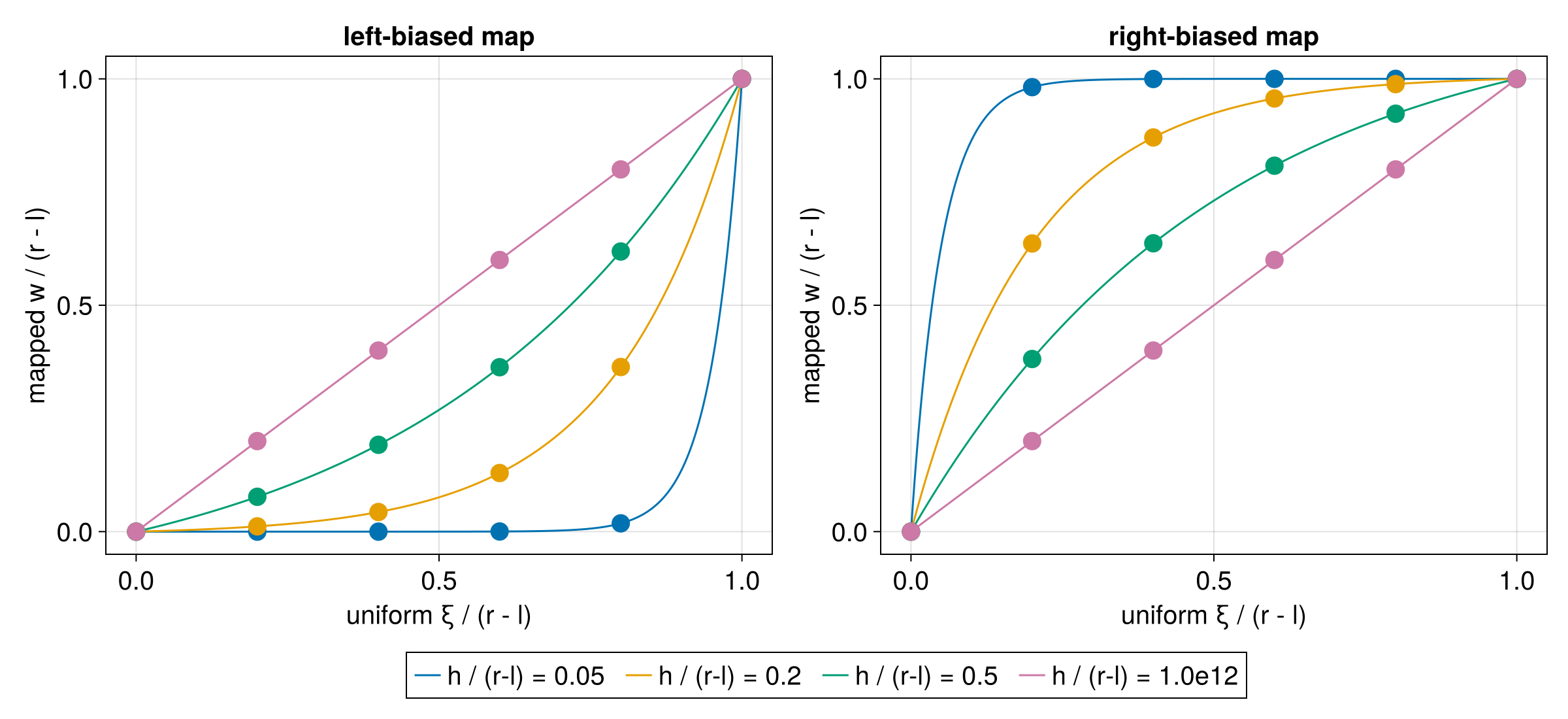

A complicated example: three-dimensional RectilinearGrid with variable spacing via functions

Next we build a grid that is both Bounded and stretched in both the y and z directions. The purpose of the stretching is to increase grid resolution near the boundaries. We'll do this by using functions to specify the keyword arguments y and z.

Nx = Ny = 64
Nz = 32

Lx = Ly = 1e4
Lz = 1e3

# Note that j varies from 1 to Ny
chebychev_spaced_y_faces(j) = Ly * (1 - cos(π * (j - 1) / Ny)) / 2

# Note that k varies from 1 to Nz
chebychev_spaced_z_faces(k) = - Lz * (1 + cos(π * (k - 1) / Nz)) / 2

grid = RectilinearGrid(size = (Nx, Ny, Nz),
                       topology = (Periodic, Bounded, Bounded),
                       x = (0, Lx),
                       y = chebychev_spaced_y_faces,
                       z = chebychev_spaced_z_faces)

# output
64×64×32 RectilinearGrid{Float64, Periodic, Bounded, Bounded} on CPU with 3×3×3 halo
├── Periodic x ∈ [0.0, 10000.0)  regularly spaced with Δx=156.25
├── Bounded  y ∈ [0.0, 10000.0]  variably spaced with min(Δy)=6.02272, max(Δy)=245.338
└── Bounded  z ∈ [-1000.0, -0.0] variably spaced with min(Δz)=2.40764, max(Δz)=49.0086

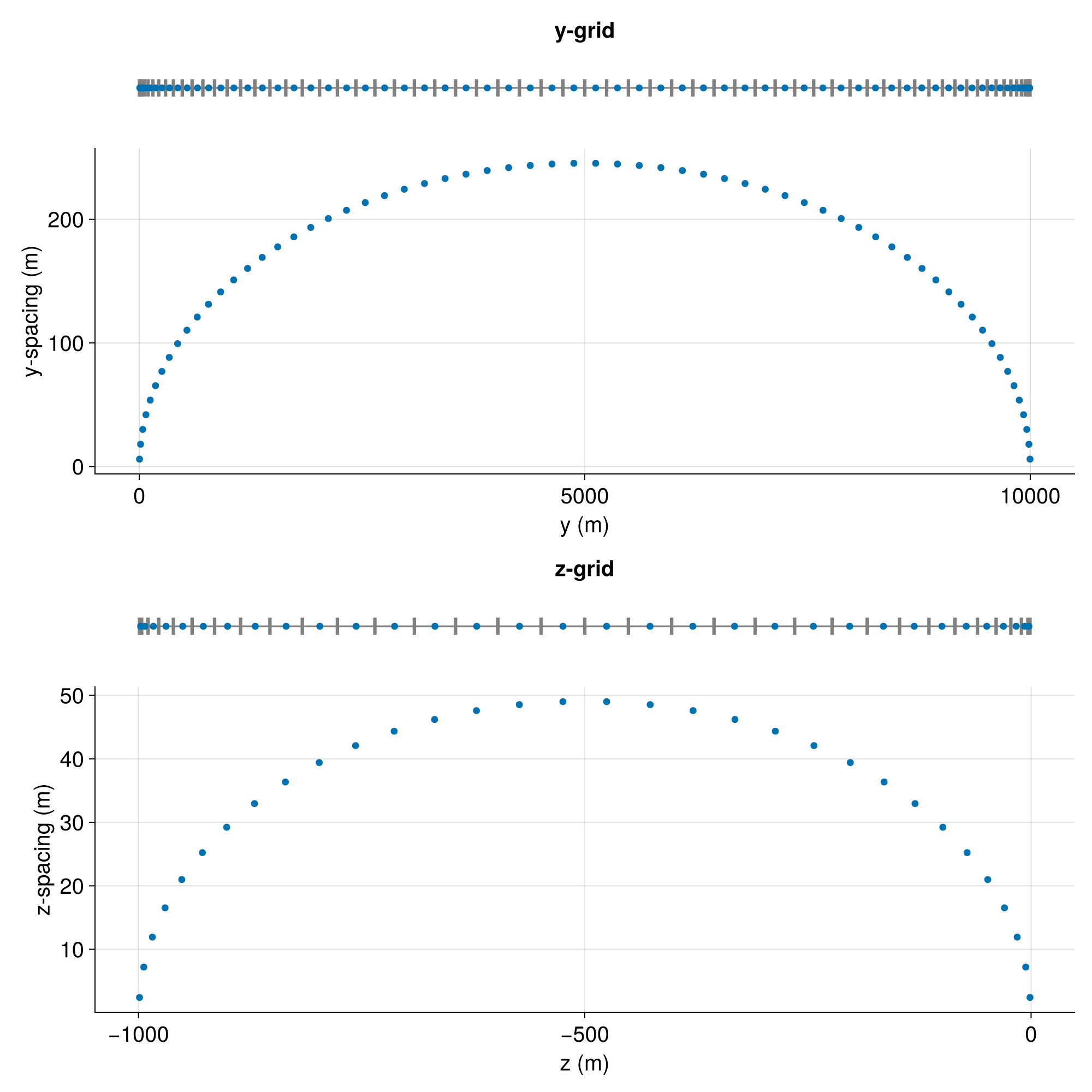

We can easily visualize the spacings of $y$ and $z$ directions. We can use, e.g., ynodes and yspacings to extract the positions and spacings of the nodes from the grid.

yc = ynodes(grid, Center())
zc = znodes(grid, Center())

yf = ynodes(grid, Face())
zf = znodes(grid, Face())

Δy = yspacings(grid, Center())
Δz = zspacings(grid, Center())

using CairoMakie

fig = Figure(size=(1200, 1200))

axy = Axis(fig[1, 1], title="y-grid")
lines!(axy, [0, Ly], [0, 0], color=:gray)
scatter!(axy, yf, 0 * yf, marker=:vline, color=:gray, markersize=20)
scatter!(axy, yc, 0 * yc)
hidedecorations!(axy)
hidespines!(axy)

axΔy = Axis(fig[2, 1]; xlabel = "y (m)", ylabel = "y-spacing (m)")
scatter!(axΔy, yc, Δy)
hidespines!(axΔy, :t, :r)

axz = Axis(fig[3, 1], title="z-grid")
lines!(axz, [-Lz, 0], [0, 0], color=:gray)
scatter!(axz, zf, 0 * zf, marker=:vline, color=:gray, markersize=20)
scatter!(axz, zc, 0 * zc)
hidedecorations!(axz)
hidespines!(axz)

axΔz = Axis(fig[4, 1]; xlabel = "z (m)", ylabel = "z-spacing (m)")
scatter!(axΔz, zc, Δz)
hidespines!(axΔz, :t, :r)

rowsize!(fig.layout, 1, Relative(0.1))
rowsize!(fig.layout, 3, Relative(0.1))

current_figure()
Example block output

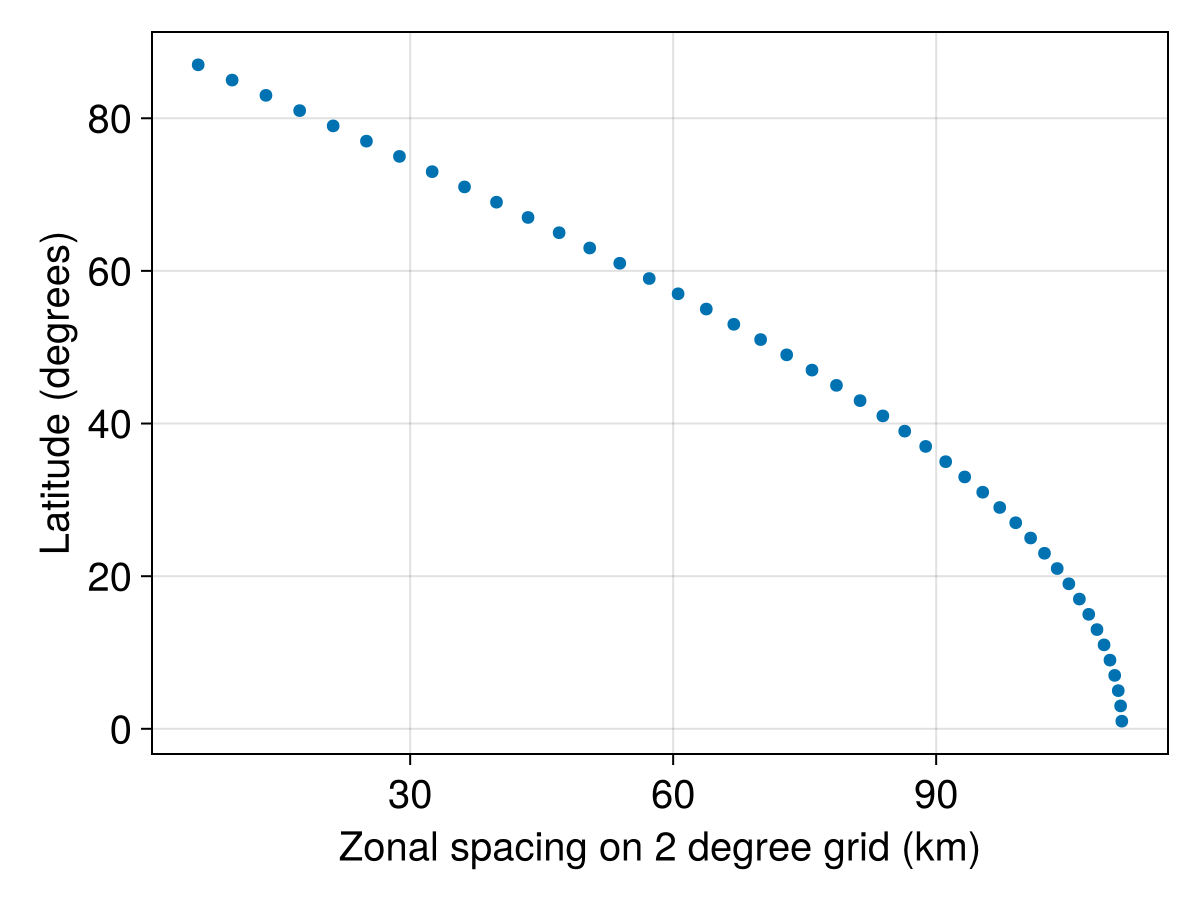

Inspecting LatitudeLongitudeGrid cell spacings

grid = LatitudeLongitudeGrid(size = (1, 44),
                             longitude = (0, 1),
                             latitude = (0, 88),
                             topology = (Bounded, Bounded, Flat))

φ = φnodes(grid, Center())
Δx = xspacings(grid, Center(), Center())

using CairoMakie

fig = Figure(size=(600, 400))
ax = Axis(fig[1, 1], xlabel="Zonal spacing on 2 degree grid (km)", ylabel="Latitude (degrees)")
scatter!(ax, Δx ./ 1e3, φ)

current_figure()
Example block output

LatitudeLongitudeGrid with variable spacing

The syntax for building a grid with variably-spaced cells is the same as for RectilinearGrid. In our next example, we use a function to build a Mercator grid with a spacing of 2 degrees at the equator,

# Mercator scale factor
scale_factor(φ) = 1 / cosd(φ)

# Compute cell interfaces with Mercator spacing
m = 2 # spacing at the equator in degrees
function latitude_faces(j)
    if j == 1 # equator
        return 0
    else # crudely estimate the location of the jth face
        φ₋ = latitude_faces(j-1)
        φ′ = φ₋ + m * scale_factor(φ₋) / 2
        return φ₋ + m * scale_factor(φ′)
    end
end

Lx = 360
Nx = Int(Lx / m)
Ny = findfirst(latitude_faces.(1:Nx) .> 90) - 2

grid = LatitudeLongitudeGrid(size = (Nx, Ny),
                             longitude = (0, Lx),
                             latitude = latitude_faces,
                             topology = (Bounded, Bounded, Flat))

# output
180×28×1 LatitudeLongitudeGrid{Float64, Bounded, Bounded, Flat} on CPU with 3×3×0 halo and with precomputed metrics
├── longitude: Bounded  λ ∈ [0.0, 360.0]   regularly spaced with Δλ=2.0
├── latitude:  Bounded  φ ∈ [0.0, 77.2679] variably spaced with min(Δφ)=2.0003, max(Δφ)=6.95319
└── z:         Flat z

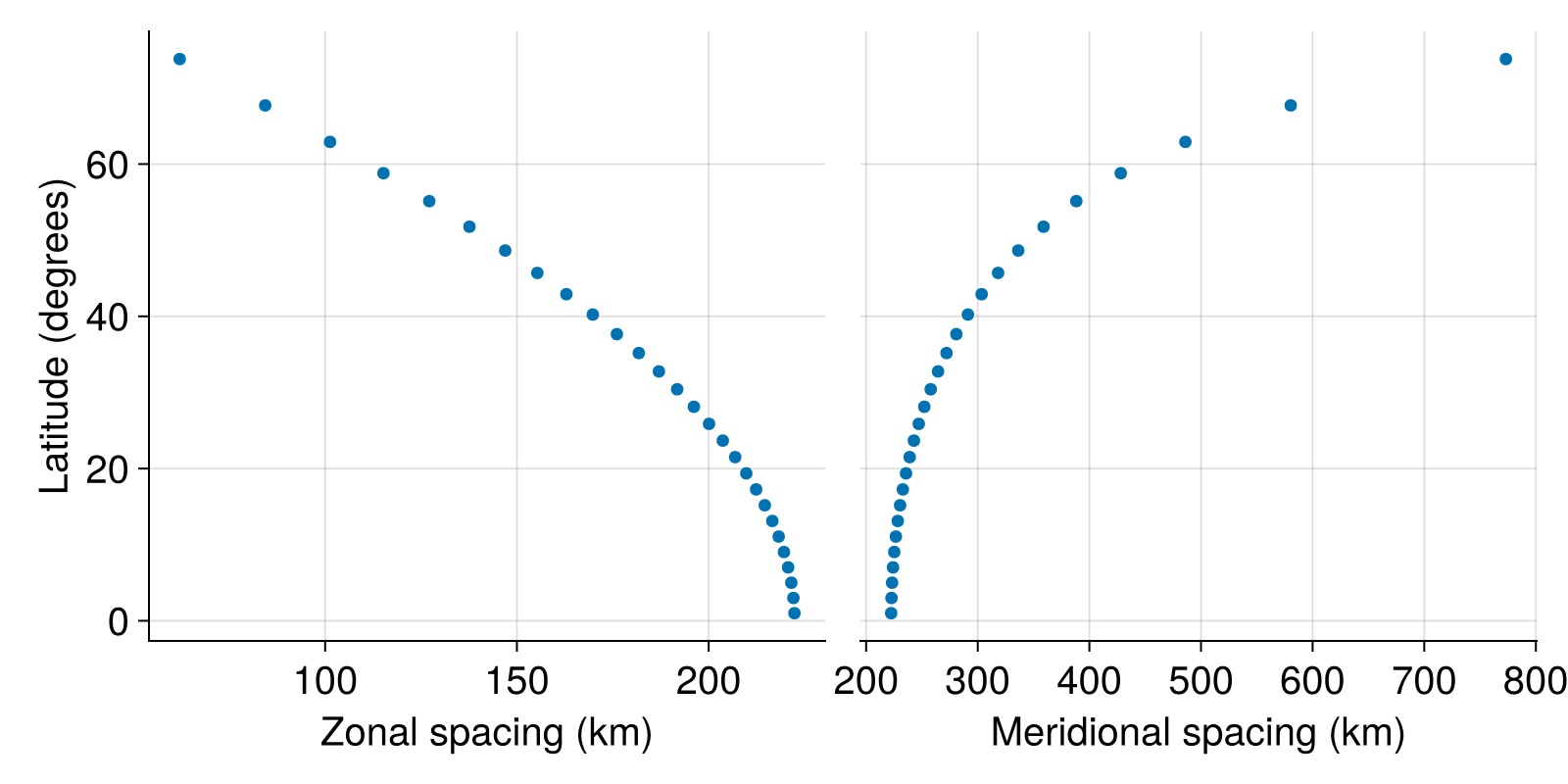

We've also illustrated the construction of a grid that is Flat in the vertical direction. Now let's plot the metrics for this grid,

φ = φnodes(grid, Center())
Δx = xspacings(grid, Center(), Center(), with_halos=true)[1:Ny]
Δy = yspacings(grid, Center())[1:Ny]

using CairoMakie

fig = Figure(size=(800, 400), title="Spacings on a Mercator grid")
axx = Axis(fig[1, 1], xlabel="Zonal spacing (km)", ylabel="Latitude (degrees)")
scatter!(axx, Δx ./ 1e3, φ)

axy = Axis(fig[1, 2], xlabel="Meridional spacing (km)")
scatter!(axy, Δy ./ 1e3, φ)

hidespines!(axx, :t, :r)
hidespines!(axy, :t, :l, :r)
hideydecorations!(axy, grid=false)

current_figure()
Example block output

Single-precision RectilinearGrid

To build a grid whose fields are represented with single-precision floating point values, we specify the float_type argument along with the (optional) architecture argument,

architecture = CPU()
float_type = Float32

grid = RectilinearGrid(architecture, float_type,
                       topology = (Periodic, Periodic, Bounded),
                       size = (16, 8, 4),
                       x = (0, 64),
                       y = (0, 32),
                       z = (0, 8))

# output
16×8×4 RectilinearGrid{Float32, Periodic, Periodic, Bounded} on CPU with 3×3×3 halo
├── Periodic x ∈ [0.0, 64.0) regularly spaced with Δx=4.0
├── Periodic y ∈ [0.0, 32.0) regularly spaced with Δy=4.0
└── Bounded  z ∈ [0.0, 8.0]  regularly spaced with Δz=2.0
Using single precision

Single precision should be used with care. Users interested in performing single-precision simulations should get in touch via Discussions, and should subject their work to extensive testing and validation.

For more examples see RectilinearGrid and LatitudeLongitudeGrid.
